MTD008601

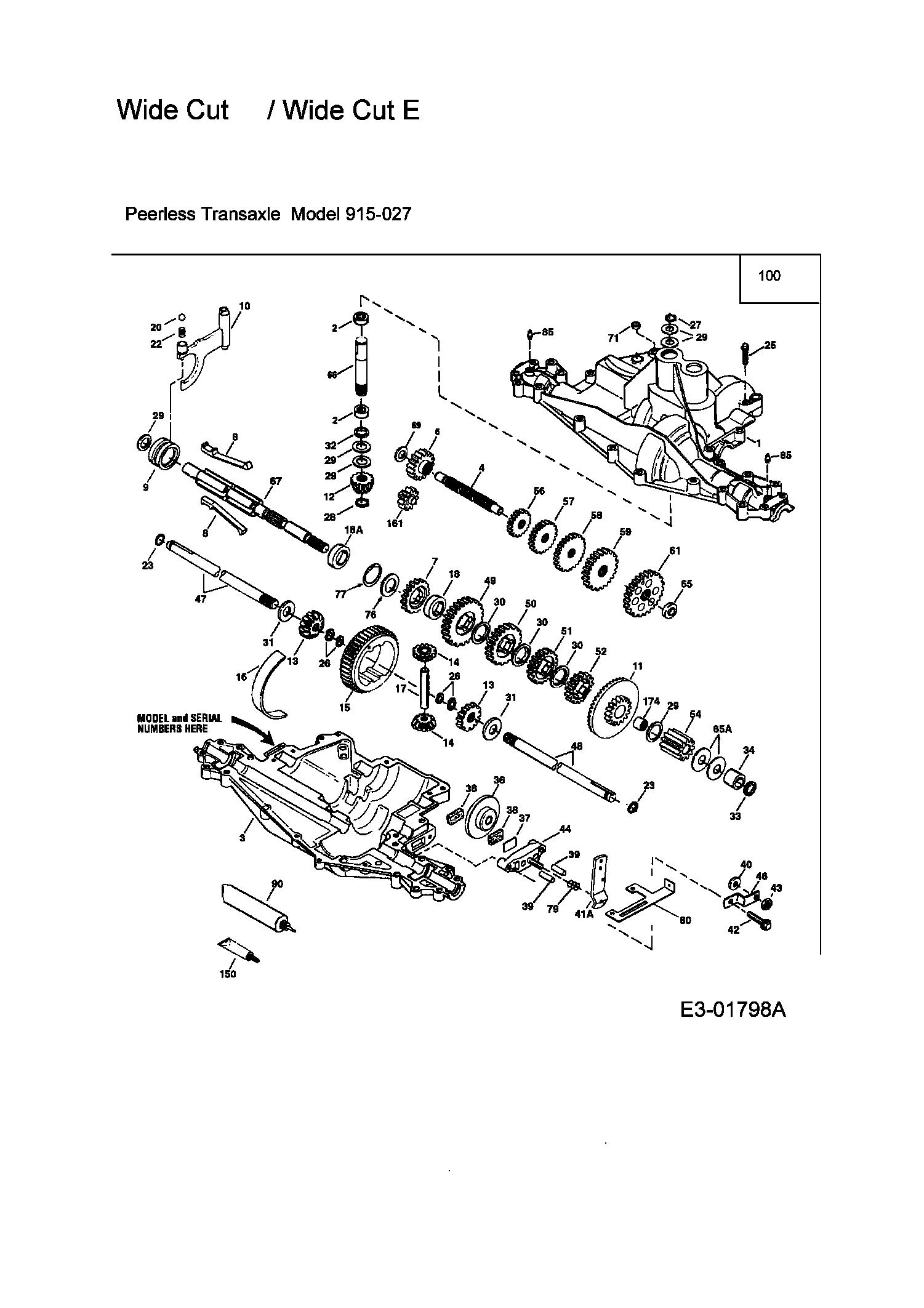

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	TC-772113	GETRIEBEGHÄUSEOBERTEIL	N/A	POA
001	TC-772135	GETRIEBEGHÄUSEOBERTEIL	N/A	POA
002	090.34.574	Needle bearing	£113.17	Add
003	TC-770110	GETRIEBEGHÄUSEUNTERTEIL	N/A	POA
004	TC-776300	LAYSHAFT	N/A	POA
006	092.31.248	SCHALTRAD (16 ZAEHNE)	N/A	POA
007	090.93.444	Spur gear, 22 teeth	£134.36	Add
008	092.31.249	ZIEHKEIL	£92.18	Add
009	TC-784373	DISCONNECT COLLAR	N/A	POA
010	092.31.250	Shifting lever	N/A	POA
011	092.31.251	TELERRAD (44/16 ZAEHNE)	N/A	POA
012	092.31.252	DRIVE PINION (14 TEETH)	N/A	POA
013	092.31.253	KEGELRAD M. INNENVERZ. (16 Z.)	£71.26	Add
014	090.93.469	Gear bevel pinion	£192.73	Add
015	092.31.089	Ring gear	£205.11	Add
016	092.31.254	LAGERSCHALE	£68.88	Add
017	092.31.090	AXLE-EDGER	N/A	POA
018	092.31.255	SLEEVE	N/A	POA
020	090.49.266	Ball steel	£23.33	Add
022	090.49.268	Spring	£17.87	Add
023	092.31.094	Ring seal	£13.44	Add
025	090.49.264	Screw	£17.18	Add
026	092.31.096	Ring retainer	£13.44	Add
027	090.34.633	Ring retainer	£18.36	Add
028	090.34.645	Ring retainer	£19.64	Add
029	090.34.629	Thrust washer	£19.64	Add
030	090.49.269	Thrust washer	£33.00	Add
031	090.34.590	Thrust washer	£9.89	Add
032	090.34.608	O-Ring	£29.18	Add
033	092.31.259	O'RING	N/A	POA
034	092.31.260	LAGER	£38.38	Add
036	092.31.262	BREMSSCHEIBE	£66.28	Add
037	090.49.891	Plate brake pad	£42.25	Add
038	717-0678	PAD	£12.86	Add
039	090.34.634	Dovel pin	£29.78	Add
040	092.31.235	SCHEIBE	£13.94	Add
041	092.31.102	LEVER, PARK BRAKE ENGAGEMENT	N/A	POA
042	090.49.264	Screw	£17.18	Add
043	090.49.895	Nut	£16.41	Add
044	090.49.892	Holder	£111.88	Add
046	092.31.119	Bracket brake	£50.80	Add
047	TC-774747	AXLE-EDGER	N/A	POA
048	092.31.264	ACHSE	£232.51	Add
049	090.93.443	Spur gear, 30 teeth	£150.63	Add
050	090.93.442	Spur gear, 25 teeth	£163.85	Add
051	090.93.444	Spur gear, 22 teeth	£134.36	Add
052	TC-778273	SCHALTRAD 19 ZAEHNE	N/A	POA
054	092.31.266	SCHALTRAD (11 ZAEHNE)	N/A	POA
056	090.49.251	Spur gear 20 teeht	£207.41	Add
057	090.93.440	Spur gear, 25 teeth	£151.76	Add
058	090.93.445	Spur gear, 28 teeth	£114.88	Add
059	090.93.441	Spur gear, 30 teeth	£98.40	Add
061	092.31.268	SCHALTRAD (34 ZAEHNE)	N/A	POA
065	092.31.269	washer	N/A	POA
066	092.31.271	ANTRIEBSWELLE	£85.28	Add
067	092.31.272	MAIN SHAFT	N/A	POA
069	TC-780161	washer	N/A	POA
071	092.31.120	SEAL	£10.32	Add
076	092.31.258	Thrust washer	N/A	POA
077	092.31.273	USE 716-0115	N/A	POA
079	092.31.274	Spring	N/A	POA
080	TC-790063A	BRKT:BRAKE	N/A	POA
085	737-04006	FITTING-GREASE TC-792137	£22.95	Add
090	090.93.833	BENTONITE-FETT 1L.	£76.50	Add
100	GW-1769708	NO LONGER AVAILABLE	N/A	POA
150	TC-510334	SEALANT	N/A	POA
161	TC-776302	GEAR	N/A	POA
174	TC-780085	NEEDLE BEARING	N/A	POA
18A	TC-786159	SLEEVE	N/A	POA
65A	092.31.270	SCHEIBE	£4.85	Add
