MTD007675

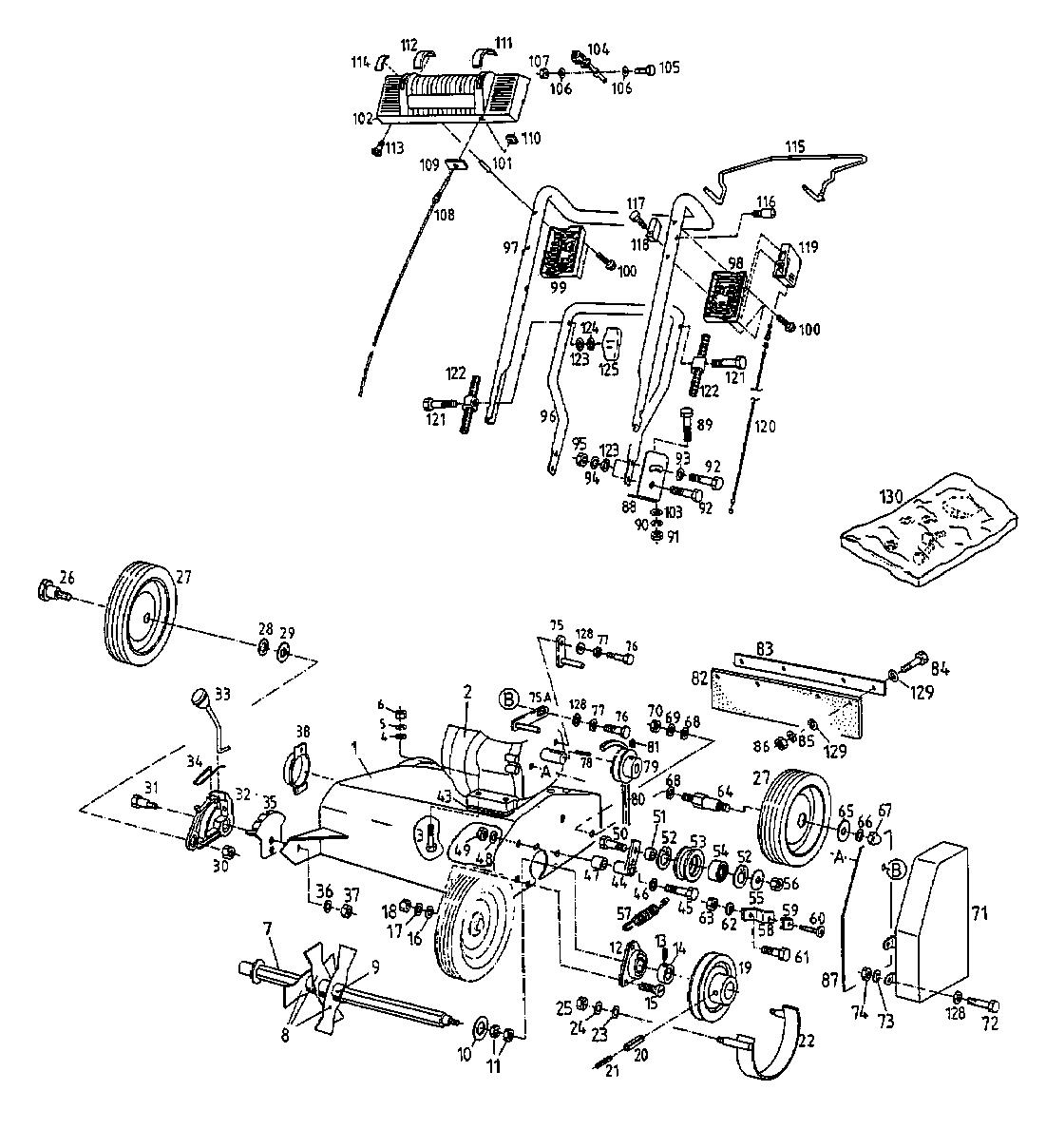

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	682-0272637	KEEPER-BELT 079.86.815	£66.17	Add
002	090.64.954	B&S ENGINE	N/A	POA
003	710-1764	SCREW:DIN 931-8.8:M10X70 21.1443.76	£4.36	Add
004	736-0700	FLAT WASHER	£2.63	Add
005	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
006	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
007	079.85.809	MAIN SHAFT	£143.09	Add
008	079.85.013	SCARRIFIER BLADE	£6.05	Add
009	079.85.014	SPACER	£19.28	Add
010	079.85.040	Spacer	£29.57	Add
011	24.1424.38	NUT	£16.28	Add
012	000.26.901	BEARING ASSY (RED)	£144.09	Add
013	23.4257.08	STUD	N/A	POA
014	000.26.809	Ring	N/A	POA
015	21.5441.43	Screw	£4.14	Add
016	736-0700	FLAT WASHER	£2.63	Add
017	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
018	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
019	079.85.016	PULLEY	£86.42	Add
020	25.3198.13	Pin	£3.66	Add
021	25.3197.06	Pin	£3.70	Add
022	079.85.805	Belt guide	£42.60	Add
023	736-0700	FLAT WASHER	£2.63	Add
024	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
025	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
027	079.30.972	WHEEL	£83.41	Add
028	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
029	000.20.623	FIXING	£4.76	Add
030	079.29.260	Nut	£10.49	Add
031	079.29.217	BOLT	£9.43	Add
032	079.29.697	Adusting part	£26.82	Add
033	079.30.875	Adjusting lever	£36.68	Add
034	000.30.307	NO LONGER AVAILABLE	N/A	POA
034	000.30.306	Spring right	£6.11	Add
035	079.29.222	ADJ PLATE	£11.22	Add
036	736-0700	FLAT WASHER	£2.63	Add
037	712-0692	HEX NUT	£3.10	Add
038	079.85.152	Protection cap	£18.46	Add
043	079.85.038	Shim	£9.82	Add
044	079.85.887	Lever assy.	£46.52	Add
045	21.1443.93	Screw	£4.14	Add
046	736-0702	WASHER	£2.40	Add
047	079.85.025	Bush	£26.15	Add
048	736-0686	NO LONGER AVAILABLE	N/A	POA
049	712-0635	NUT M10-8 DIN 934	£2.93	Add
050	21.1441.93	Screw	£4.11	Add
051	079.85.024	Spacer	£20.78	Add
052	28.3592.30	Circlip	£5.78	Add
053	079.85.023	IDLER PULLEY	£27.49	Add
054	26.1027.00	Ball bearing	£10.25	Add
055	24.6273.32	Shim	£3.59	Add
056	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
057	000.31.124	SPRING	£9.07	Add
058	079.85.336	SUPPORT	£10.03	Add
059	090.46.296	Clamp	£5.70	Add
060	22.6417.63	Screw	£3.76	Add
061	710-1376	CAP SCREW	£4.50	Add
062	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
063	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
064	079.85.331	BOLT	£23.89	Add
065	736-0692	Flat Washer, 3/8" 43070	£3.20	Add
066	24.8191.22	L-washer	£3.58	Add
067	24.3423.73	Nut	£5.76	Add
068	736-0707	WASH:FLAT:A 15 DIN 125	£3.85	Add
069	24.8195.62	Lock washer	N/A	POA
070	24.1421.28	Nut	£2.72	Add
071	682-0272637	KEEPER-BELT 079.86.815	£66.17	Add
072	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
073	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
074	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
075	079.85.815	NO LONGER AVAILABLE	N/A	POA
076	000.02.278	BOLT	£5.78	Add
077	04512-50080	NO LONGER AVAILABLE	N/A	POA
079	079.85.017	Pulley little	£80.14	Add
080	000.75.699	BELT	£20.09	Add
081	23.4454.31	Stud	£3.59	Add
082	079.85.037	Deflector	£54.73	Add
083	079.85.234	Strap	N/A	POA
084	710-1753	HEX. SCREW:DIN 933-8.8 M6x20mm	£2.70	Add
085	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
086	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add
087	079.85.233	Protection plate	£6.04	Add
088	079.06.364	HANDLE BRACKET	£16.91	Add
089	710-1376	CAP SCREW	£4.50	Add
090	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
091	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
092	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
093	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
094	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
095	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
096	079.06.438	HANDLE LOWER PART	£46.73	Add
097	079.06.409	HANDLE UPPER PART	£54.94	Add
098	079.06.074	Holder plate left	£17.63	Add
099	079.06.084	Holder plate right	£17.63	Add
100	710-1744	Screw 000.02.457	£3.20	Add
101	079.05.507	Bolt	£3.61	Add
102	079.06.097	Instrumental	£71.31	Add
103	736-0700	FLAT WASHER	£2.63	Add
104	079.06.842	GAS LEVER	£8.76	Add
105	710-1705	HEX. SCREW:M5X16:DIN 933 8.8	£4.00	Add
106	736-0661	WASHER A 5,3 DIN 9021	£3.85	Add
107	712-0675	NUT:HEX:M5 x.80:DIN 985	£4.25	Add
108	079.12.671	BOWDEN WIRE	£33.24	Add
109	079.11.357	Shim outside	£6.04	Add
110	079.11.355	Shim inside	£5.95	Add
111	079.06.884	Indicator assy.	£12.15	Add
112	079.06.167	Indicator	£11.32	Add
113	000.02.481	PT-Screw	£3.94	Add
115	079.06.721	HOLDER ASSY.	£64.95	Add
116	079.05.580	Bolt	£10.32	Add
117	000.02.477	Screw	£3.49	Add
118	079.05.579	Adjustable stop	£9.80	Add
119	079.05.491	Counter support	£10.99	Add
120	079.19.708	CLUTCH CABLE	£48.52	Add
121	21.1443.80	Screw	£5.78	Add
122	079.05.304	CABLE PROTECTION	£7.13	Add
123	736-0700	FLAT WASHER	£2.63	Add
124	736-0689	L-WASHER	£3.26	Add
125	720-0368	WING NUT	£5.19	Add
128	736-0700	FLAT WASHER	£2.63	Add
129	736-0668	WASHER	£2.23	Add
130	000.45.654	SPRING LOCK WASHER/DIA 8	£3.49	Add
75A	079.85.816	Belt spanner	£15.40	Add
