MTD014559

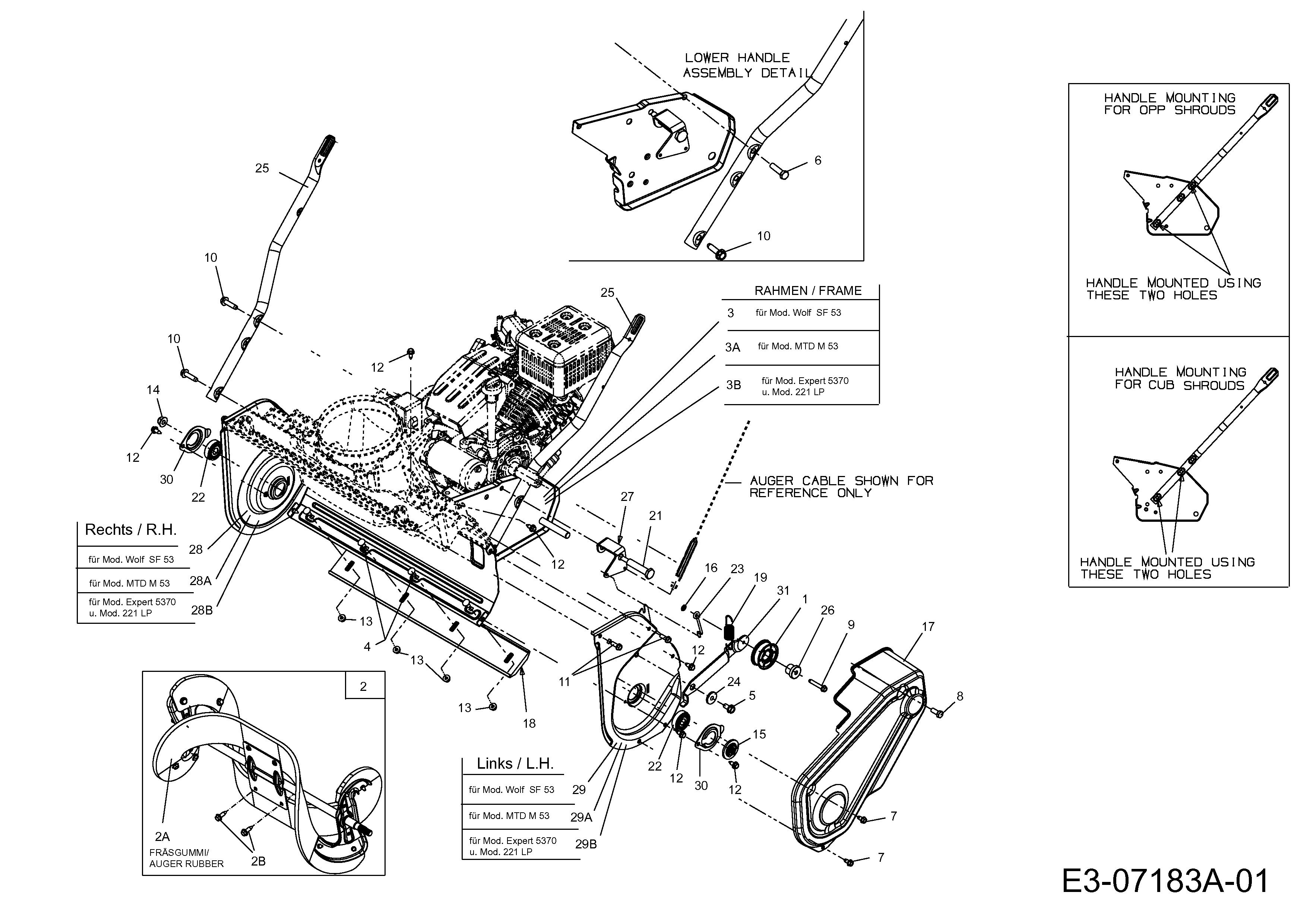

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD014559

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 684-04168 PULLEY-IDLER-FLAT £30.72 Add
002 684-04393 AUGER COMPL. 21" £198.28 Add
003 684-04398-WR FRAME WOLF RED N/A POA
004 710-0134 BOLT £3.03 Add
005 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
006 710-05183 SCREW HEX 5/16-24X1.25 £14.89 Add
007 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
008 710-0627 HEX SCREW £3.32 Add
009 710-0778 HEX WASHER HEAD SCREW £3.20 Add
010 710-0817 SCR:TT:5/16-18:1.250:HXINDWSH £4.52 Add
011 710-0895 SCR:HL:1/4-10:0.750:HXINDWSH £3.51 Add
012 710-1652 SCR:TT:1/4-20 x.625:HXINDWH £4.25 Add
013 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
014 712-04065 NUT £4.02 Add
015 718-04836 HUB PULLEY SPLINE £15.39 Add
016 726-0233 NUT:PUSH:.25 ID X .50 OD £3.58 Add
017 731-07737A BELT COVER £46.82 Add
018 731-08171 SHAVE PLATE £56.77 Add
019 732-04748 SPRING EXTENSION £21.34 Add
021 738-04456 BOLT SHOULDER £9.68 Add
022 741-04517 SELF-ALIGNING BEARING £26.06 Add
023 747-05360A SUPPORT WIRE DRIVE CABLE £9.89 Add
024 748-0234 SHOULDER SPACER £5.43 Add
025 749-04810 LOWER HANDLE £73.54 Add
026 750-04571 SPCR:SHLDR:.260 x .785 x .538 £6.91 Add
027 790-00426 BRACKET CLUTCH CABLE £21.95 Add
028 790-00444-WR PLATE AUGER RH WOLF RED N/A POA
029 790-00445-WR PLATE AUGER LH WOLF RED N/A POA
02A 735-04237 AUGER RUBBER £36.93 Add
02B 710-05058 SCREW 1/4-14X.75 £6.46 Add
030 790-00457 CUP AUGER HSG BEAR N/A POA
031 790-00461 IDLER BRACKET £21.63 Add
03A 684-04398638 FRAME MTD RED £197.45 Add
03B 684-04398691 FRAME BLACK JACK £222.40 Add
28A 790-00444638 PLATE AUGER RH MTD RED N/A POA
28B 790-00444691 PLATE AUGER RH BLACK JACK £92.99 Add
29A 790-00445638 PLATE AUGER LH MTD RED N/A POA
29B 790-00445691 PLATE AUGER LH BLACK JACK £92.99 Add
