MTD014632

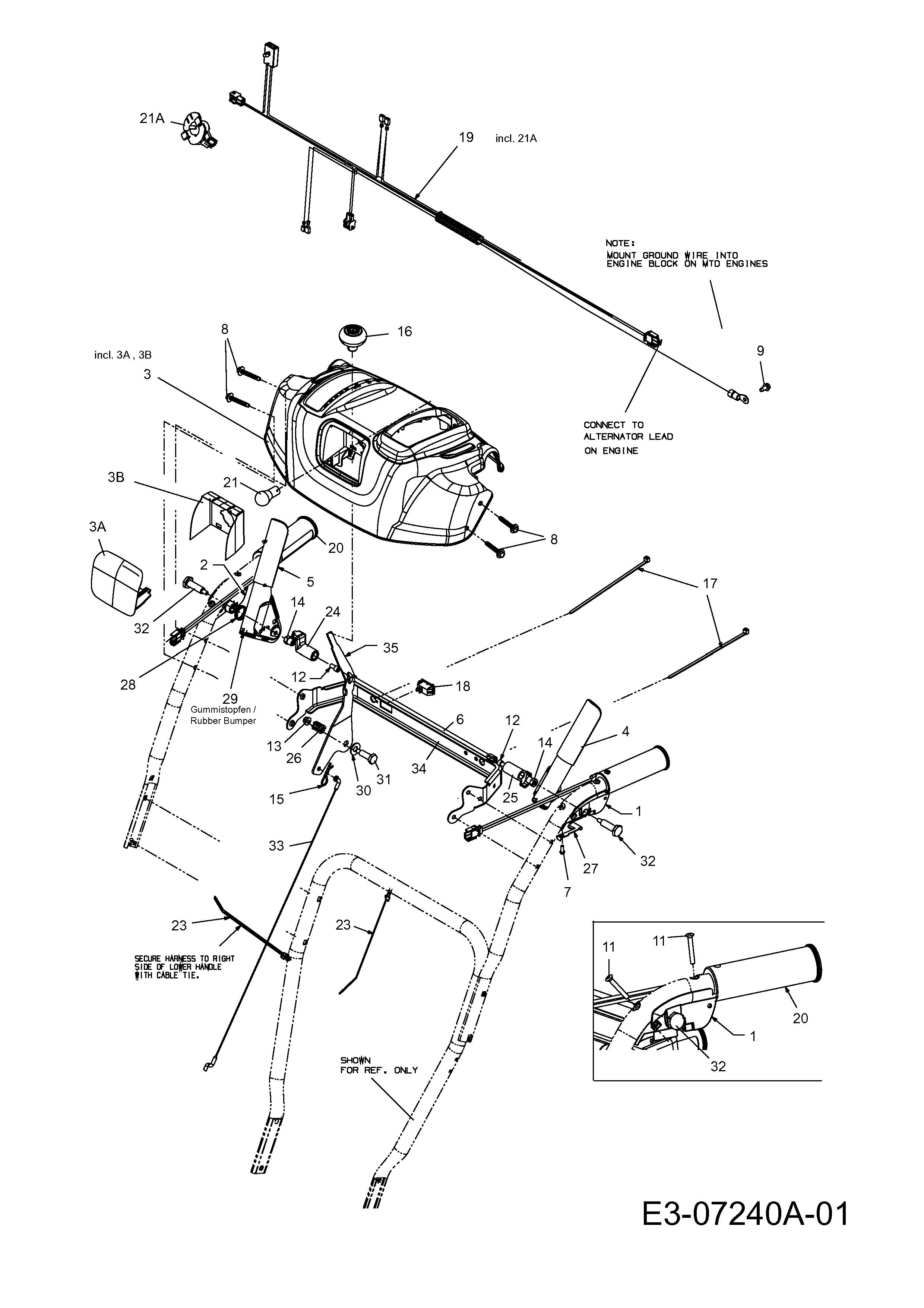

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD014632

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 631-04133A CLUTCH LOCK L.H. £36.75 Add
002 631-04134B CLUTCH LOCK R.H. £36.37 Add
003 631-04183 DASHBOARD, BLACK £92.15 Add
004 684-04105B HNDL ASM: ENGAGEMENT LEFT HAND £22.51 Add
005 684-04106B HANDLE ASM: ENGAGE RIGHT HAND £24.80 Add
006 684-04250 ROD ASSEMBLY £31.33 Add
007 710-04326 SCR:PLASTITE:#8-16 x.50 £4.80 Add
008 710-04586 NO LONGER AVAILABLE N/A POA
009 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
011 710-1233 SCR:MACH:#10-24:1.375:OVALCSK £6.32 Add
012 710-3069 SCR:SOCKET HD CAP 1/4-20x.50 £3.20 Add
013 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
014 712-04081A NUT:HEX:1/4-20:SHLDR £6.11 Add
015 714-0145 R CLIP £2.78 Add
016 720-04039 KNOB, SHIFT £7.13 Add
017 725-0157 NO LONGER AVAILABLE N/A POA
018 725-04393 SWITCH £11.34 Add
019 725-05148 HARNESS-HEATED GRIPS £99.99 Add
020 725-05149 HEATED GRIP £84.20 Add
021 725-05326 LAMP:#1156 SNOWTHROWER BULB £4.80 Add
023 726-0154 TIE:CABLE:PUSH MOUNT 7.5 LG £4.80 Add
024 731-04894D PLT:LOCK £15.46 Add
025 731-04896B CAM: CLUTCH LOCK £11.05 Add
026 732-0193 SPR:CMPRS:.39 x.60 x.88 LG £3.70 Add
027 732-04219C SPR:LOCK:CLU £10.42 Add
028 732-04238 SPRING:TORSION:0.8156IDx.3038 £4.62 Add
029 735-0199A BUMPER-RUBBER:.62 OD x.22 THK £8.74 Add
030 736-0267 WASH:FLAT:.385 x.87 x.06:HT £3.80 Add
031 738-04125 SCR:SHLD:.374 DIA x 1.05 LG £4.80 Add
032 738-04348 SCR:SHLDR:.437x 1.345:1/4-20 £9.23 Add
033 746-04396A CABLE-SPEED SELECTOR PANEL £31.23 Add
034 790-00248C BRACKET: PANEL N/A POA
035 790-00311A-S Traction handle N/A POA
03A 731-05320 LENS £36.51 Add
03B 777X41803 LABEL £19.48 Add
21A 725-1649 SOCKET HEADLIGHT £6.92 Add
