MTD017389

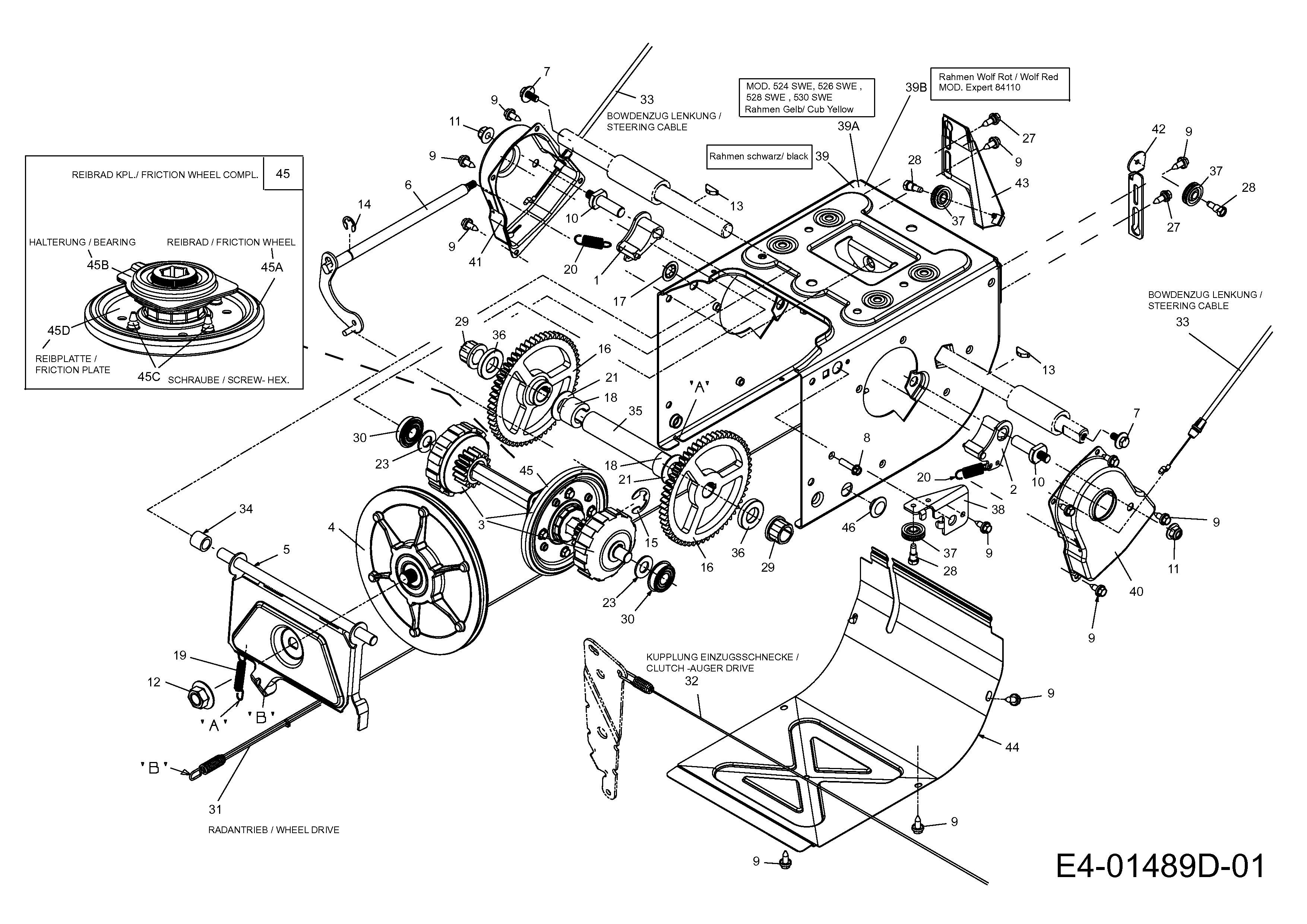

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-06987	DOGG ACTIVATOR RH	£27.88	Add
002	618-06988	DOGG ACTIVATOR LH	£27.88	Add
003	618-04322A	SHAFT ASM:HEX:FRICTION WHEEL	£292.86	Add
004	656-04055	DISC ASM:WHL:FRICTION	£67.82	Add
005	684-04154B	BRKT ASM:SUPT:FRCTN WHL	£48.02	Add
006	684-04156A	SHFT ASM:ROD S/T	£51.74	Add
007	710-05339	SCR:SEMS:5/16-24:.750:GR5	£5.66	Add
008	710-0788	NO LONGER AVAILABLE	N/A	POA
009	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
010	711-1268B	SHAFT ACTUATOR DR 500 S/T	£12.45	Add
011	712-04065	NUT	£4.02	Add
012	712-05134	BLADE NUT	£3.81	Add
013	714-0126	KEY-HI-PRO:3/16 x 3/4 DIA	£7.50	Add
014	716-0104	RETAINING RING 1650-001	£3.58	Add
015	716-0136	RING:RET:TYPE-E .875 DIA	£3.49	Add
016	717-04210	GEAR-56 TOOTH	£54.15	Add
017	726-0221	PUSH CAP	£3.51	Add
018	731-05297	SPACER: .76ID X .75 LG	£4.70	Add
019	732-0264	EXTENSION SPRING	£10.47	Add
020	732-04345	SPRING EXTENSION	£5.41	Add
021	736-0188	FI-WASHER	£6.15	Add
023	736-0626	WASH:FLAT:.58 x 1.125 x .08:HT	£19.28	Add
027	738-04184A	SCR:SHLDR:.368x.113:TT:1/4-20	£5.41	Add
028	738-0924A	SCR:SHLDR:.340x.355xC:1/4-28	£2.90	Add
029	741-0245	BRG:HEX FLANGE x.75 ID	£9.33	Add
030	741-04076	SELF-ALIGNING BEARING	£16.52	Add
031	746-05067	CABLE DRIVE WHEEL	£29.09	Add
032	746-04230A	CABEL:CLUTCH:AUGER: 47.40 LG	£31.68	Add
033	746-0956B	CABLE STEERING	£32.73	Add
034	748-0190	SPCR:.508 ID x.750 OD x.68	£4.00	Add
035	750-04474	TUBE:SUPT:AXLE	£28.02	Add
036	750-0767	DISTANCE BUSH	£5.10	Add
037	756-0625	cable idler wheel	£10.52	Add
038	790-00096A-S	GUIDE BRACKET, FRONT	£14.56	Add
039	790-00183B-S	FRAME ASM:500 S/T POWDER BLACK	N/A	POA
040	790-00185691	RET:SHF:DR/ACTR LH BLACK JACK	£43.30	Add
041	790-00186691	SHAFT RETAINER RH	£43.30	Add
042	790-00206A	BRKT:GDE:CBL:CLU:AUGER	£11.05	Add
043	790-00207B	BRKT:GDE:CBL:CLU:DRIVE	N/A	POA
044	790-00316637	COVER:FRM:S/T	£41.79	Add
045	684-04159	FRICTION WHEEL ASM 5.5 OD	£85.61	Add
046	735-04063A	PLUG:5/8: HOLE	£2.49	Add
39A	790-00183BCY	FRAME ASM:500 S/T CUB YELLOW	N/A	POA
45A	735-04054	WHEEL:FRICTION:5.5 OD	£27.80	Add
45B	618-0063A	FRICTION WHEEL BEARING	£98.42	Add
45C	710-0896	SCREW WITH WASHER ST	£4.97	Add
45D	790-00174	KNIFE GUIDE	£12.94	Add
