MTD016054

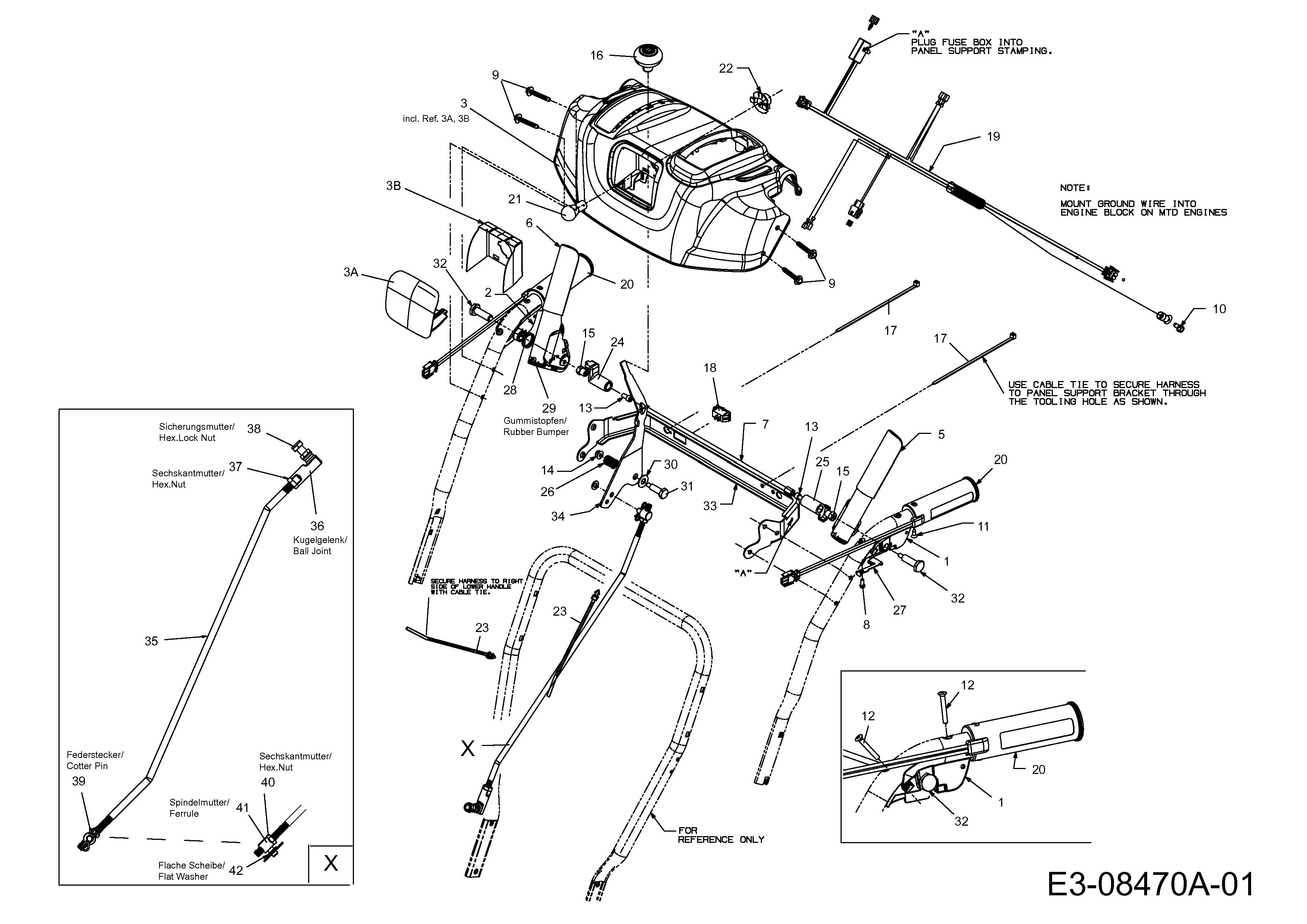

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	631-04133A	CLUTCH LOCK L.H.	£36.75	Add
002	631-04134B	CLUTCH LOCK R.H.	£36.37	Add
003	631-04183	DASHBOARD, BLACK	£92.15	Add
005	684-04105B	HNDL ASM: ENGAGEMENT LEFT HAND	£22.51	Add
006	684-04106C	684-04106C	£24.80	Add
007	684-04250	ROD ASSEMBLY	£31.33	Add
008	710-04326	SCR:PLASTITE:#8-16 x.50	£4.80	Add
009	710-04586	NO LONGER AVAILABLE	N/A	POA
010	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
011	710-0837	OVAL SUNK SCREW	£3.51	Add
012	710-1233	SCR:MACH:#10-24:1.375:OVALCSK	£6.32	Add
013	710-3069	SCR:SOCKET HD CAP 1/4-20x.50	£3.20	Add
014	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
015	712-04081A	NUT:HEX:1/4-20:SHLDR	£6.11	Add
016	720-04039	KNOB, SHIFT	£7.13	Add
017	725-0157	NO LONGER AVAILABLE	N/A	POA
018	725-04393	SWITCH	£11.34	Add
019	725-05148	HARNESS-HEATED GRIPS	£99.99	Add
020	725-05149	HEATED GRIP	£84.20	Add
021	725-05326	LAMP:#1156 SNOWTHROWER BULB	£4.80	Add
022	725-1649	SOCKET HEADLIGHT	£6.92	Add
023	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add
024	731-04894D	PLT:LOCK	£15.46	Add
025	731-04896B	CAM: CLUTCH LOCK	£11.05	Add
026	732-0193	SPR:CMPRS:.39 x.60 x.88 LG	£3.70	Add
027	732-04219C	SPR:LOCK:CLU	£10.42	Add
028	732-04238	SPRING:TORSION:0.8156IDx.3038	£4.62	Add
029	735-0199A	BUMPER-RUBBER:.62 OD x.22 THK	£8.74	Add
030	736-0267	WASH:FLAT:.385 x.87 x.06:HT	£3.80	Add
031	738-04125	SCR:SHLD:.374 DIA x 1.05 LG	£4.80	Add
032	738-04348	SCR:SHLDR:.437x 1.345:1/4-20	£9.23	Add
033	790-00248C	BRACKET: PANEL	N/A	POA
034	790-00311B-S	Traction handle	£29.33	Add
035	747-06190	ROD SHIFT	£27.23	Add
036	723-3018	BALL JOINT	£24.02	Add
037	712-0711	NUT	£3.07	Add
038	712-0116	HEX NUT	£3.96	Add
039	714-04040	PIN-COTTER	£4.38	Add
03A	731-05320	LENS	£36.51	Add
03B	777X41803	LABEL	£19.48	Add
040	712-3007	HEX JAM NUT	£3.07	Add
041	711-0677	FERRULE:5/16-18 x.312 DIA	£13.47	Add
042	736-3081	WASH:FLAT:.320 x .600 x.060:HT	£10.52	Add
