MTD013690

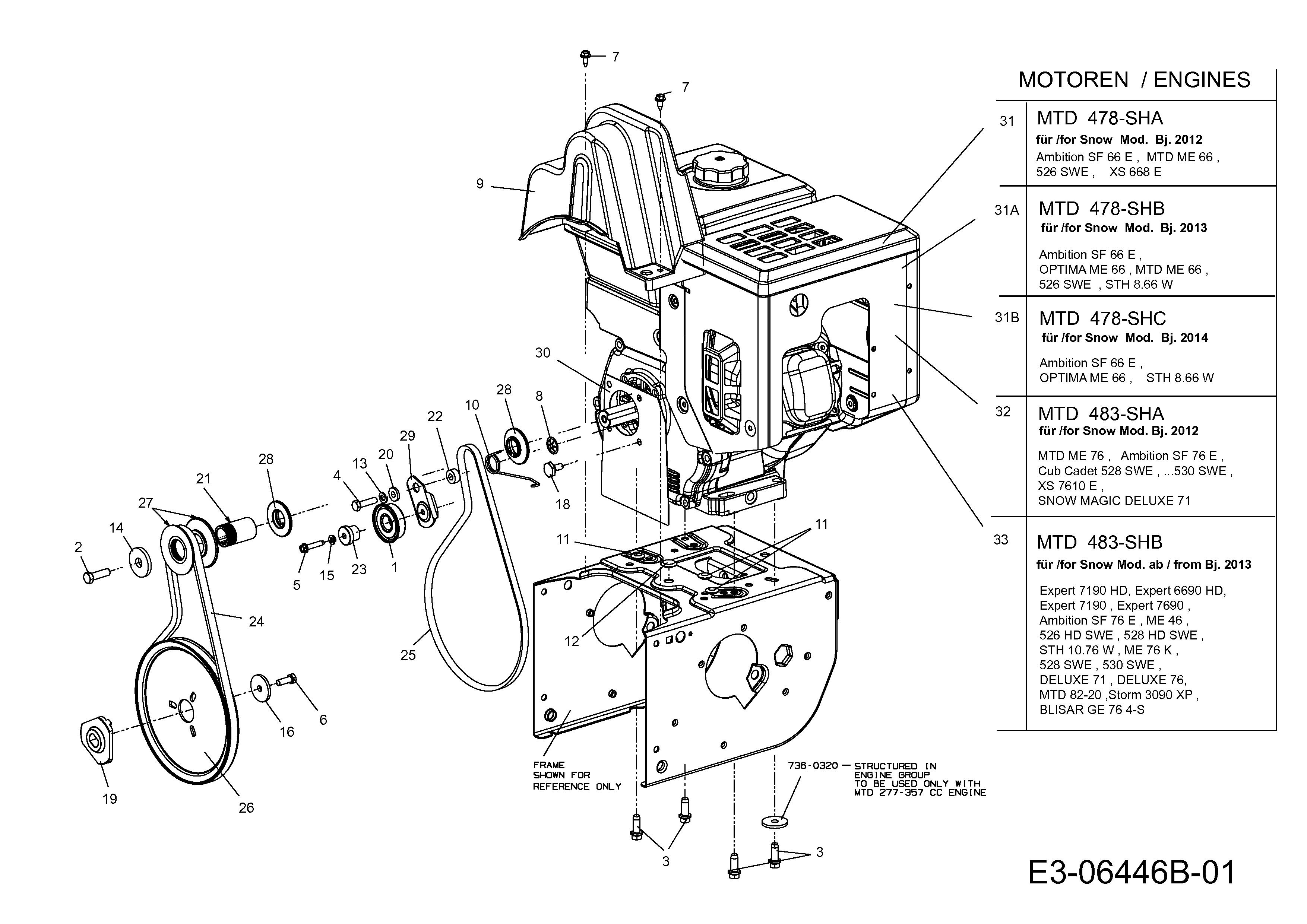

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	684-04169	PULLEY ASM:IDLER:1.917 OD	£35.00	Add
002	710-0191	HEX BOLT (RED)	£7.13	Add
003	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add
004	710-0672	HHCS:5/16-24:1.25:GR5:STD	£3.51	Add
005	710-0809	SCR:TT:1/4-20:1.250:HXINDWSH	£3.42	Add
006	710-1245	HEXAGONAL SCREW	£3.70	Add
007	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
008	726-04012	NUT:PUSH-ON:.25 DIA	£4.80	Add
009	731-06401	BELT PLAST COVER	£20.09	Add
010	732-04308A	TORSION SPRING	£6.80	Add
011	735-04099	PLUG:3/8 ID	£24.11	Add
012	735-04100	PLUG:1/2 ID	£24.11	Add
013	736-0119	LOCK WASHER 5/16	£3.33	Add
014	736-3082A	WASHER FLAT	£10.48	Add
015	736-0329	L. WASHER	£3.26	Add
016	736-0505	WASH:FLAT:.34 x 1.50 x .150:HT	£5.91	Add
018	738-04439	SCR:SHLDR:.500X.145:5/16-24	£5.10	Add
019	748-04053A	PUL:ADAP:.75 DIA w/DD	£38.88	Add
020	748-04112B	SPCR:SHLDR:.3175ID x.500 x.097	£7.37	Add
021	750-04303	SPCR:.875 ID x 1.185 OD	£14.56	Add
022	750-04477A	SPCR:.340X.750X.330 LG	£6.01	Add
023	750-04571	SPCR:SHLDR:.260 x .785 x .538	£6.91	Add
024	754-04195	BELT:.500 X 37.00 LG	£39.66	Add
025	754-04201A	BELT:V TYP:3/8 X 35.68"	£40.58	Add
026	756-04109	PUL:AUGR:8.1 x.5 BELT	£47.22	Add
027	756-04113	PUL:HALF:4L-V x 2.600 OD	£18.67	Add
028	756-04252	SHEAVE-PULLEY	£29.33	Add
029	790-00208C	BRKT:IDLR	£21.27	Add
030	790-00332637	PLT:COVER:MTD 357	£21.27	Add
031	752Z478-SHA	ENG 277 CC HS ES 3/5 SN EC	£907.41	Add
032	752Z483-SHA	MOTOR 357 HS ES	£920.78	Add
033	752Z483-SHB	ENG:ZONG:357CC HS ES 3/5 SN EC	£920.78	Add
31A	752Z478-SHB	ENG 277 CC HS ES 3/5 SN EC	£907.41	Add
31B	752Z478-SHC	ENG 277 CC HS ES 3/5 SN EC	£864.38	Add
