MTD016048

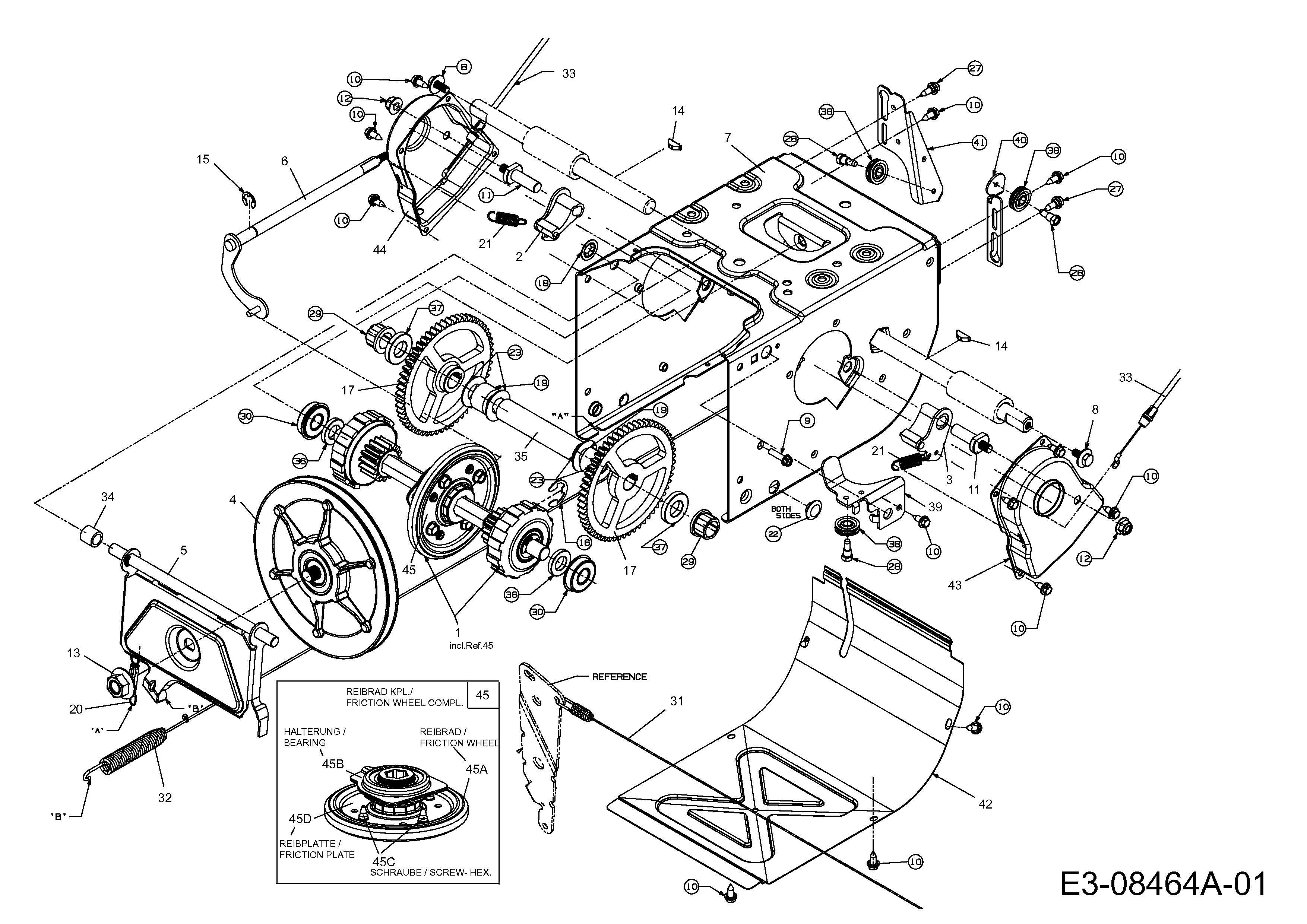

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-06072	SHAFT ASM FRICTION WHEEL	£345.48	Add
002	618-06987	DOGG ACTIVATOR RH	£27.88	Add
003	618-06988	DOGG ACTIVATOR LH	£27.88	Add
004	656-04055	DISC ASM:WHL:FRICTION	£67.82	Add
005	684-04154B	BRKT ASM:SUPT:FRCTN WHL	£48.02	Add
006	684-04156A	SHFT ASM:ROD S/T	£51.74	Add
007	684-05041	FRAME ASM DRIVE	N/A	POA
008	710-05339	SCR:SEMS:5/16-24:.750:GR5	£5.66	Add
009	710-0788	NO LONGER AVAILABLE	N/A	POA
010	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
011	711-1268B	SHAFT ACTUATOR DR 500 S/T	£12.45	Add
012	712-04065	NUT	£4.02	Add
013	712-05134	BLADE NUT	£3.81	Add
014	714-0126	KEY-HI-PRO:3/16 x 3/4 DIA	£7.50	Add
015	716-0104	RETAINING RING 1650-001	£3.58	Add
016	716-0136	RING:RET:TYPE-E .875 DIA	£3.49	Add
017	717-04210	GEAR-56 TOOTH	£54.15	Add
018	726-0221	PUSH CAP	£3.51	Add
019	731-05297	SPACER: .76ID X .75 LG	£4.70	Add
020	732-0264	EXTENSION SPRING	£10.47	Add
021	732-04345	SPRING EXTENSION	£5.41	Add
022	735-04063A	PLUG:5/8: HOLE	£2.49	Add
023	736-0188	FI-WASHER	£6.15	Add
027	738-04184A	SCR:SHLDR:.368x.113:TT:1/4-20	£5.41	Add
028	738-0924A	SCR:SHLDR:.340x.355xC:1/4-28	£2.90	Add
029	741-0245	BRG:HEX FLANGE x.75 ID	£9.33	Add
030	741-0563	BRG:BALL:17x40x12:6203:DS	£49.53	Add
031	746-04230A	CABEL:CLUTCH:AUGER: 47.40 LG	£31.68	Add
032	746-05067	CABLE DRIVE WHEEL	£29.09	Add
033	746-0956C	CABLE STEERING	£32.73	Add
034	748-0190	SPCR:.508 ID x.750 OD x.68	£4.00	Add
035	750-04474	TUBE:SUPT:AXLE	£28.02	Add
036	750-06087	SPACER BUSHING	£4.80	Add
037	750-0767	DISTANCE BUSH	£5.10	Add
038	756-0625	cable idler wheel	£10.52	Add
039	790-00096A-S	GUIDE BRACKET, FRONT	£14.56	Add
040	790-00206A	BRKT:GDE:CBL:CLU:AUGER	£11.05	Add
041	790-00207C	BRKT:GDE:CBL:CLU:DRIVE	N/A	POA
042	790-00316	COVER:FRM:S/T	N/A	POA
043	790-00527	COVER DRIVE LH	N/A	POA
044	790-00528	COVER DRIVE LH	N/A	POA
045	684-04153C	WHL ASM:FRCTN WHEEL	£74.79	Add
45A	735-04054	WHEEL:FRICTION:5.5 OD	£27.80	Add
45B	618-0063A	FRICTION WHEEL BEARING	£98.42	Add
45C	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
45D	790-00174C	KNIFE GUIDE	£22.73	Add
