MTD016036

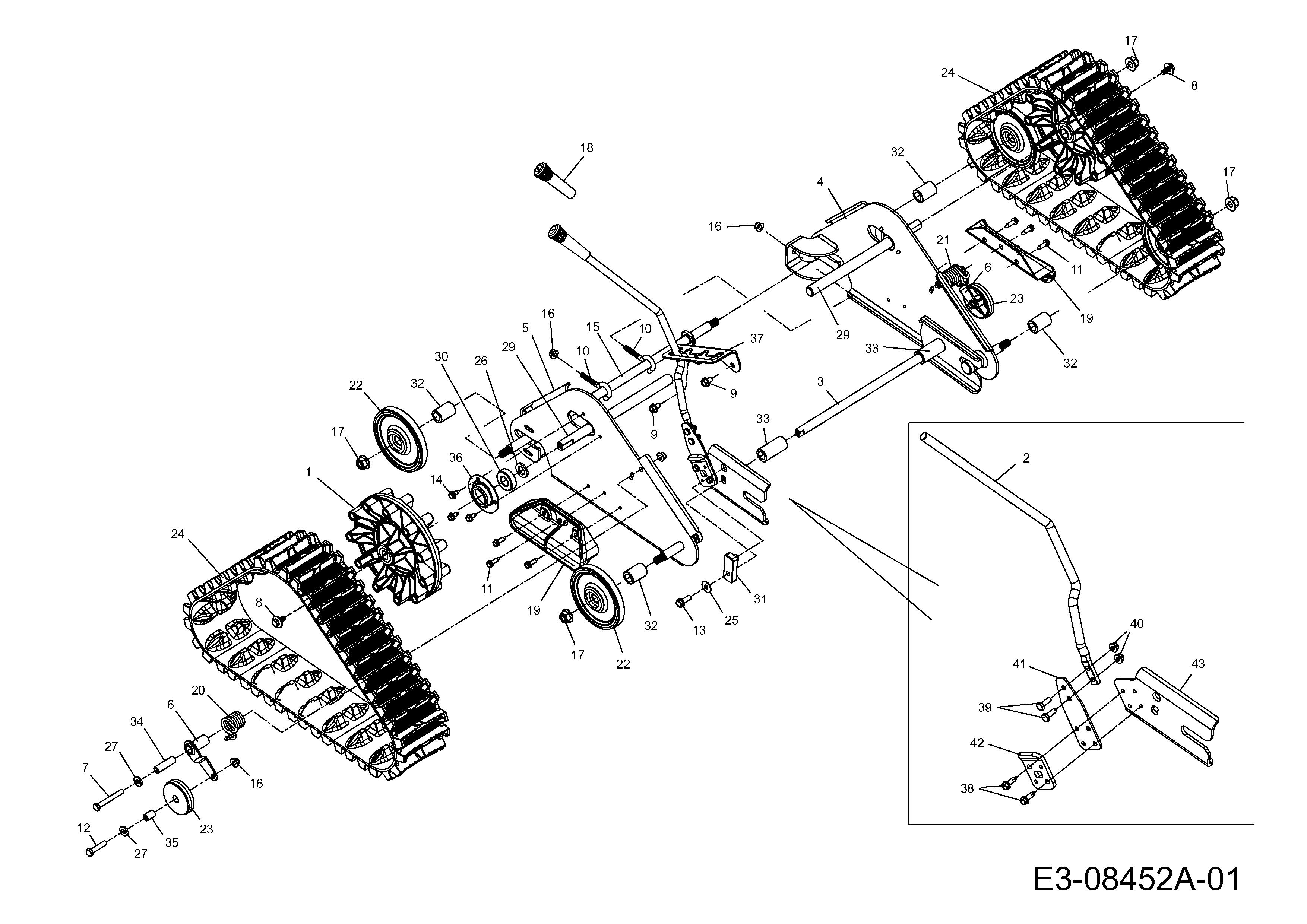

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016036

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 631-05092 WHEEL TRACK DRIVE £58.36 Add
002 747-06180 LEVER HEIGHT LOCK £70.63 Add
003 684-05031 ROD HEIGHT PIVOT £79.62 Add
004 684-05033 N/A POA
005 684-05034 N/A POA
006 684-05052 N/A POA
007 710-0378 HHCS:5/16-18:2.50:GR5:STD £3.80 Add
008 710-05339 SCR:SEMS:5/16-24:.750:GR5 £5.66 Add
009 710-0604A SCREW £3.62 Add
010 710-06112 EYE BOLT £23.30 Add
011 710-06115 SCREW TT 1/4-20 X .875 £10.97 Add
012 710-0805 SCRE.HHCS:5/16-18:1.50:GR5:STD £4.71 Add
013 710-1238 SCREW £3.20 Add
014 710-1652 SCR:TT:1/4-20 x.625:HXINDWH £4.25 Add
015 711-06119 AXLE REAR WHEEL £65.51 Add
016 712-04063 FLANGED NUT £4.20 Add
017 712-04150 NUT FLGLK 1/2-13 NYLON £6.74 Add
018 720-0223 GRIP £11.48 Add
019 731-09608 SKID TRACK £25.65 Add
020 732-05145 TORSION SPRING N/A POA
021 732-05148 TORSION SPRING £18.36 Add
022 734-05046 WHEEL 5.00 £55.24 Add
023 734-05058 WHEEL TRACK TENSION £21.27 Add
024 735-05029 TRACK 61MM X 22 PITCHES £207.88 Add
025 736-0242 BELL WASHER £3.72 Add
026 736-05041 FLAT WASHER £6.11 Add
027 736-3008 WASH:FL:.344 X.750 X.120 £3.49 Add
029 738-05044 AXLE WHEEL REAR £65.76 Add
030 741-0600 BRG BALL 17x40x12 6203 DS £18.36 Add
031 748-05020 ADAPTER HEIGHT ADJUST £24.24 Add
032 750-06090 SPACER £26.66 Add
033 750-06095 SPACER £19.98 Add
034 750-06169 SLEEVE .33X.50X1.73 LG £16.72 Add
035 750-06170 SLEEVE .33X.50X.75 LG £16.41 Add
036 790-00554 CUP BEARING £16.07 Add
037 790-00562 N/A POA
038 710-06115 SCREW TT 1/4-20 X .875 £10.97 Add
039 710-3015 SCREW HEX CAP £3.33 Add
040 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
041 732-05079 MOUNTING BRACKET £26.87 Add
042 787-01521 PIVOT TUBE GUSSET 1x2x.25 £25.29 Add
043 790-00552 BRKT:SHFT:TORQUE LEVER £32.35 Add
