MTD013704

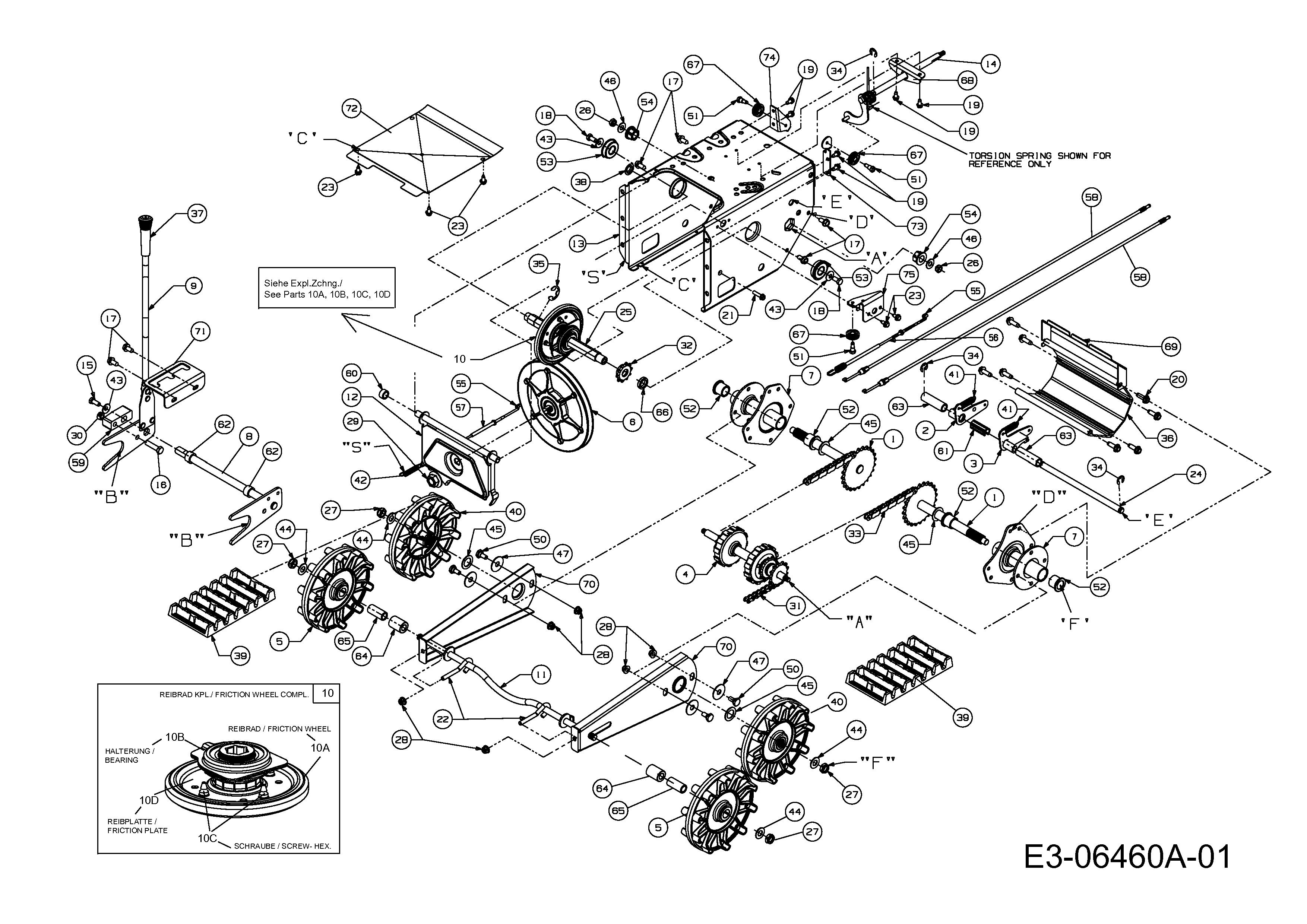

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	611-0053	AXLE ASM:TRACK:.750 SERR	£106.71	Add
002	618-0043	PLT:LATCH	£50.24	Add
003	618-0044	PLT:LATCH	£59.02	Add
004	618-0169B	SHAFT ASSEMBLY	£288.86	Add
005	631-0032A	DRIVE WHEEL	£53.85	Add
006	656-04055	DISC ASM:WHL:FRICTION	£67.82	Add
007	683-0024	HUB ASSY-TRACK	£40.76	Add
008	684-0009A	ROD ASSY-TRACK PIVOT	£95.90	Add
009	684-0038	HANDLE ASSY-LOCK	£80.94	Add
010	684-04159	FRICTION WHEEL ASM 5.5 OD	£85.61	Add
011	684-04240637	AXLE ASSY.-IDLER 684-04240	£110.27	Add
012	684-04241A	BRACKET ASSEMBLY	N/A	POA
013	684-04302B-S	FRAME ASM-TRACK 70	N/A	POA
014	684-04307	SHIFT ASSY. ROD	N/A	POA
015	710-0157	HHCS:5/16-24:.75:GR5:STD	£6.99	Add
016	710-0344	NO LONGER AVAILABLE	N/A	POA
017	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
018	710-0538	HEX L BOLT	£4.15	Add
019	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
020	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add
021	710-0788	NO LONGER AVAILABLE	N/A	POA
022	710-1231	BOLT EYE	£17.58	Add
023	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
024	711-04927	AXLE	N/A	POA
025	711-04928	SHAFT-INPUT	£66.82	Add
026	712-0116	HEX NUT	£3.96	Add
027	712-0346	NO LONGER AVAILABLE	N/A	POA
028	712-04063	FLANGED NUT	£4.20	Add
029	712-05134	BLADE NUT	£3.81	Add
030	712-3000	NUT:HEXLK:3/8-16 GR.B CTRLK	£3.20	Add
031	713-0233	#41 CHAIN	£46.90	Add
032	713-04015	SPROCKET 10T:#41 X .500	£24.55	Add
033	713-0437	#420 CHAIN 1/2 PITCH	£39.38	Add
034	716-0104	RETAINING RING 1650-001	£3.58	Add
035	716-0136	RING:RET:TYPE-E .875 DIA	£3.49	Add
036	719-0295A	COVER	N/A	POA
037	720-0223	GRIP	£11.48	Add
038	726-0221	PUSH CAP	£3.51	Add
039	731-1292	TRACK-SNOW	£276.22	Add
040	731-1538A	Wheel	£63.08	Add
041	732-0209	EXTENSION SPRING	£8.58	Add
042	732-0264	EXTENSION SPRING	£10.47	Add
043	736-0242	BELL WASHER	£3.72	Add
044	736-0272	WASHER:FL:.510 X 1.000 X .060	£3.16	Add
045	736-0287	FLAT WASHER .78" X 1.25" X .062"	£7.92	Add
046	736-0300	WASHER	£2.81	Add
047	736-0406	WASH:F:.442 IDX 1.38 ODX.060HT	£3.39	Add
050	738-0140	SHLD SCREW	£6.03	Add
051	738-0924A	SCR:SHLDR:.340x.355xC:1/4-28	£2.90	Add
052	741-0339	BEARING, HEX FLANGE	£14.70	Add
053	741-0563	BRG:BALL:17x40x12:6203:DS	£49.53	Add
054	741-1111	HEX FLANGE BEARING, CAST	£8.82	Add
055	746-0778	THREADED ROD	£15.36	Add
056	746-0897	CBL:CLU:X 44.75 AUGER	£33.14	Add
057	746-0898B	CABLE-THROTTLE CONTROL B&S	£28.56	Add
058	746-0948A	STEERING CABLE	£48.63	Add
059	748-0353A	SHAFT-LIFT DRIVE	£24.49	Add
060	750-04748	DISTANCE BUSH	£19.18	Add
061	750-05021	SLEEVE	N/A	POA
062	750-0547	NO LONGER AVAILABLE	N/A	POA
063	750-0903B	DISTANCE BUSH	£17.52	Add
064	750-0909	SPACER	£14.30	Add
065	750-0995	DISTANCE BUSH	£14.44	Add
066	750-0997	SPACER 0.675X1X0.23	£17.52	Add
067	756-0625	cable idler wheel	£10.52	Add
068	784-5590	BRACKET	£54.96	Add
069	784-5609	BRACKET-STEERING	£13.05	Add
070	784-5639	PLATE	£27.60	Add
071	784-5642	PLATE-TRACK LOCKOUT	£8.82	Add
072	784-5648A	COVER-FRAME	N/A	POA
073	784-5687A	BRACKET-GUIDE-AUGER:LH	£21.79	Add
074	784-5688	BRACKET DRIVE CABLE ROLLER:RH	£23.09	Add
075	790-00287	BRACKET GUIDE	£35.82	Add
10A	735-04054	WHEEL:FRICTION:5.5 OD	£27.80	Add
10B	618-0063A	FRICTION WHEEL BEARING	£98.42	Add
10C	710-0896	SCREW WITH WASHER ST	£4.97	Add
10D	790-00174	KNIFE GUIDE	£12.94	Add
