MTD017303

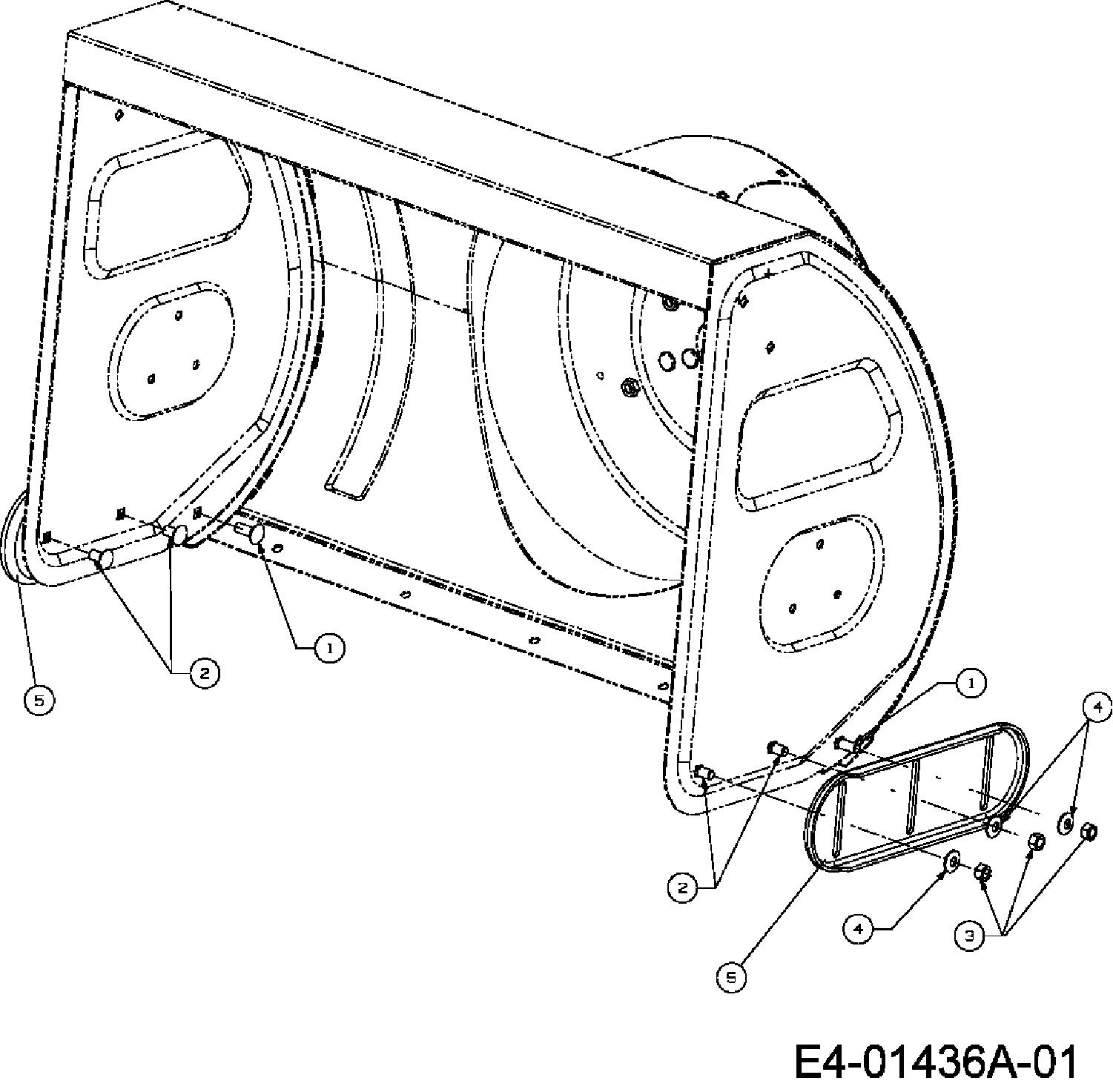

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017303

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 710-04526 BOLT: CARRIAGE £15.87 Add
002 710-04527 BOLT: CARRIAGE £10.80 Add
003 712-04102 Nut £8.65 Add
004 736-04215 washer £17.58 Add
005 790-00199 SKID SHOE £94.95 Add
