MTD017390

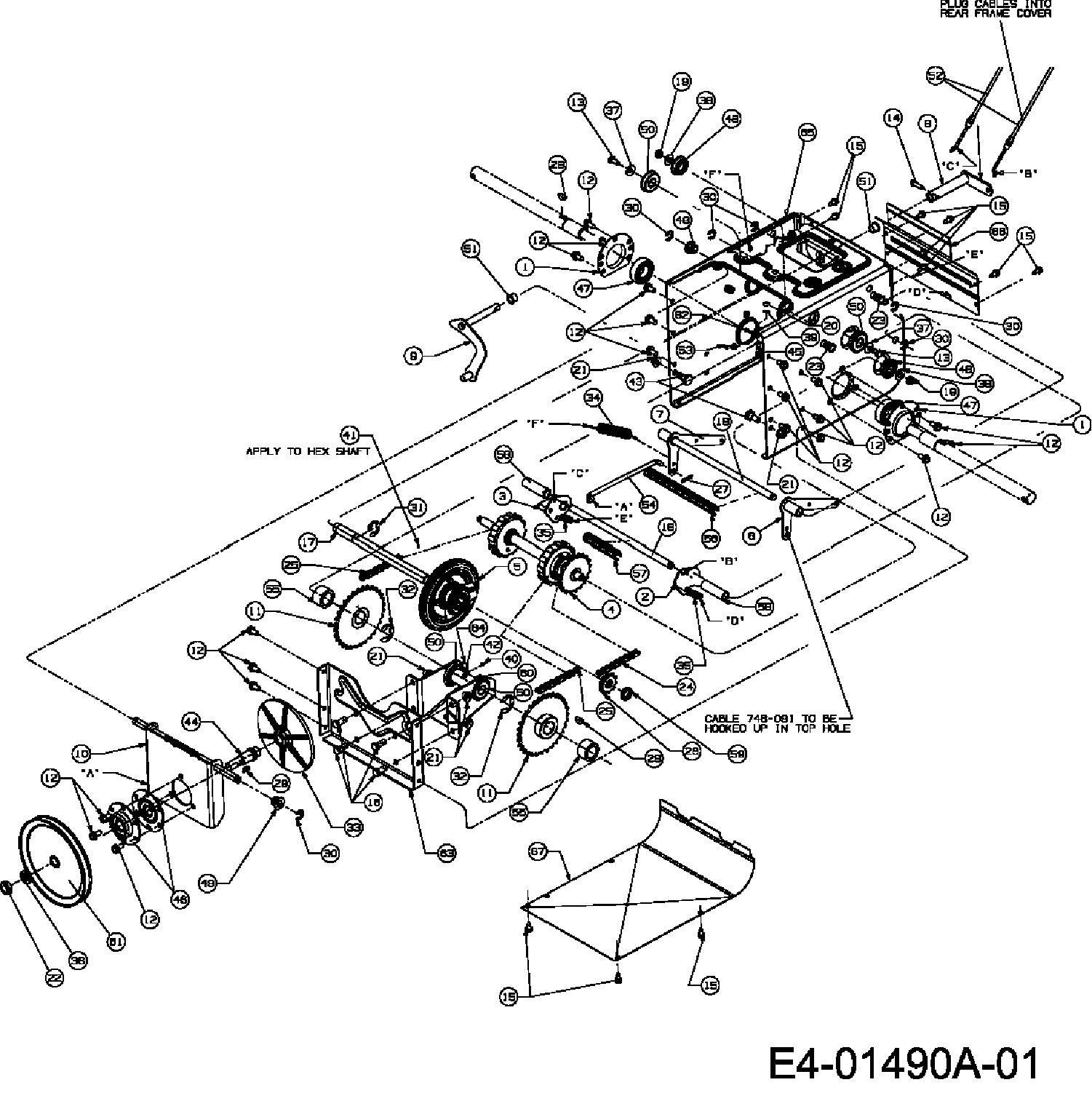

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	05244B	BEARING HOUSING	£20.78	Add
002	618-0279	DOGG ASSEMBLY	N/A	POA
003	618-0280	DOGG ASSEMBLY	£77.31	Add
004	618-0282E	SHAFT ASM-DRIVE	£348.35	Add
005	618-04178	FRICTION WHEEL ASSEMBLY	£139.28	Add
006	684-0118A	BRKT ASM:ACTR:AUGER	N/A	POA
007	684-0119A	BRKT ASM:ACTR:DR	N/A	POA
008	684-0161	ARM ASM:SHFT:900 S/T	N/A	POA
009	684-04103	SHFT ASM:ROD:900 S/T	N/A	POA
010	684-04212	BRKT ASM:SUPT:FRCTN DR 900 S/T	£101.79	Add
011	684-04235	SPROCKET	£97.24	Add
012	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
013	710-0538	HEX L BOLT	£4.15	Add
014	710-0788	NO LONGER AVAILABLE	N/A	POA
015	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
016	710-3001	SCREW HHCS:3/8-16:.880:GR5:STD	£3.00	Add
017	711-04279	DRIVE SHAFT:.75:HEX 900	£103.30	Add
018	711-04605	AXLE-FR	£29.44	Add
019	712-0116	HEX NUT	£3.96	Add
020	712-0138	NUT	£3.03	Add
021	712-04065	NUT	£4.02	Add
022	712-0413	NUT:JAMLK:5/8-18:GR5:NYLON	£13.79	Add
023	712-0717	NUT-INSERT	£15.95	Add
024	713-0284	ROLLER CHAIN	£56.55	Add
025	713-0286	ROLLER CHAIN	£37.16	Add
026	713-04015	SPROCKET 10T:#41 X .500	£24.55	Add
027	714-0104	PIN INTERNAL COTTER	£2.78	Add
028	714-0135	KEY-WOODRUFF NR.91,1/4X3/4"	£12.14	Add
029	714-0388	KEY-WOODRUFF NR.61 3/16X5/8"	£12.14	Add
030	716-0104	RETAINING RING 1650-001	£3.58	Add
031	716-0136	RING:RET:TYPE-E .875 DIA	£3.49	Add
032	716-04048	RING "E"	£13.90	Add
033	717-0302	PULLEY	£74.56	Add
034	732-0121	SPR:EXTN:.730 OD X 4.31	£10.03	Add
035	732-0209	EXTENSION SPRING	£8.58	Add
036	736-0158	WASHER:LOCK:5/8:SPLT:REG	£3.47	Add
037	736-0242	BELL WASHER	£3.72	Add
038	736-0300	WASHER	£2.81	Add
039	736-0329	L. WASHER	£3.26	Add
040	737-0318	GREASE-ARCTIC:EP NLGI 1-58F	£44.00	Add
041	737-04027		N/A	POA
042	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
043	738-0143	SHOULDER BOLT	£12.24	Add
044	738-0279	SPDL:PLT:DR	£68.82	Add
045	738-0924A	SCR:SHLDR:.340x.355xC:1/4-28	£2.90	Add
046	741-0163A	HOUSING-BRG	£36.57	Add
047	741-04025	SELF-ALIGNING BEARING	£42.81	Add
048	741-04076	SELF-ALIGNING BEARING	£16.52	Add
049	741-04108	Bearing flange	£12.75	Add
050	741-0563	BRG:BALL:17x40x12:6203:DS	£49.53	Add
051	741-0748	Bearing flange	£11.74	Add
052	746-0949A	BOWDEN CABLE	£45.51	Add
053	746-0951	BOWDEN CABLE	£46.73	Add
054	747-0973	ROD-LOCKOUT	£16.79	Add
055	750-04703	DISTANCE BUSH	£13.43	Add
056	750-04717	DISTANCE BUSH	£23.45	Add
057	750-04718	DISTANCE BUSH	£9.72	Add
058	750-0903B	DISTANCE BUSH	£17.52	Add
059	750-0997	SPACER 0.675X1X0.23	£17.52	Add
060	750-1302B	SPACER	£18.36	Add
061	756-0344	V-BELT PULLEY	£94.66	Add
062	756-0625	cable idler wheel	£10.52	Add
063	784-0406A	SLEEVE HITCH BRACKET ASSEMBLY	£67.47	Add
064	784-0407	SUPPORT BRKT:AXLE BEARING	£64.60	Add
065	790-00255		N/A	POA
066	790-00257	COVER	N/A	POA
067	790-00259	LOWER COVER	N/A	POA
