MTD009888

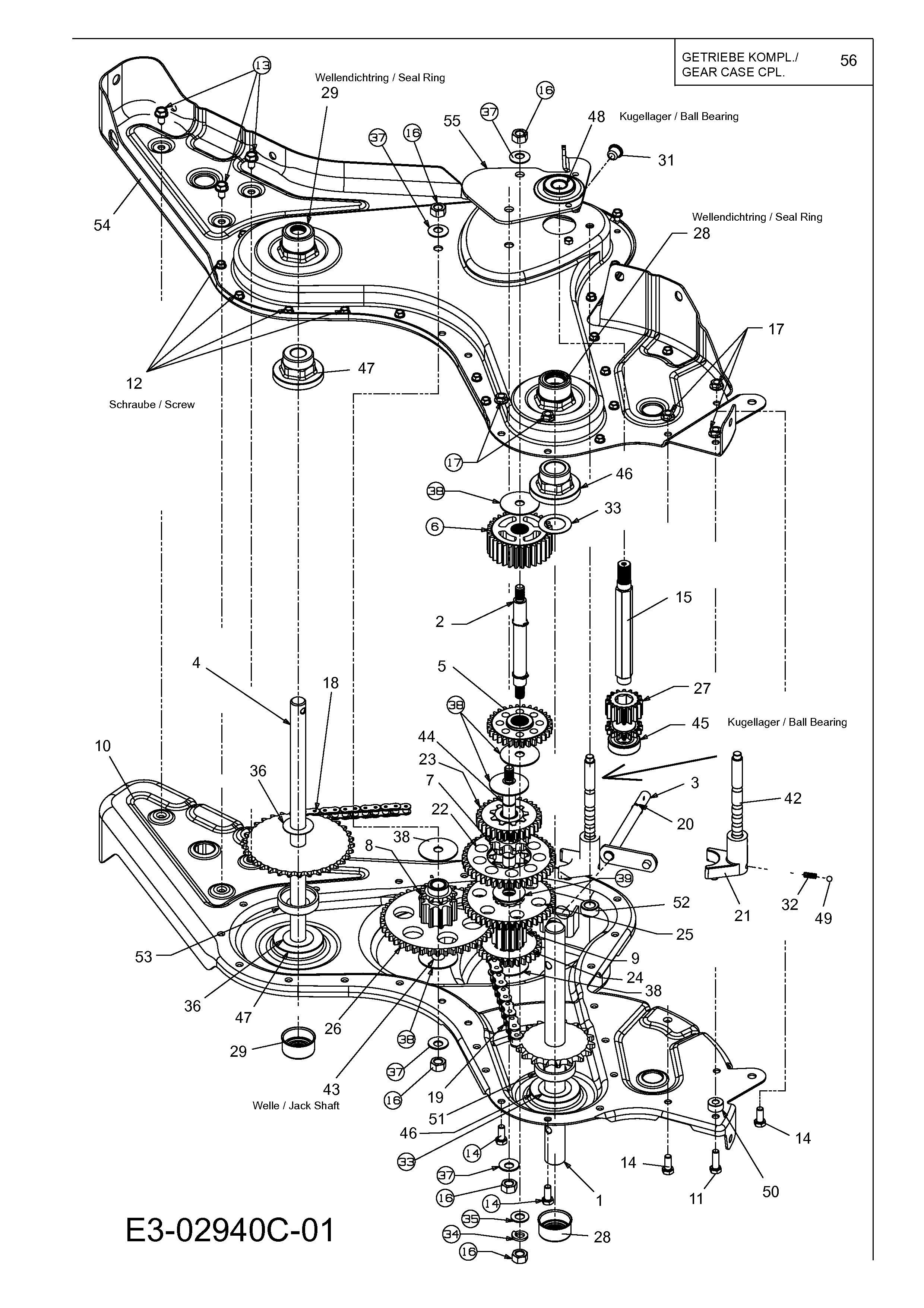

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	611-0021	SHAFT ASSY-TINE	£97.16	Add
002	611-0128	SHIFT -DRIVE ASSY.	£68.22	Add
003	611-0129	Rod (Hi & Lo range)	£79.25	Add
004	611-04074A	SHAFT	£73.13	Add
005	617-0058	GEAR ASSY.-REV IDLER	£94.66	Add
006	617-0059	GEAR ASSY.-REV IDLER	£126.45	Add
007	617-0060	SPROCKET ASSY. 9T	£224.67	Add
008	617-0061	SPROCKET ASSY. 10T	£72.64	Add
009	617-0062	GEAR ASSY. 11T	£136.89	Add
010	686-0108A	HOUSING ASSY.	£259.40	Add
011	710-0376	SCREW HEX CAP 5/16	£9.02	Add
012	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
013	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
014	710-3008	HEX BOLT	£3.03	Add
015	711-1349A	DRIVE SHAFT	£77.47	Add
016	712-0378	USE 712-0375	£14.89	Add
017	712-04063	FLANGED NUT	£4.20	Add
018	713-0367	#420 CHAIN-1/2 PITCH	£39.31	Add
019	713-0484	CHAIN #50 54LINKS 5/8PITCH	£111.83	Add
020	716-0865	RING-SNAP	£11.34	Add
021	717-0853A	FORK-SHIFT	£60.78	Add
022	717-1582A	GEAR, 44T REDUCTION	£80.57	Add
023	717-1583	GEAR ASSY.-REV IDLER	£66.82	Add
024	717-1584	GEAR ASSY.-REV IDLER	£47.51	Add
025	717-1585	GEAR, 44T REDUCTION	£96.97	Add
026	717-1587	GEAR, 44T REDUCTION	£118.48	Add
027	717-1594	GEAR,16T SPUR	£188.08	Add
028	721-0378	SEAL;SHF:1.00 DIA	£17.39	Add
029	721-0379	SEAL:SHF:.75 DIA	£17.39	Add
031	726-0277	PLUG-TAPER CAP	£10.83	Add
032	732-04778	Spring	£16.20	Add
033	736-0163	WASHER-FL	£12.20	Add
034	736-0171	WASHER	£2.93	Add
035	736-0226	WASHER:FLAT:.474 x.879 x.064	£3.39	Add
036	736-0351	WASH:SHIM:.760x1.500X.030:HD	£2.97	Add
037	736-0407	WASHER	£11.84	Add
038	736-0518	WASH:THRST:.445 x 1.920 x.060	£6.50	Add
039	736-3088	WASHER,FLAT	£8.58	Add
042	738-0645	SHAFT-DIFFERENTIAL	£68.41	Add
043	738-0648	AXLE	£45.11	Add
044	738-04424A	AXLE	£32.96	Add
045	741-0124A	BALL BEARING	£20.00	Add
046	741-0420	BEARING	£29.01	Add
047	741-0421	BEARING,FLANGE	£25.78	Add
048	741-0563	BRG:BALL:17x40x12:6203:DS	£49.53	Add
049	741-0862	BALL:DETNT:.250 DIA	£6.05	Add
050	750-0258	SPCR:.315 X .75 X .375LG	£6.91	Add
051	750-0570	SPACER	£13.56	Add
052	750-0664	SPACER	£3.90	Add
053	750-0671	SLEEVE	£13.43	Add
054	686-04129		N/A	POA
055	786-0238	BRACKET	£34.50	Add
056	686-04074B	GEAR CASE ASSY CPL.	£731.89	Add
