MTD011671

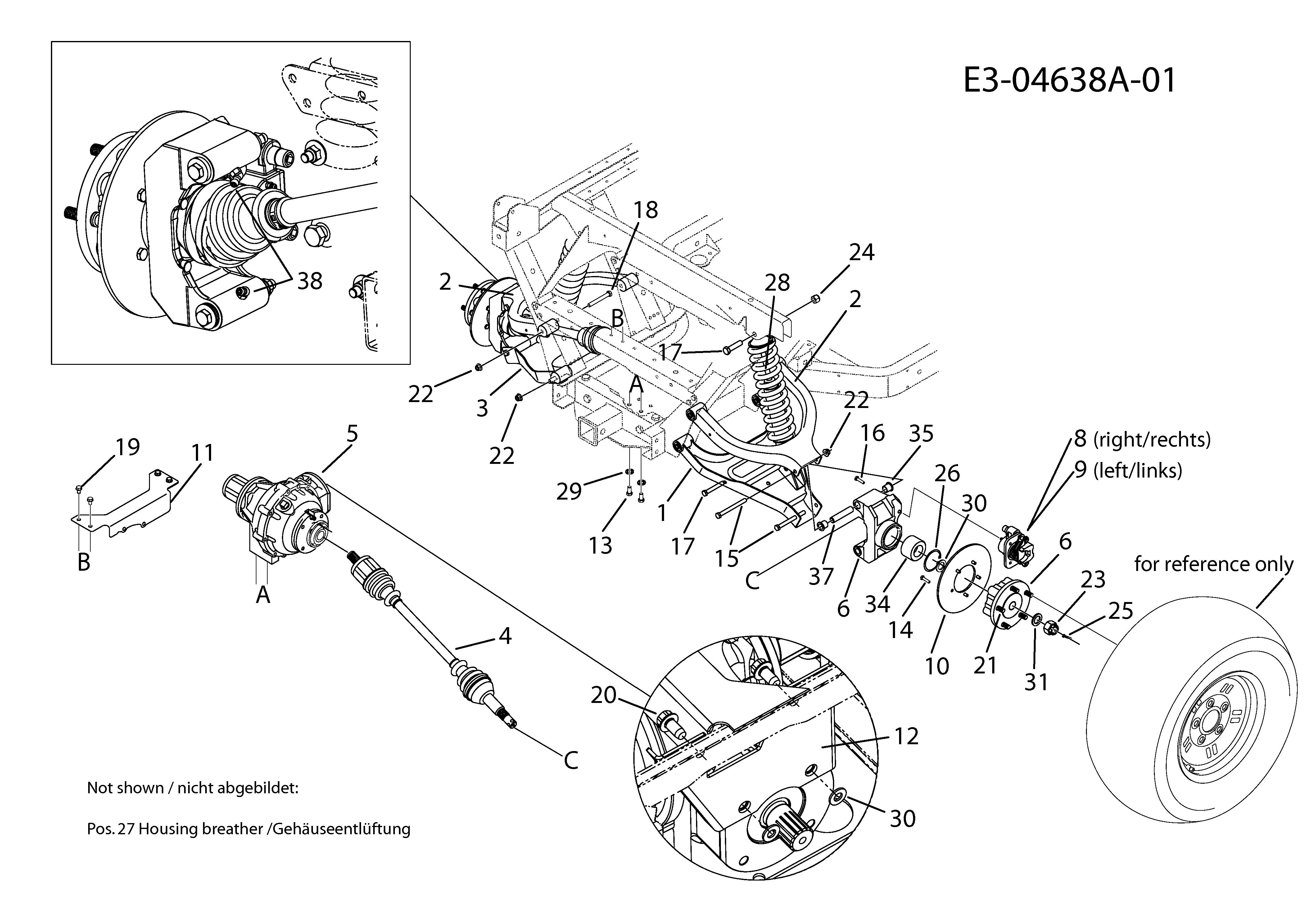

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011671

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 607-04395 CONT ASSEMBLY 607-04162A £336.66 Add
002 607-04394A CONT ASSEMBLY 607-04163A £424.87 Add
003 607-04396A CONTROL ASM LH 607-04169A £450.18 Add
004 611-04063B UTV REAR DRIVE SHAFT £449.35 Add
005 618-04236 DIFF ASSEMBLY, 4X4 UV,COMPLETE N/A POA
006 618-04489 HUB ASM-WHEEL 4X4 £155.01 Add
007 619-04188B HOUSING REAR 4X4 619-04188 £142.55 Add
008 661-04043 BRAKE ASM-CALIPER FRONT RH £155.97 Add
009 661-04044 BRAKE ASM-CALIPER FRONT LH £155.97 Add
010 707-04436A BRAKE DISC £72.11 Add
011 707-04603A BRACKET UTV 4X4 £53.80 Add
012 707-05018637 BRACKET DIFF:RR 707-05018 N/A POA
013 710-0216 HHCS:3/8-16:.75:GR5:STD £3.59 Add
014 710-0433 HEX BOLT £6.66 Add
015 710-04637 SCREW-HEX £29.34 Add
016 710-04639 SCREW-HEX £24.91 Add
017 710-0489 SCREW-HEX £12.98 Add
018 710-0521 SCREW HHCS:3/8-16:3.00:GR8:STD £5.19 Add
019 710-0607 SELF TAP SCREW £4.71 Add
020 710-0623 SCR:TT:3/8-16:.750 HXINDWSH £6.30 Add
021 710-0852 BOLT £5.63 Add
022 712-04065 NUT £4.02 Add
023 712-04109 NUT:SLOTTED:22X1.5 £33.41 Add
024 712-3083 NUT £2.79 Add
025 714-0162 COTTER PIN £2.79 Add
026 716-04055 Circlip £25.25 Add
027 723-3021 BREATHER £28.20 Add
028 732-04423 SHABS-5.0 STROKE:RR 4X4 £218.74 Add
029 736-0300 WASHER £2.81 Add
030 736-0275 WASH:FLAT:.344 x .688 x.065 £3.07 Add
031 736-0291 WASHER-FL £15.86 Add
033 737-04149 ADAP:DIFF:BREATHER £24.30 Add
034 741-04166 UTV HUB BEARING £154.91 Add
035 741-04234B Flange bearing 741-04234A £7.30 Add
036 747-04514 TIE ROD £75.42 Add
037 750-04358B TUBE PIVOT RR/CONT £47.24 Add
038 737-04091 grease nipple £11.74 Add
