MTD010093

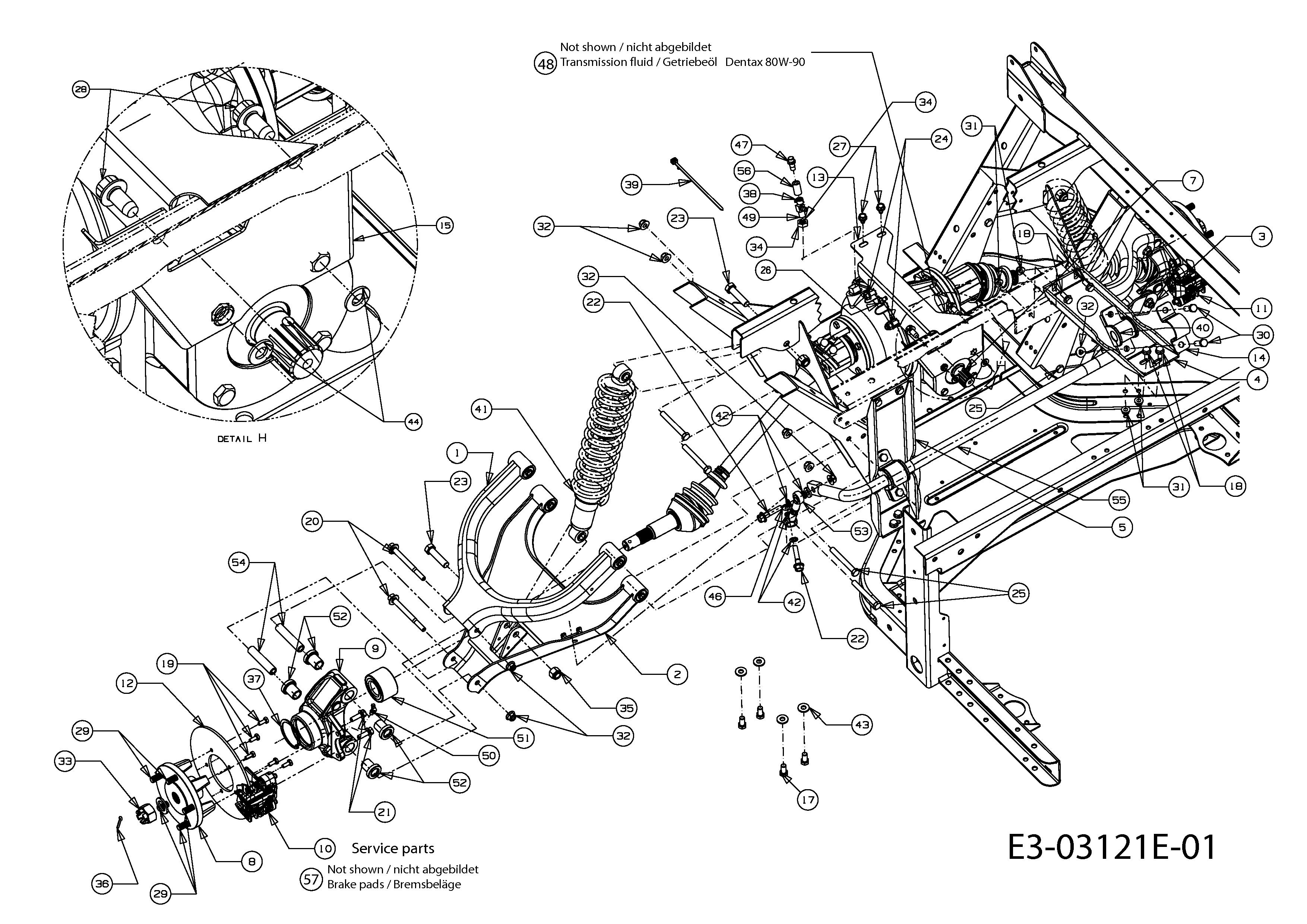

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	607-04395	CONT ASSEMBLY 607-04162A	£336.66	Add
002	607-04394A	CONT ASSEMBLY 607-04163A	£424.87	Add
003	607-04396A	CONTROL ASM LH 607-04169A	£450.18	Add
004	607-04328B-S	MOUNT ASM-SWAY	£113.60	Add
005	607-04329B-S	MOUNT ASM-SWAY BAR RH	£113.60	Add
006	611-04063B	UTV REAR DRIVE SHAFT	£449.35	Add
007	618-04236	DIFF ASSEMBLY, 4X4 UV,COMPLETE	N/A	POA
008	618-04489	HUB ASM-WHEEL 4X4	£155.01	Add
009	619-04188B	HOUSING REAR 4X4 619-04188	£142.55	Add
010	661-04043	BRAKE ASM-CALIPER FRONT RH	£155.97	Add
011	661-04044	BRAKE ASM-CALIPER FRONT LH	£155.97	Add
012	707-04436A	BRAKE DISC	£72.11	Add
013	707-04603B-S	MOUNT:REAR/DIFF:4X4	£35.56	Add
014	707-04655637	MOUNT:SWAY BAR	£53.09	Add
015	707-05018A		N/A	POA
016	707-05313	SPACER-DIFF 4X4	£30.38	Add
017	710-0216	HHCS:3/8-16:.75:GR5:STD	£3.59	Add
018	710-04043	SCREW	£10.58	Add
019	710-0433	HEX BOLT	£6.66	Add
020	710-04637	SCREW-HEX	£29.34	Add
021	710-04639	SCREW-HEX	£24.91	Add
022	710-04640	SCREW-HEX	£14.88	Add
023	710-0489	SCREW-HEX	£12.98	Add
024	710-04994	SCREW-HEX HEAD M8	£9.58	Add
025	710-0521	SCREW HHCS:3/8-16:3.00:GR8:STD	£5.19	Add
026	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
027	710-0607	SELF TAP SCREW	£4.71	Add
028	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
029	710-0852	BOLT	£5.63	Add
030	710-3005	BOLT	£3.24	Add
031	712-04063	FLANGED NUT	£4.20	Add
032	712-04065	NUT	£4.02	Add
033	712-04109	NUT:SLOTTED:22X1.5	£33.41	Add
034	712-04272		N/A	POA
035	712-3083	NUT	£2.79	Add
036	714-0162	COTTER PIN	£2.79	Add
037	716-04055	Circlip	£25.25	Add
038	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
039	726-0240	TIE:CBL:3/16:7.0 LG	£4.13	Add
040	731-05352	bush	£68.52	Add
041	732-04423	SHABS-5.0 STROKE:RR 4X4	£218.74	Add
042	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add
043	736-0300	WASHER	£2.81	Add
044	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
045	736-0291	WASHER-FL	£15.86	Add
046	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
047	737-0296	VALVE,INTAKE	£21.95	Add
048	737-04039	TRANSMISSION FLUID	£44.56	Add
049	737-04278		N/A	POA
050	737-3001	GREASE NIPPLE	£15.73	Add
051	741-04166	UTV HUB BEARING	£154.91	Add
052	741-04234B	Flange bearing 741-04234A	£7.30	Add
053	747-04514	TIE ROD	£75.42	Add
054	750-04358B	TUBE PIVOT RR/CONT	£47.24	Add
055	750-04487A	BAR SWAY RR 4X4	£125.00	Add
056	751-10350	FUEL LINE	N/A	POA
057	98-19006	UTV BRAKE PADS ONE SET REQ PER WHEEL one only part (OBSOLETE)	N/A
