MTD010084

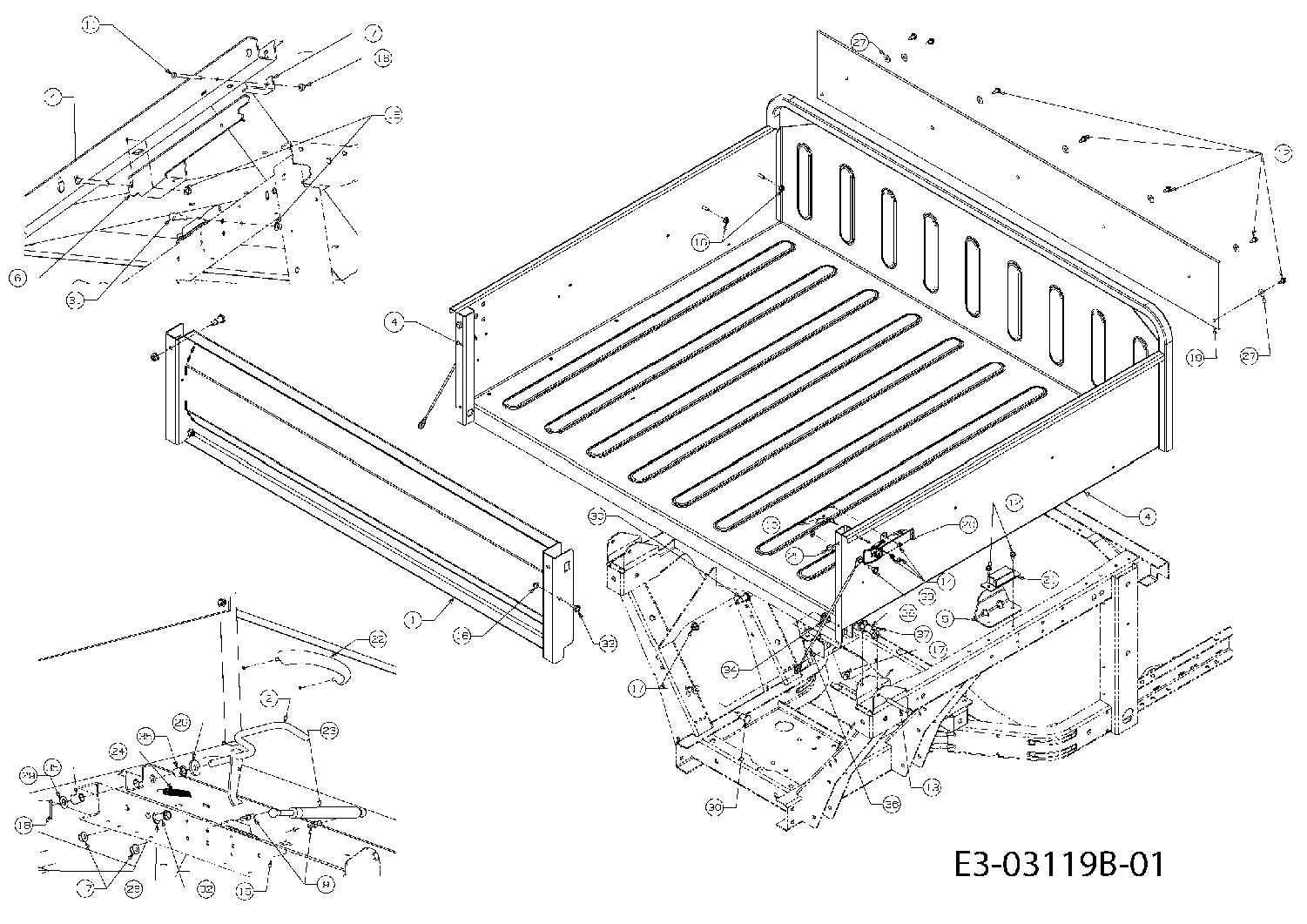

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010084

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 607-04159A TGT ASSY N/A POA
002 607-04180 LEVER ASM:BED:LATCH £72.64 Add
003 607-04184C-S FRAME ASM:REAR 607-04184 £835.05 Add
004 607-04191 BOX ASM, BED £589.97 Add
005 707-04786 BRACKET: BED GUIDE N/A POA
006 707-05046 SUPPORT-SAFETY BED UV £68.68 Add
007 707-05047 LATCH-SUPPORT BED £77.08 Add
008 710-0176 HHCS:5/16-18:2.75:GR5:STD £6.11 Add
009 710-04166 STUD:BALL:5/16-18 £20.35 Add
010 710-0473 SCR:MACH:#10-24:0.500:TRUSPHI £4.62 Add
011 710-1122 SCREW HHCS:1/4-20:2.50:GR5:STD £3.90 Add
012 710-1652 SCR:TT:1/4-20 x.625:HXINDWH £4.25 Add
013 710-3022 HEX BOLT UTV £3.58 Add
014 712-0161 NYLOK NUT #10-24 £6.05 Add
015 712-04063 FLANGED NUT £4.20 Add
016 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
017 712-04065 NUT £4.02 Add
018 714-0162 COTTER PIN £2.79 Add
019 721-04196 COVER, REAR £230.54 Add
020 726-04058 LATCH:DRAW:OVER CENTER £54.15 Add
021 731-04016 BUMPER SUSPENSION £32.45 Add
022 731-04174 HNDL:BAG:W/SCR 400/500 S £58.97 Add
023 732-04109B SPRING £82.43 Add
024 732-0428A SPRING N/A POA
025 735-0271A UTV TAILGATE GROMMET £9.24 Add
026 736-0300 WASHER £2.81 Add
027 736-0342 FLAT WASHER £2.97 Add
028 736-04019 WASH:FL:.531X1.25X.181 £20.29 Add
029 736-0572 NO LONGER AVAILABLE N/A POA
030 738-0430 SHLD-SCR: .50 x .685:3/8-16 £8.01 Add
031 738-0754 SCR:SHLD:.437 DIA x .54 £9.72 Add
032 738-0966A SCHR:SHLDR:.50X.925:3/8-16 £5.24 Add
033 738-1023 SHOULDER SCREW N/A POA
034 741-0324A BEARING £5.54 Add
035 741-0673 BUSHING, BRUSH SHAFT (PM) £17.58 Add
036 746-04245 CABLE LANYARD UTV £20.79 Add
037 748-0227A HEX FLANGED BEARING 748-0229 £8.06 Add
038 750-04634 SPACER-PULLEY £50.24 Add
