Parts list

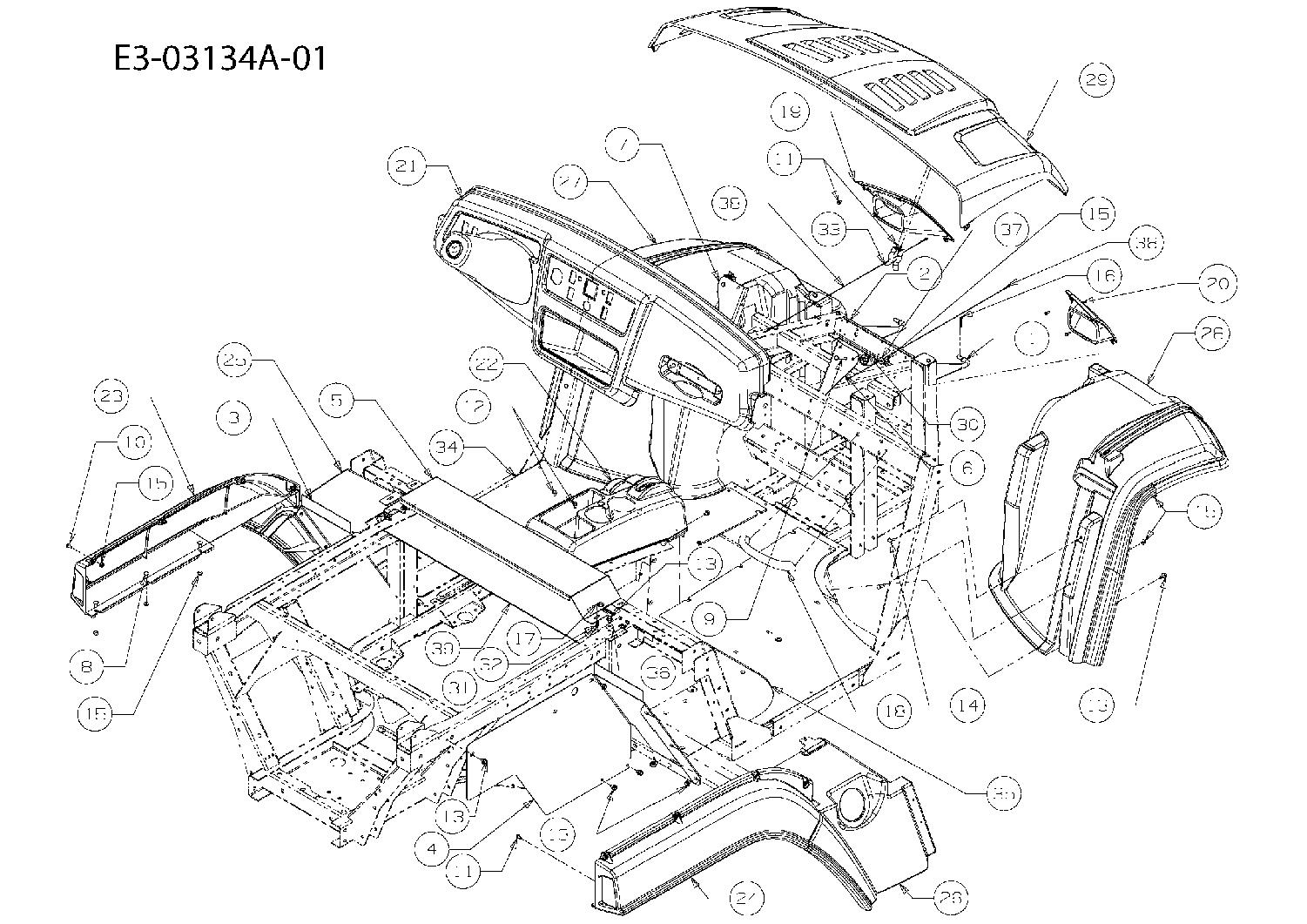

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
607-04224
|
ROD ASM:HOOD MT
|
£73.46
|
Add
|
|
002
|
707-04484
|
|
N/A
|
POA
|
|
003
|
707-04728B-S
|
REAR INNER WHELL ARCH (UTV) RH 707-04728A
|
£147.49
|
Add
|
|
004
|
707-04729B-S
|
REAR INNER WHEEL ARCHES (UTV) RH 707-04729A
|
£99.02
|
Add
|
|
005
|
707-04748
|
|
N/A
|
POA
|
|
006
|
707-04779
|
BRACKET, HOOD/DASH
|
£39.93
|
Add
|
|
007
|
707-04782
|
BRACKET, HOOD/DASH
|
£39.93
|
Add
|
|
008
|
710-0134
|
BOLT
|
£3.03
|
Add
|
|
009
|
710-0136
|
Bolt, Hex 1/4-20 x 1-3/4" 1509-069
|
£3.58
|
Add
|
|
010
|
710-0286
|
SCREW
|
£3.31
|
Add
|
|
011
|
710-04261
|
SCR:HL:#12-16:.50:HXINDWISH
|
£5.50
|
Add
|
|
012
|
710-0599
|
HEX TT SCREW 1/4-20
|
£4.95
|
Add
|
|
013
|
710-0607
|
SELF TAP SCREW
|
£4.71
|
Add
|
|
014
|
710-3015
|
SCREW HEX CAP
|
£3.33
|
Add
|
|
015
|
712-04064
|
NUT FLGLK 1/4 20 GRF NYLON
|
£6.63
|
Add
|
|
016
|
714-0101
|
PIN:COT:INT:.08 X 1.42
|
£3.58
|
Add
|
|
017
|
726-3056
|
LATCH 1/4 TURN
|
£13.39
|
Add
|
|
018
|
731-04174
|
HNDL:BAG:W/SCR 400/500 S
|
£58.97
|
Add
|
|
019
|
731-05284
|
BZL, HDLT LH
|
£50.12
|
Add
|
|
020
|
731-05285
|
BZL, HDLT RH
|
£61.77
|
Add
|
|
021
|
731-05322
|
Instrument panel
|
£134.35
|
Add
|
|
022
|
731-05436
|
PLATE-BATTERY
|
£64.86
|
Add
|
|
023
|
731-05450A
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
024
|
731-05451A
|
FENDER RH RR CAMO
|
£327.80
|
Add
|
|
025
|
731-05452
|
FENDER: LOWER LH RR CAMO:UV
|
£225.23
|
Add
|
|
026
|
731-05453
|
FENDER:LOWER RH RR CAMO
|
£225.23
|
Add
|
|
027
|
731-05454B
|
FENDER, LH 4X4, CAMO
|
£330.31
|
Add
|
|
028
|
731-05455B
|
FENDER, RH 4X4, CAMO
|
£340.87
|
Add
|
|
029
|
731-05456
|
HOOD
|
£429.24
|
Add
|
|
030
|
731-3232
|
ROLLER,HOOD LATCH
|
£19.48
|
Add
|
|
031
|
732-0936
|
CLIP-SPRING
|
£12.34
|
Add
|
|
032
|
732-0937
|
COMPRESSION SPRING
|
£11.98
|
Add
|
|
033
|
732-1178
|
Spring
|
£34.56
|
Add
|
|
034
|
735-04068A
|
FLOOR MAT, LH
|
£139.16
|
Add
|
|
035
|
735-04069A
|
FLOOR MAT, RH
|
£139.16
|
Add
|
|
036
|
736-0242
|
BELL WASHER
|
£3.72
|
Add
|
|
037
|
736-0342
|
FLAT WASHER
|
£2.97
|
Add
|
|
038
|
746-04328
|
CABLE, HOOD
|
£22.79
|
Add
|
|
039
|
751-10435
|
INSULATOR:COVER
|
£61.59
|
Add
|
