MTD010125

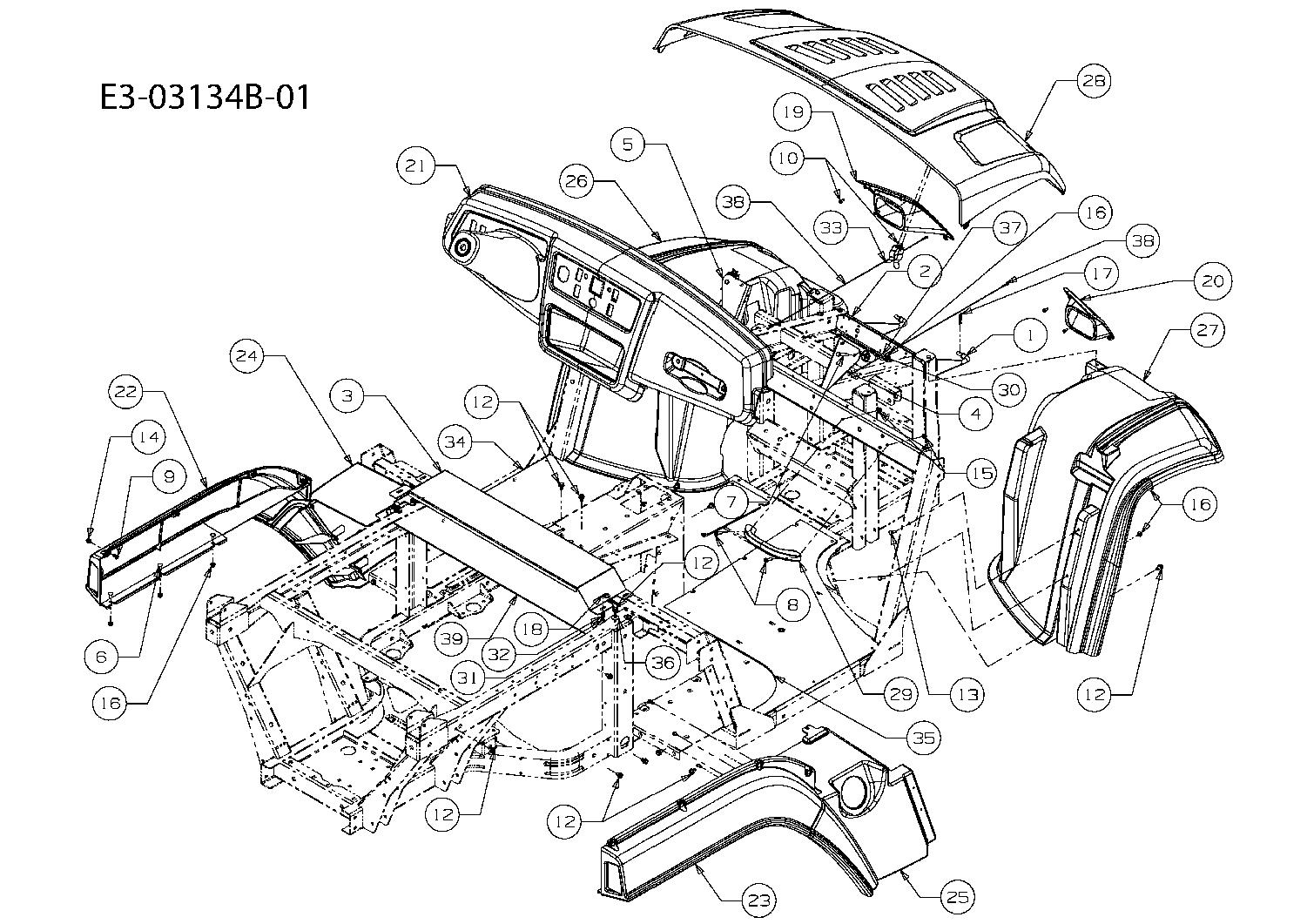

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010125

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 607-04224 ROD ASM:HOOD MT £73.46 Add
002 707-04484 N/A POA
003 707-04748 N/A POA
004 707-04779 BRACKET, HOOD/DASH £39.93 Add
005 707-04782 BRACKET, HOOD/DASH £39.93 Add
006 710-0134 BOLT £3.03 Add
007 710-0136 Bolt, Hex 1/4-20 x 1-3/4" 1509-069 £3.58 Add
008 710-0166A SCR:MACH:1/4-20:1.000:PANPHI £5.91 Add
009 710-0286 SCREW £3.31 Add
010 710-04261 SCR:HL:#12-16:.50:HXINDWISH £5.50 Add
011 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
012 710-0607 SELF TAP SCREW £4.71 Add
013 710-3015 SCREW HEX CAP £3.33 Add
014 712-0264 NUT:ACORN:1/20-20:w/o LOCK £4.58 Add
015 712-0324 HEX. INS L NUT £3.69 Add
016 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
017 714-0101 PIN:COT:INT:.08 X 1.42 £3.58 Add
018 726-3056 LATCH 1/4 TURN £13.39 Add
019 731-05284 BZL, HDLT LH £50.12 Add
020 731-05285 BZL, HDLT RH £61.77 Add
021 731-05322A Instrument panel £142.42 Add
022 731-05450A NO LONGER AVAILABLE N/A POA
023 731-05451A FENDER RH RR CAMO £327.80 Add
024 731-05452 FENDER: LOWER LH RR CAMO:UV £225.23 Add
025 731-05453 FENDER:LOWER RH RR CAMO £225.23 Add
026 731-05454B FENDER, LH 4X4, CAMO £330.31 Add
027 731-05455B FENDER, RH 4X4, CAMO £340.87 Add
028 731-05456 HOOD £429.24 Add
029 731-06155 HANDLE GRIP £41.02 Add
030 731-3232 ROLLER,HOOD LATCH £19.48 Add
031 732-0936 CLIP-SPRING £12.34 Add
032 732-0937 COMPRESSION SPRING £11.98 Add
033 732-1178 Spring £34.56 Add
034 735-04068A FLOOR MAT, LH £139.16 Add
035 735-04069A FLOOR MAT, RH £139.16 Add
036 736-0242 BELL WASHER £3.72 Add
037 736-0342 FLAT WASHER £2.97 Add
038 746-04328 CABLE, HOOD £22.79 Add
039 751-10435 INSULATOR:COVER £61.59 Add
