MTD010120

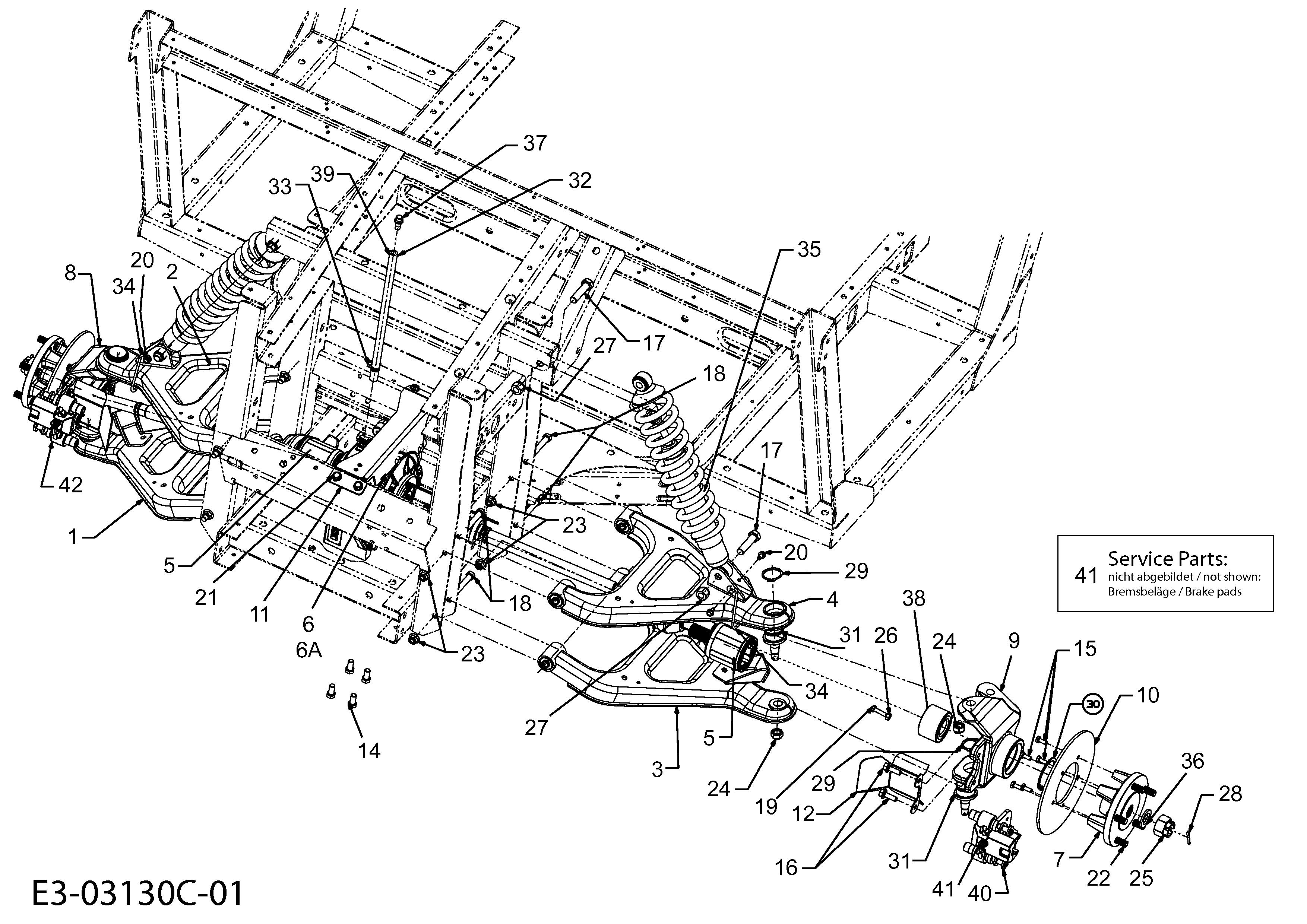

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010120

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 607-04398A CONT ASSEMBLY 607-04145A £351.92 Add
002 607-04148 CONTROL ARM ASM £239.54 Add
003 607-04152 CONTROL ASM 607-04152A £260.70 Add
004 607-04153 CONTROL ASM £177.98 Add
005 611-04071A UTV FRONT DRIVESHAFT £407.83 Add
006 618-04316A DIFF ASSEMBLY £757.06 Add
007 618-04489 HUB ASM-WHEEL 4X4 £155.01 Add
008 619-04137B UTV Hub R/H £265.50 Add
009 619-04142B HOUSING KNUCKLE L/FRONT MACHANICAL £338.88 Add
010 707-04436A BRAKE DISC £72.11 Add
011 707-04604A-S MOUNT:FRONT/DIFF:4X4 N/A POA
012 707-04832637 BRACKET £83.37 Add
013 707-04833637 BRACKET £98.36 Add
014 710-0216 HHCS:3/8-16:.75:GR5:STD £3.59 Add
015 710-0433 HEX BOLT £6.66 Add
016 710-04639 SCREW-HEX £24.91 Add
017 710-0489 SCREW-HEX £12.98 Add
018 710-0521 SCREW HHCS:3/8-16:3.00:GR8:STD £5.19 Add
019 710-0597 HEX SEMS SCREW £2.97 Add
020 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
021 710-0607 SELF TAP SCREW £4.71 Add
022 710-0852 BOLT £5.63 Add
023 712-04065 NUT £4.02 Add
024 712-04086 Nut £14.01 Add
025 712-04109 NUT:SLOTTED:22X1.5 £33.41 Add
026 712-3006 NUT £2.77 Add
027 712-3083 NUT £2.79 Add
028 714-0162 COTTER PIN £2.79 Add
029 716-04039 RETAIN RING 34X1.6 £18.06 Add
030 716-04055 Circlip £25.25 Add
031 723-04024 UTV BALL JOINT £51.47 Add
032 726-0205 HOSE CLAMP 1/2 INCH DIA. £3.44 Add
033 726-04041 CLAMP-HOSE £6.63 Add
034 732-04383 WIRE: BRAKE LINE £24.51 Add
035 732-04424B UTV FRONT SHOCK ABSORBER £189.50 Add
036 736-0291 WASHER-FL £15.86 Add
037 737-0296 VALVE,INTAKE £21.95 Add
038 741-04166 UTV HUB BEARING £154.91 Add
039 751-10350 FUEL LINE N/A POA
040 661-04044 BRAKE ASM-CALIPER FRONT LH £155.97 Add
041 98-19006 UTV BRAKE PADS ONE SET REQ PER WHEEL one only part (OBSOLETE) N/A
042 661-04043 BRAKE ASM-CALIPER FRONT RH £155.97 Add
06A 092.60.003 FRONT DIFF OIL SEAL UTV £35.82 Add
