MTD011780

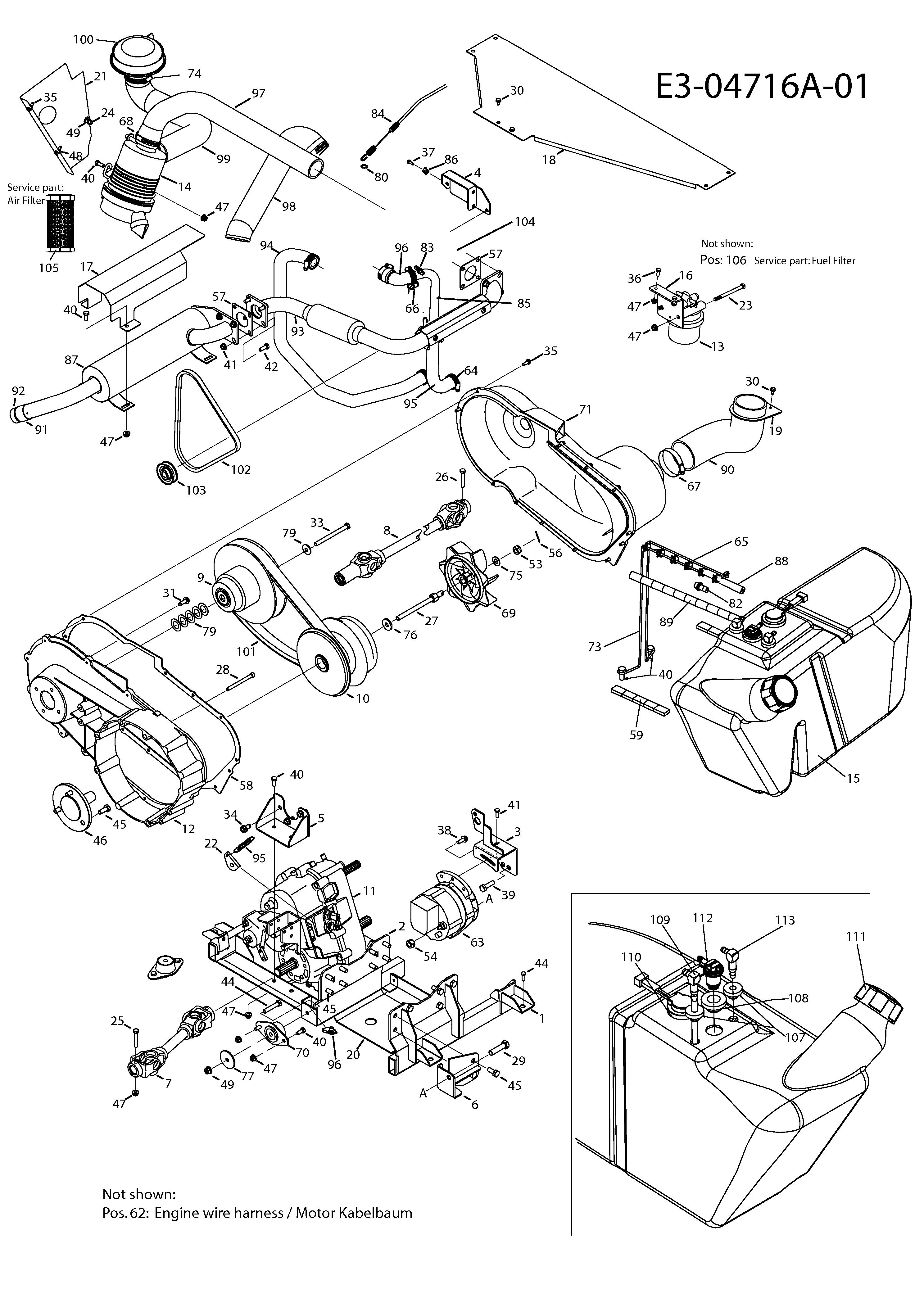

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	607-04310		N/A	POA
002	607-04311		N/A	POA
003	607-04312		N/A	POA
004	607-04325		N/A	POA
005	607-04326		N/A	POA
006	607-04327		N/A	POA
007	618-04306	UTV REAR PROPSHAFT ASSEMBLY	£691.61	Add
008	618-04314	UTV FRONT PROPSHAFT ASSEMBLY	£416.64	Add
009	618-04586B	GEARBOX DRIVEN CLUTCH MIDDLE SPLINE	£647.75	Add
010	618-04680	CLUTCH ASSY. DRIVER YANMAR	£666.12	Add
011	759-05014	TRANSMISSION ASSEMBLY YANMAR UTV 618-04726	£1,336.10	Add
012	619-04207	HOUSING ASM	£413.52	Add
013	651-04044	NO LONGER AVAILABLE	N/A	POA
014	651-04156	FILTER ASM AIRCL 4X4 CAT	£183.88	Add
015	651-04158	TANK-FUEL 2 GAL	£239.56	Add
016	707-04714	BRACKET:FILTER:FUEL:CAT 4X4	£25.42	Add
017	707-04891	SHIELD:HEAT	£74.25	Add
018	707-04969	PLATE-HEAT SHIELD:CAT	£101.99	Add
019	707-04991	BRACKET:TUBE:CVT	£44.30	Add
020	707-05179	SHIELD OIL ENGINE	£49.07	Add
021	707-05257		N/A	POA
022	707-05272	BRACKET SPRING	£14.81	Add
023	710-0190	HHCS:5/16-18:4.00:GR5:STD	£5.31	Add
024	710-0216	HHCS:3/8-16:.75:GR5:STD	£3.59	Add
025	710-0116	SCREW-HEX	£9.03	Add
026	710-04653	HHCS 5/16-18:1.875	£14.89	Add
027	710-04657	HEX.SCREW:HHCS7/16-20:5.00GR5	£46.70	Add
028	710-04769	SCREW M10	£11.18	Add
029	710-0489	SCREW-HEX	£12.98	Add
030	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
031	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add
032	710-0603	SCR:B:5/16-12:0.500:HXINDWSH	£11.34	Add
033	710-0620	SCREW-HEX HD	£13.07	Add
034	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
035	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
036	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
037	710-1003	SCR:B:#10-16:0.625:HXINDWSH:SP	£3.31	Add
038	710-1238	SCREW	£3.20	Add
039	710-1313	HHCS:M10-1.5:35mm:GR8.8:STD	£20.99	Add
040	710-3008	HEX BOLT	£3.03	Add
041	710-3015	SCREW HEX CAP	£3.33	Add
042	710-3038	BOLT	£9.82	Add
043	710-3138	NO LONGER AVAILABLE	N/A	POA
044	710-3144	SCREW	£3.28	Add
045	710-3208	SCREW HHCS:M10-1.5:25mm:GR8.8	£3.59	Add
046	711-04964	SHAFT OUTUT	£139.02	Add
047	712-04063	FLANGED NUT	£4.20	Add
048	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
049	712-04065	NUT	£4.02	Add
050	712-04193	NUT 3/8-16	£16.41	Add
051	712-3004A	HEX FLANGE NUT	£2.97	Add
052	712-3009	NUT:HEXLK:5/16-18:GRB:CTRLK	£2.98	Add
053	712-3012	NUT:HEX:1/2-20:GR5:SLOT	£4.80	Add
054	712-3022	NUT:HEXLK:1/2-13:GRB:CTRLK	£10.83	Add
055	712-3086	NUT:FLANGE:M8-1.25	£3.34	Add
056	714-0111	COTTER PIN	£3.20	Add
057	721-04167	Gasket	£45.27	Add
058	721-04292	SEAL COVER	£75.35	Add
059	722-3022	TAPE:.625 WIDE x .25 THK FOAM	£2.30	Add
060	111.11.114	NO LONGER AVAILABLE	N/A	POA
061	725-0157	NO LONGER AVAILABLE	N/A	POA
062	725-04758	HARNESS-UV ENGINE	£79.30	Add
063	725-04806	ALTERNATOR YANMAR	£381.97	Add
064	726-0174	CLAMP-HOSE	£24.38	Add
065	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
066	726-0272	Clamp	£2.98	Add
067	726-04080	Clamp	£24.05	Add
068	726-0476	CLAMP-HOSE	£20.49	Add
069	731-04275	IMPELLER BLADE	£26.00	Add
070	731-04667	MOUNT, ENGINE	£74.10	Add
071	731-06748	COVER-CVT	£60.27	Add
072	732-04248	SPR:EXTN:.38 x 3.9 LG	£11.52	Add
073	732-04357	WIRE, TANK, FUEL	£40.07	Add
074	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
075	736-0272	WASHER:FL:.510 X 1.000 X .060	£3.16	Add
076	736-0322	FI-WASH	£8.68	Add
077	736-04018	WASH:FLAT:.380x2.000x.120	£5.91	Add
078	736-0452	BELL-WASH 39 INCH	£8.68	Add
079	736-0566	WASHER FLAT	£9.58	Add
080	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add
082	737-0296	VALVE,INTAKE	£21.95	Add
083	737-04232	PETCOCK COOLANT DRAIN	£25.02	Add
084	746-04540	CABLE-CONTROL THROTTLE YANMAR	£94.61	Add
085	750-04989	TUBE RADIATOR	£59.51	Add
086	751B221535	CLAMP-CASING	£3.00	Add
087	751-10152B	MUFFLER:4X4:CAT/KOHLER	£256.36	Add
088	751-10349	HOSE:FUEL:LOW PERMEATION	£72.63	Add
089	751-10350	FUEL LINE	N/A	POA
090	751-10510	HOSE: AIR INLET 4X4 CAT	£114.50	Add
091	751-10689	ARRESTOR SCREEN	£27.47	Add
092	751-10690	ARRESTOR CLAMP	£44.30	Add
093	751-10756	PIPE EXHAUST	£207.42	Add
094	751-10779	HOSE RADIATOR	£68.38	Add
095	751-10893	TUBE LOWER RADIATOR	£26.31	Add
096	751-10894	TUBE UPPER RADIATOR	£39.13	Add
097	751-10994	HOSE AIR INLET	£66.72	Add
098	751-10997	TUBE 20/800X10"	£89.09	Add
099	751-11068	HOSE AIR INLET	£68.38	Add
100	751-11072	CAP AIR FILTER	£55.60	Add
101	754-04125B	UTV TRANSMISSION DRIVE BELT	£110.42	Add
102	754-04225	V-Belt	£55.05	Add
103	756-04379	PULLEY	£38.00	Add
104	752Y3TNV70ABC		N/A	POA
105	EPB5636	UTV AIR FILTER	£51.21	Add
106	EPB5635	UTV FUEL FILTER	£33.13	Add
107	735-04065	BUSHING - FUEL TANK	£30.23	Add
108	735-04067	bush	£27.52	Add
109	751-10288	FITTING, FUEL, PICKUP 4X4	£32.38	Add
110	751-10361	FUEL SENSOR LOW	£176.30	Add
111	751-10373	UTV DIESEL TANK FILLER CAP	£47.72	Add
112	751-10375	FITTING-FUEL VENT	£78.46	Add
113	751-3174	FITTING-FUEL RETURN TANK	£19.48	Add
