MTD011791

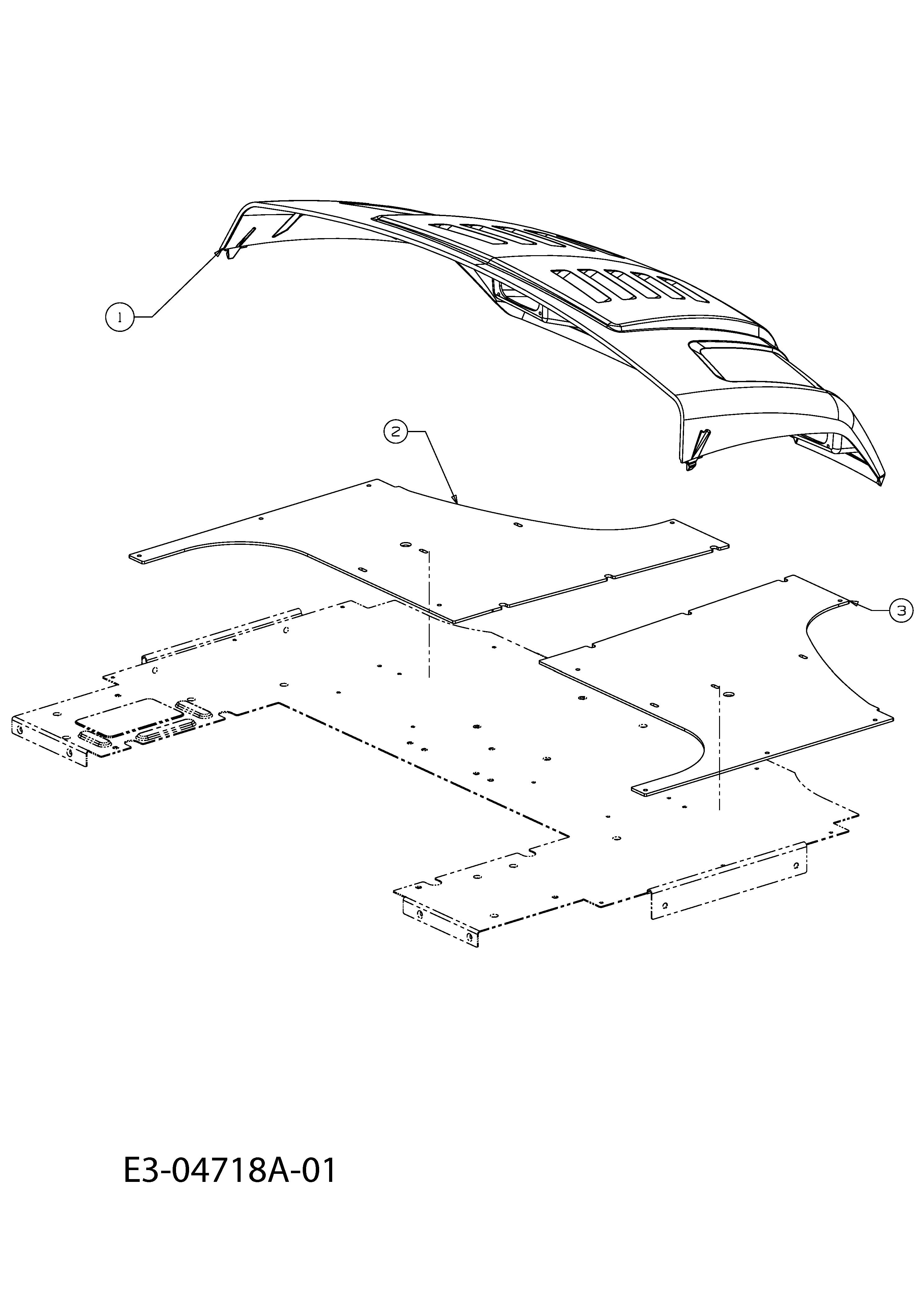

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011791

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 731-06638 HOOD 4X4 CUB YELLOW £260.44 Add
002 735-04068A FLOOR MAT, LH £139.16 Add
003 735-04069A FLOOR MAT, RH £139.16 Add
