MTD013748

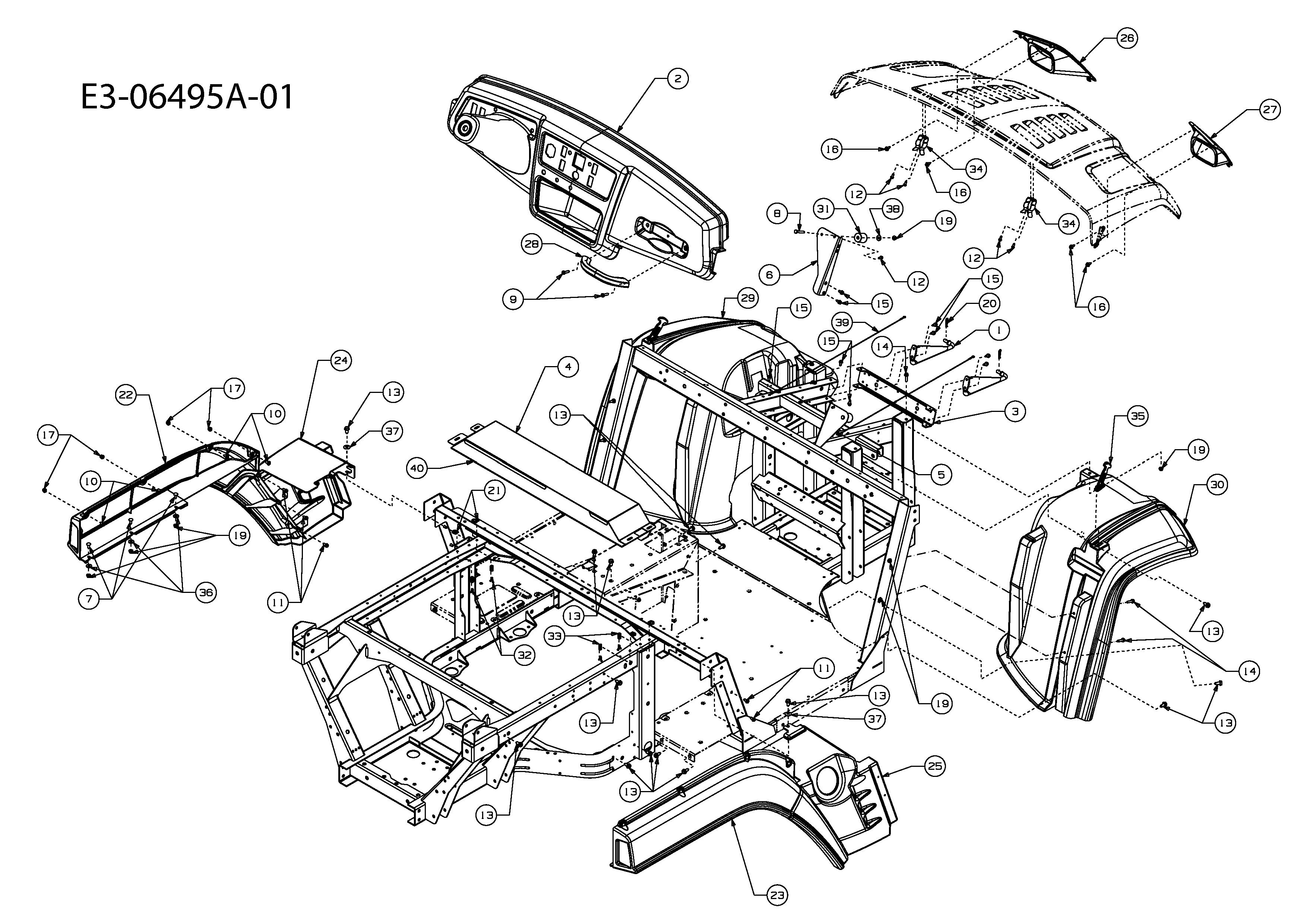

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	607-04224	ROD ASM:HOOD MT	£73.46	Add
002	631-04235	DASHBOARD	£101.82	Add
003	707-04484		N/A	POA
004	707-04748A	CVR:UV	N/A	POA
005	707-04779A		N/A	POA
006	707-04782A		N/A	POA
007	710-0134	BOLT	£3.03	Add
008	710-0136	Bolt, Hex 1/4-20 x 1-3/4" 1509-069	£3.58	Add
009	710-0166A	SCR:MACH:1/4-20:1.000:PANPHI	£5.91	Add
010	710-0286	SCREW	£3.31	Add
011	710-04187	SCH:HL:1/4-15:0.50:HXINDWSH	£4.22	Add
012	710-04261	SCR:HL:#12-16:.50:HXINDWISH	£5.50	Add
013	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
014	710-05105	HEX HEAD CAP SCREW	£8.09	Add
015	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
016	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
017	712-0264	NUT:ACORN:1/20-20:w/o LOCK	£4.58	Add
018	712-0324	HEX. INS L NUT	£3.69	Add
019	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
020	714-0101	PIN:COT:INT:.08 X 1.42	£3.58	Add
021	726-3056	LATCH 1/4 TURN	£13.39	Add
022	731-05280A	FENDER LH RR	£301.50	Add
023	731-05281A	FENDER RH RR	£226.34	Add
024	731-05282A		N/A	POA
025	731-05283A		N/A	POA
026	731-05284	BZL, HDLT LH	£50.12	Add
027	731-05285	BZL, HDLT RH	£61.77	Add
028	731-06155	HANDLE GRIP	£41.02	Add
029	731-06710	FENDER:LH UV BLACK	£242.97	Add
030	731-06711		N/A	POA
031	731-3232	ROLLER,HOOD LATCH	£19.48	Add
032	732-0936	CLIP-SPRING	£12.34	Add
033	732-0937	COMPRESSION SPRING	£11.98	Add
034	732-1178	Spring	£34.56	Add
035	735-04145	STRAP HOOD	£15.60	Add
036	736-0173	WASH:FL:.28ID:.74OD:.063	£3.31	Add
037	736-0242	BELL WASHER	£3.72	Add
038	736-0342	FLAT WASHER	£2.97	Add
039	746-04328	CABLE, HOOD	£22.79	Add
040	751-10435	INSULATOR:COVER	£61.59	Add
