MTD010094

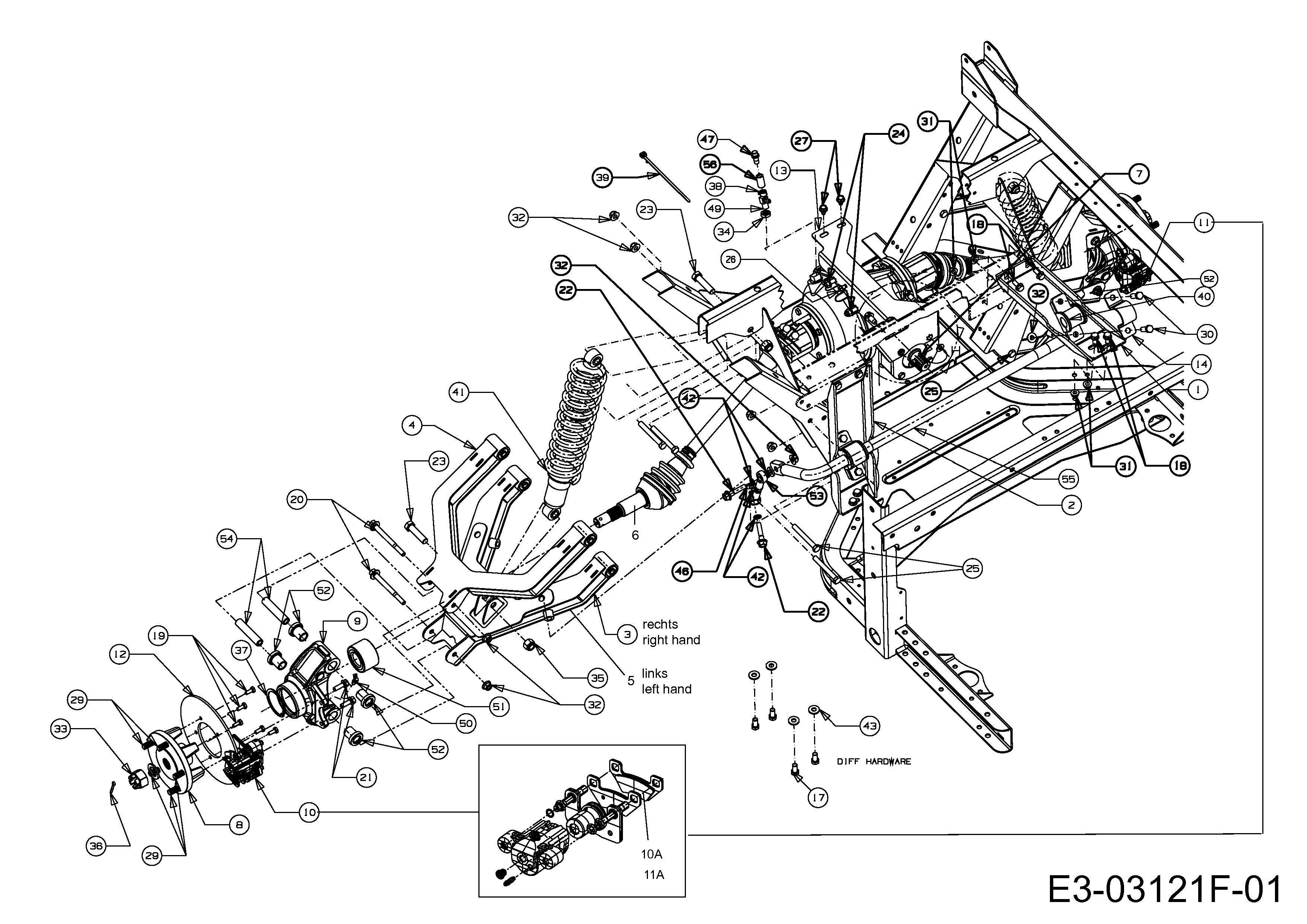

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010094

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 607-04328B N/A POA
002 607-04329B N/A POA
003 607-04394A CONT ASSEMBLY 607-04163A £424.87 Add
004 607-04395 CONT ASSEMBLY 607-04162A £336.66 Add
005 607-04396A CONTROL ASM LH 607-04169A £450.18 Add
006 611-04063B UTV REAR DRIVE SHAFT £449.35 Add
007 618-04236 DIFF ASSEMBLY, 4X4 UV,COMPLETE N/A POA
008 618-04489 HUB ASM-WHEEL 4X4 £155.01 Add
009 619-04188B HOUSING REAR 4X4 619-04188 £142.55 Add
010 661-04043 BRAKE ASM-CALIPER FRONT RH £155.97 Add
011 661-04044 BRAKE ASM-CALIPER FRONT LH £155.97 Add
012 707-04436A BRAKE DISC £72.11 Add
013 707-04603B N/A POA
014 707-04655 MOUNT:SWAY BAR £53.09 Add
017 710-0216 HHCS:3/8-16:.75:GR5:STD £3.59 Add
018 710-04043 SCREW £10.58 Add
019 710-0433 HEX BOLT £6.66 Add
020 710-04637 SCREW-HEX £29.34 Add
021 710-04639 SCREW-HEX £24.91 Add
022 710-04640 SCREW-HEX £14.88 Add
023 710-0489 SCREW-HEX £12.98 Add
024 710-04994 SCREW-HEX HEAD M8 £9.58 Add
025 710-0521 SCREW HHCS:3/8-16:3.00:GR8:STD £5.19 Add
026 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
027 710-0607 SELF TAP SCREW £4.71 Add
029 710-0852 BOLT £5.63 Add
030 710-3005 BOLT £3.24 Add
031 712-04063 FLANGED NUT £4.20 Add
032 712-04065 NUT £4.02 Add
033 712-04109 NUT:SLOTTED:22X1.5 £33.41 Add
034 712-04272 N/A POA
035 712-3083 NUT £2.79 Add
036 714-0162 COTTER PIN £2.79 Add
037 716-04055 Circlip £25.25 Add
038 726-0205 HOSE CLAMP 1/2 INCH DIA. £3.44 Add
039 726-0240 TIE:CBL:3/16:7.0 LG £4.13 Add
040 731-05352 bush £68.52 Add
041 732-04423 SHABS-5.0 STROKE:RR 4X4 £218.74 Add
042 736-0140 WASH:FLAT:.385 x.62 x.063 £3.59 Add
043 736-0300 WASHER £2.81 Add
046 736-3010 WASH:FL:.407X.812X.135:HD £2.85 Add
047 737-0296 VALVE,INTAKE £21.95 Add
049 737-04278 N/A POA
050 737-3001 GREASE NIPPLE £15.73 Add
051 741-04166 UTV HUB BEARING £154.91 Add
052 741-04234B Flange bearing 741-04234A £7.30 Add
053 747-04514 TIE ROD £75.42 Add
054 750-04358B TUBE PIVOT RR/CONT £47.24 Add
055 750-04487A BAR SWAY RR 4X4 £125.00 Add
056 751-10350 FUEL LINE N/A POA
10A 761-04064 PADS BRAKE 2 PADS £75.29 Add
11A 761-04064 PADS BRAKE 2 PADS £75.29 Add
