MTD010096

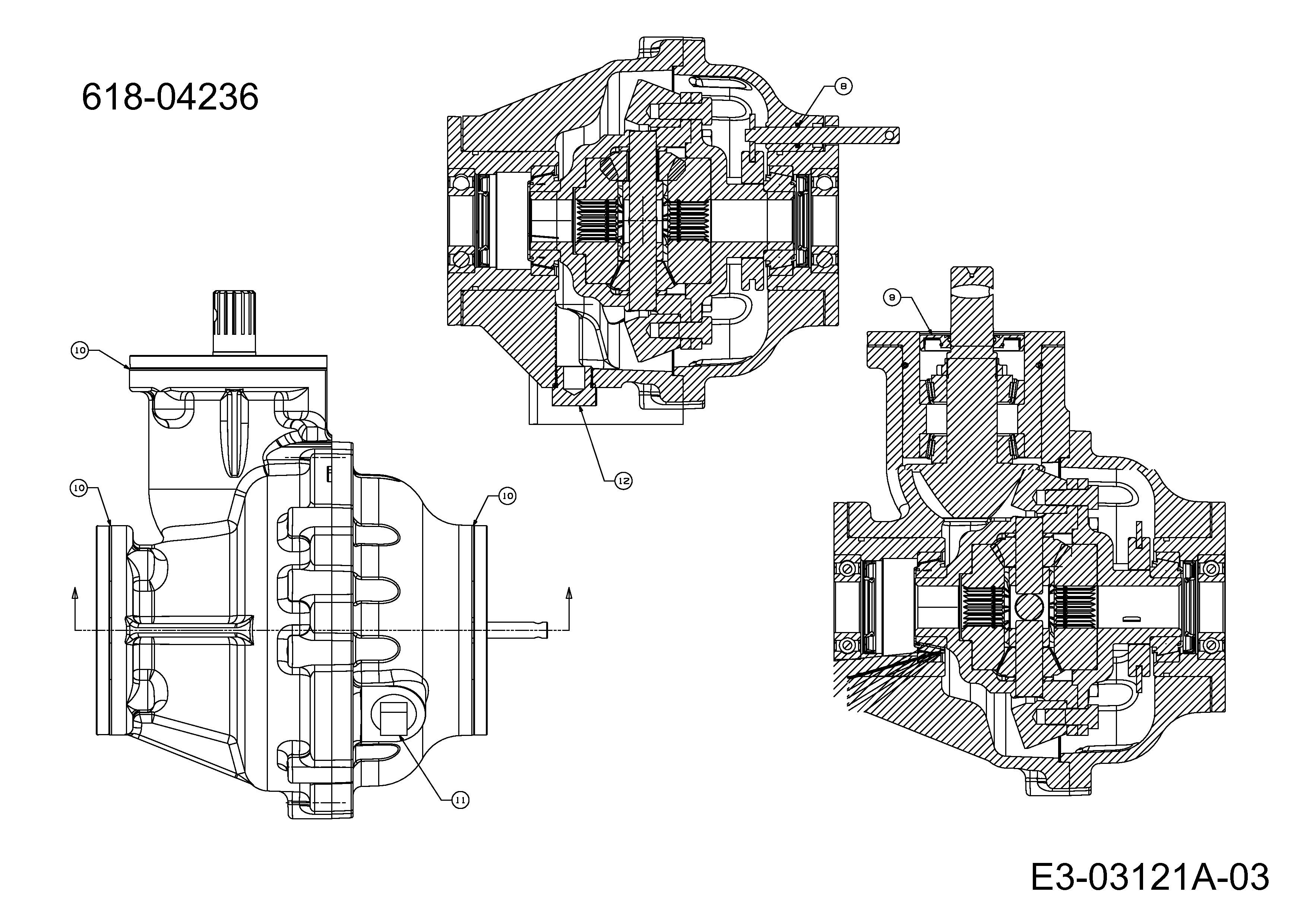

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010096

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
008 721-0212 SEAL-OIL £24.70 Add
009 721-04143 SEAL - OIL 1.0x62MMx.375 £22.60 Add
010 736-04209 N/A POA
011 737-0348A PLUG PIPE £35.88 Add
012 737-0349 KNOB £36.13 Add
