MTD011782

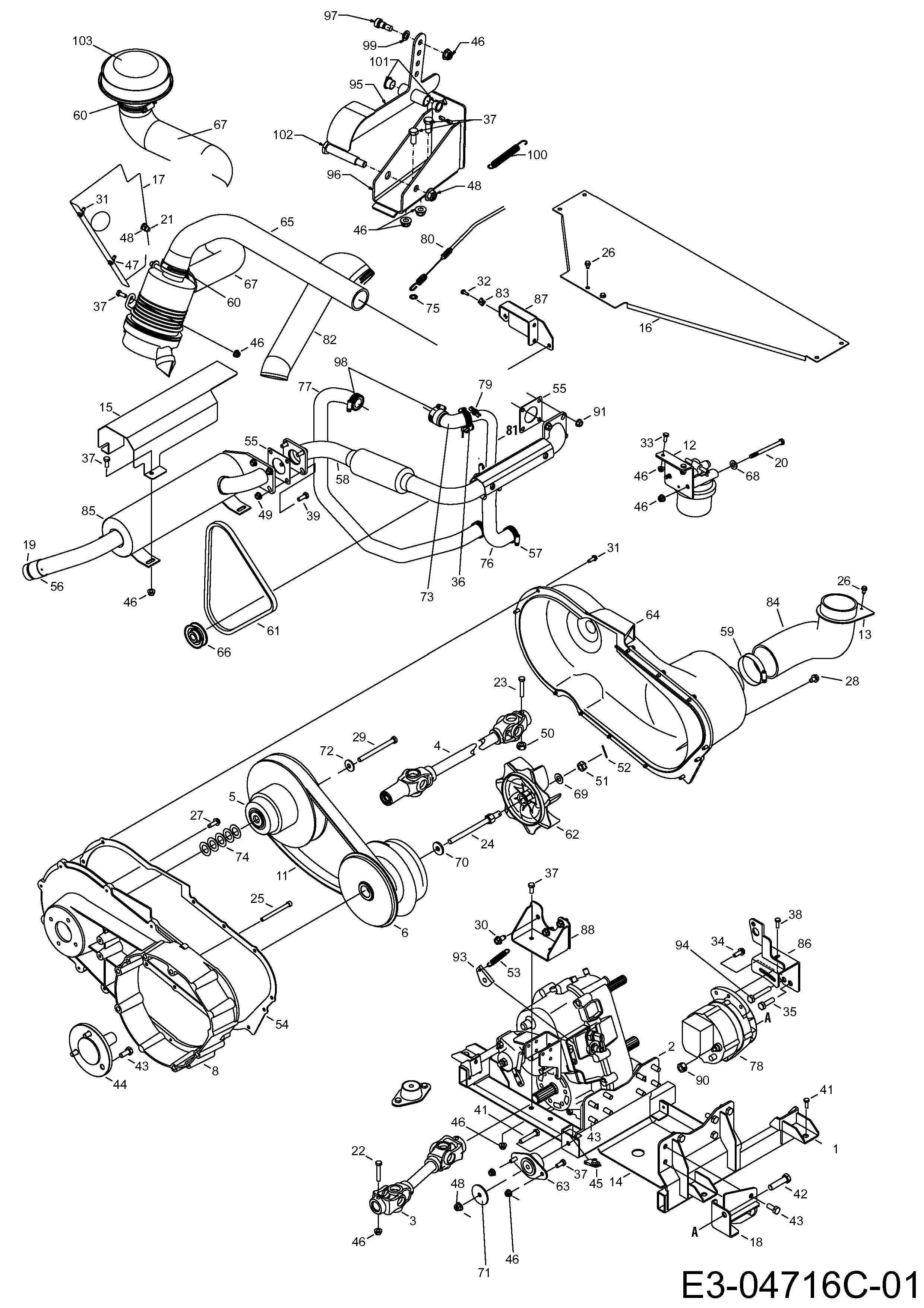

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	607-04310		N/A	POA
002	607-04311		N/A	POA
003	618-04306	UTV REAR PROPSHAFT ASSEMBLY	£691.61	Add
004	618-04314	UTV FRONT PROPSHAFT ASSEMBLY	£416.64	Add
005	618-04586B	GEARBOX DRIVEN CLUTCH MIDDLE SPLINE	£647.75	Add
006	618-04680	CLUTCH ASSY. DRIVER YANMAR	£666.12	Add
008	619-04207	HOUSING ASM	£413.52	Add
011	754-04125B	UTV TRANSMISSION DRIVE BELT	£110.42	Add
012	707-04714637	BRACKET:FILTER:FUEL:CAT 4X4	£25.42	Add
013	707-04991637	BRACKET:TUBE:CVT	£44.30	Add
014	707-05179	SHIELD OIL ENGINE	£49.07	Add
015	707-04891	SHIELD:HEAT	£74.25	Add
016	707-04969	PLATE-HEAT SHIELD:CAT	£101.99	Add
017	707-05257A		N/A	POA
018	607-04327		N/A	POA
019	751-10690	ARRESTOR CLAMP	£44.30	Add
020	710-0190	HHCS:5/16-18:4.00:GR5:STD	£5.31	Add
021	710-0216	HHCS:3/8-16:.75:GR5:STD	£3.59	Add
022	710-3103	SCRE.HHCS:5/16-18:2.00:GR5:STD	£3.16	Add
023	710-04653	HHCS 5/16-18:1.875	£14.89	Add
024	710-04657	HEX.SCREW:HHCS7/16-20:5.00GR5	£46.70	Add
025	710-04769	SCREW M10	£11.18	Add
026	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
027	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add
028	710-0603	SCR:B:5/16-12:0.500:HXINDWSH	£11.34	Add
029	710-04764	GEARBOX CLUTCH BOLT SHORT UTV	£20.32	Add
030	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
031	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
032	710-1003	SCR:B:#10-16:0.625:HXINDWSH:SP	£3.31	Add
033	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
034	710-3138	NO LONGER AVAILABLE	N/A	POA
035	710-1313	HHCS:M10-1.5:35mm:GR8.8:STD	£20.99	Add
036	726-0272	Clamp	£2.98	Add
037	710-3008	HEX BOLT	£3.03	Add
038	710-3015	SCREW HEX CAP	£3.33	Add
039	710-3038	BOLT	£9.82	Add
041	710-3144	SCREW	£3.28	Add
042	710-0489	SCREW-HEX	£12.98	Add
043	710-3208	SCREW HHCS:M10-1.5:25mm:GR8.8	£3.59	Add
044	711-04964	SHAFT OUTUT	£139.02	Add
045	712-04193	NUT 3/8-16	£16.41	Add
046	712-04063	FLANGED NUT	£4.20	Add
047	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
048	712-04065	NUT	£4.02	Add
049	712-3004A	HEX FLANGE NUT	£2.97	Add
050	712-3009	NUT:HEXLK:5/16-18:GRB:CTRLK	£2.98	Add
051	712-3012	NUT:HEX:1/2-20:GR5:SLOT	£4.80	Add
052	714-0111	COTTER PIN	£3.20	Add
053	732-04248	SPR:EXTN:.38 x 3.9 LG	£11.52	Add
054	721-04292	SEAL COVER	£75.35	Add
055	721-04167	Gasket	£45.27	Add
056	751-10689	ARRESTOR SCREEN	£27.47	Add
057	726-04114	HOSE CLAMP	£11.34	Add
058	751-10756	PIPE EXHAUST	£207.42	Add
059	726-04080	Clamp	£24.05	Add
060	726-0476	CLAMP-HOSE	£20.49	Add
061	754-04225	V-Belt	£55.05	Add
062	731-04275	IMPELLER BLADE	£26.00	Add
063	731-04667	MOUNT, ENGINE	£74.10	Add
064	731-06748	COVER-CVT	£60.27	Add
065	751-10994	HOSE AIR INLET	£66.72	Add
066	756-04379	PULLEY	£38.00	Add
067	751-11068	HOSE AIR INLET	£68.38	Add
068	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
069	736-0272	WASHER:FL:.510 X 1.000 X .060	£3.16	Add
070	736-0322	FI-WASH	£8.68	Add
071	736-04018	WASH:FLAT:.380x2.000x.120	£5.91	Add
072	736-0452	BELL-WASH 39 INCH	£8.68	Add
073	751-10894	TUBE UPPER RADIATOR	£39.13	Add
074	736-0566	WASHER FLAT	£9.58	Add
075	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add
076	751-10893	TUBE LOWER RADIATOR	£26.31	Add
077	751-10779	HOSE RADIATOR	£68.38	Add
078	725-04806	ALTERNATOR YANMAR	£381.97	Add
079	737-04232	PETCOCK COOLANT DRAIN	£25.02	Add
080	746-04540	CABLE-CONTROL THROTTLE YANMAR	£94.61	Add
081	750-04989	TUBE RADIATOR	£59.51	Add
082	751-10997	TUBE 20/800X10"	£89.09	Add
083	751B221535	CLAMP-CASING	£3.00	Add
084	751-10510	HOSE: AIR INLET 4X4 CAT	£114.50	Add
085	751-10152B	MUFFLER:4X4:CAT/KOHLER	£256.36	Add
086	607-04312		N/A	POA
087	607-04325A		N/A	POA
088	607-04326		N/A	POA
090	712-3022	NUT:HEXLK:1/2-13:GRB:CTRLK	£10.83	Add
091	712-3086	NUT:FLANGE:M8-1.25	£3.34	Add
093	707-05272	BRACKET SPRING	£14.81	Add
094	710-1238	SCREW	£3.20	Add
095	607-04188C		N/A	POA
096	707-04823C		N/A	POA
097	710-04027	Screw	£10.07	Add
098	726-0132	CLAMP, HOSE	£22.08	Add
099	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add
100	732-0611	SPR:EXTN:.38 OD x 3.6 LG	£5.34	Add
101	741-0491	BEARING-NYLINER	£12.94	Add
102	738-1011A	SHOULDER BOLT	£6.58	Add
103	751-11072	CAP AIR FILTER	£55.60	Add
