MTD011787

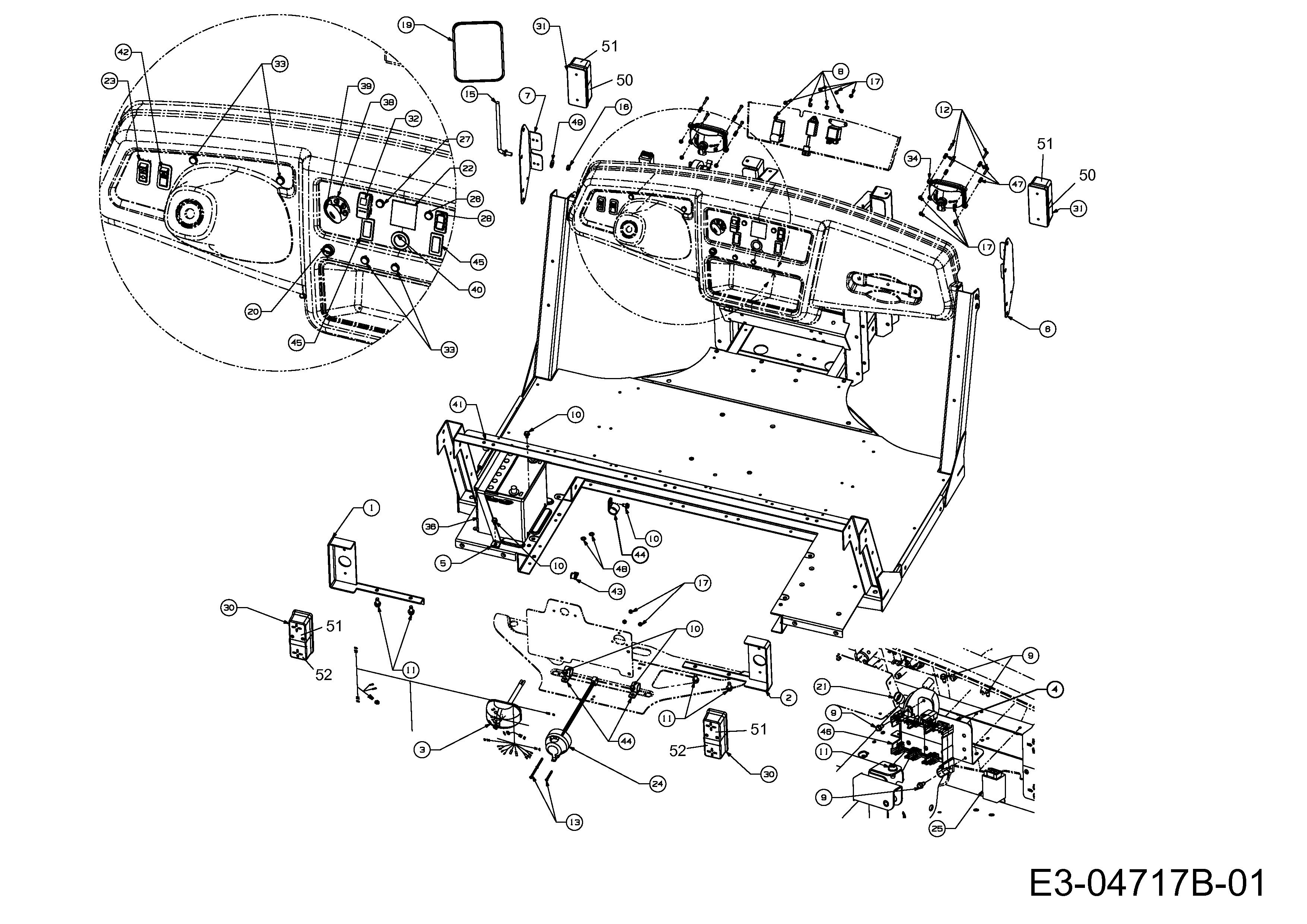

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	607-04269	LIGHT BRACKET ASM	£109.17	Add
002	607-04270	LIGHT BRACKET ASM	£102.48	Add
003	625-04052	LIGHT ASM-LICENSE PLT	£133.35	Add
004	707-04811	BRACKET MOUNT: FUSE	£54.96	Add
005	707-04870B		N/A	POA
006	707-05001A		N/A	POA
007	707-05002A		N/A	POA
008	710-0473	SCR:MACH:#10-24:0.500:TRUSPHI	£4.62	Add
009	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
010	710-0607	SELF TAP SCREW	£4.71	Add
011	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
012	710-0749	HHCS:#10-24:1.00:SPEC	£18.60	Add
013	710-1625	Screw	£21.14	Add
014	710-3008	HEX BOLT	£3.03	Add
015	711-04183	ROD:MNT:MIR	£57.96	Add
016	712-0116	HEX NUT	£3.96	Add
017	712-0161	NYLOK NUT #10-24	£6.05	Add
018	712-04063	FLANGED NUT	£4.20	Add
019	720-04029	MIRROR-SIDE:CE	£256.42	Add
020	725-04014	SWITCH-HORN	£195.97	Add
021	725-04015A	HORN-12V	£155.87	Add
022	725-04022B	METER:IND:HOUR SVC MNDR:NO LBL	£98.07	Add
023	725-04031	725-04031	£82.62	Add
024	725-04160	PLUG:TRAILER CONN:7 PIN	£84.87	Add
025	725-04211	FLASHER-TURN/HAZARD	£321.59	Add
026	725-04285	LIGHT-RED/REVERSE	£71.24	Add
027	725-04288	LIGHT-INDICATOR YELLOW LED	£54.66	Add
028	725-04352	SW:4X4:ROCKER UV	£78.47	Add
029	725-04440A	HARNESS UV 4X4	£407.57	Add
030	725-04486	LGT:RR:TAILLIGHT	£255.11	Add
031	725-04487	LAMP:UV:TURN:CE	£187.31	Add
032	725-04529	MASTER LIGHT SWITCH	£39.28	Add
033	725-04530	LAMP-IND:GREEN INCANDESCENT	£29.73	Add
034	725-04546	LAMP:HEAD:CE	£122.55	Add
035	725-04625	HARNESS WIRE	£52.05	Add
036	725-04514	BATTERY 12 V 725-3267	N/A	POA
037	725-05203		N/A	POA
038	725-1741	UTV IGNITION SWITCH	£31.51	Add
039	725-1745A	KEY SW UNIVERSAL	£8.09	Add
040	725-2003	RECEPTICAL-POWER 12V	£73.90	Add
041	725-3166	SWITCH SNAP MOUNT CLOSED/GREY	£15.69	Add
042	725-3279B	SWITCH HAZARD LAMP	£61.69	Add
043	726-0272	Clamp	£2.98	Add
044	726-0475	CLAMP-HOSE	£29.99	Add
045	731-04010	COVER	£13.85	Add
046	731-05490	RELAY HOLDER: 3 WAY	£150.44	Add
047	732-04414	COMP.SPRING:.310 X .710 X .041	£5.55	Add
048	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add
049	736-3072	WASH:FLAT:.38 x.93 x.110:HT	£8.27	Add
050	759-04171	LENS CLEAR	£45.31	Add
051	759-04170	LENS AMBER	£51.79	Add
052	759-04169	LENS RED	£35.61	Add
