MTD016003

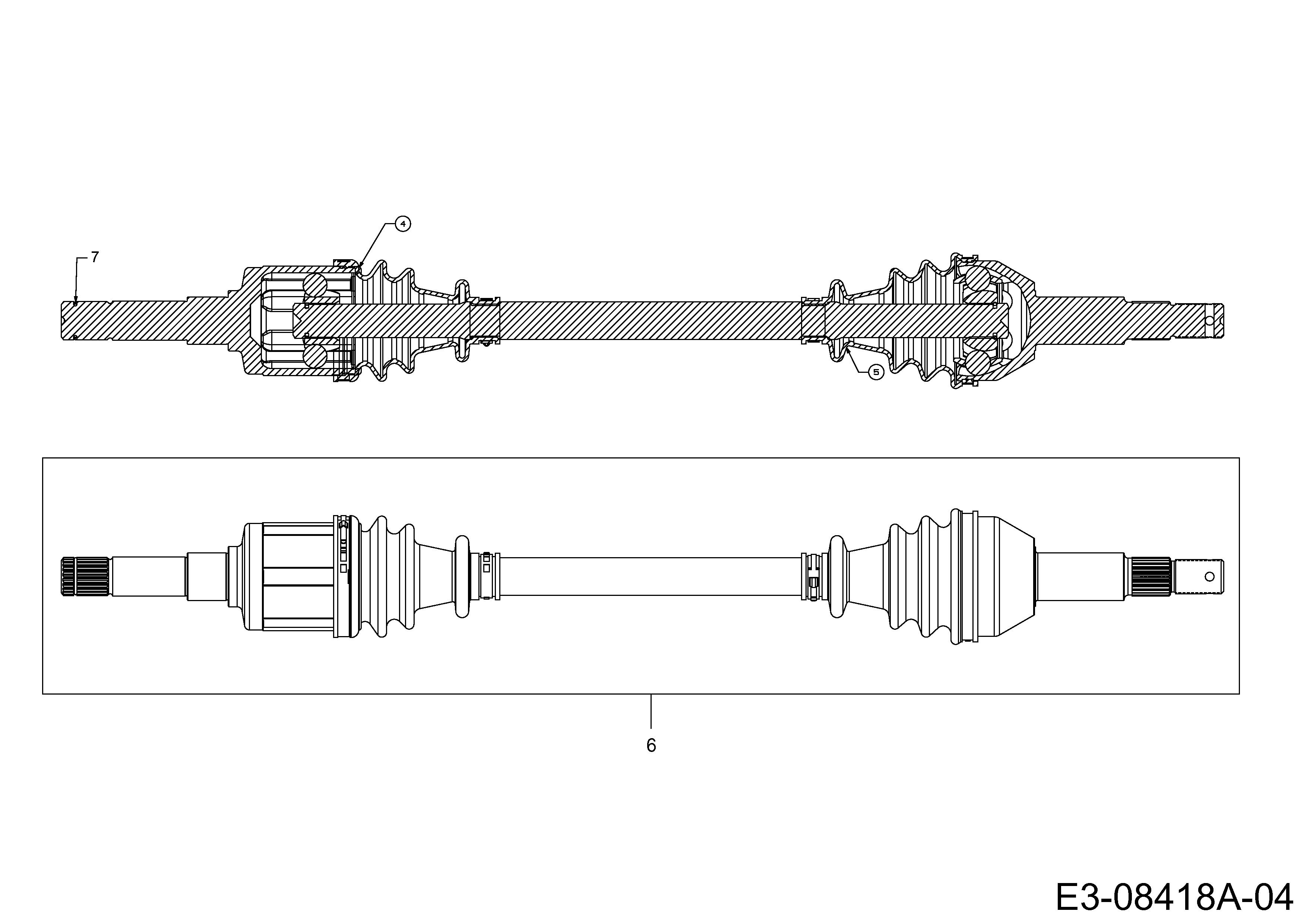

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016003

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
004 731-05082 BOOT:DOJ:KIT £89.00 Add
005 731-05083 BOOT:RZEPPA:KIT £89.00 Add
006 611-04063B UTV REAR DRIVE SHAFT £449.35 Add
