MTD016004

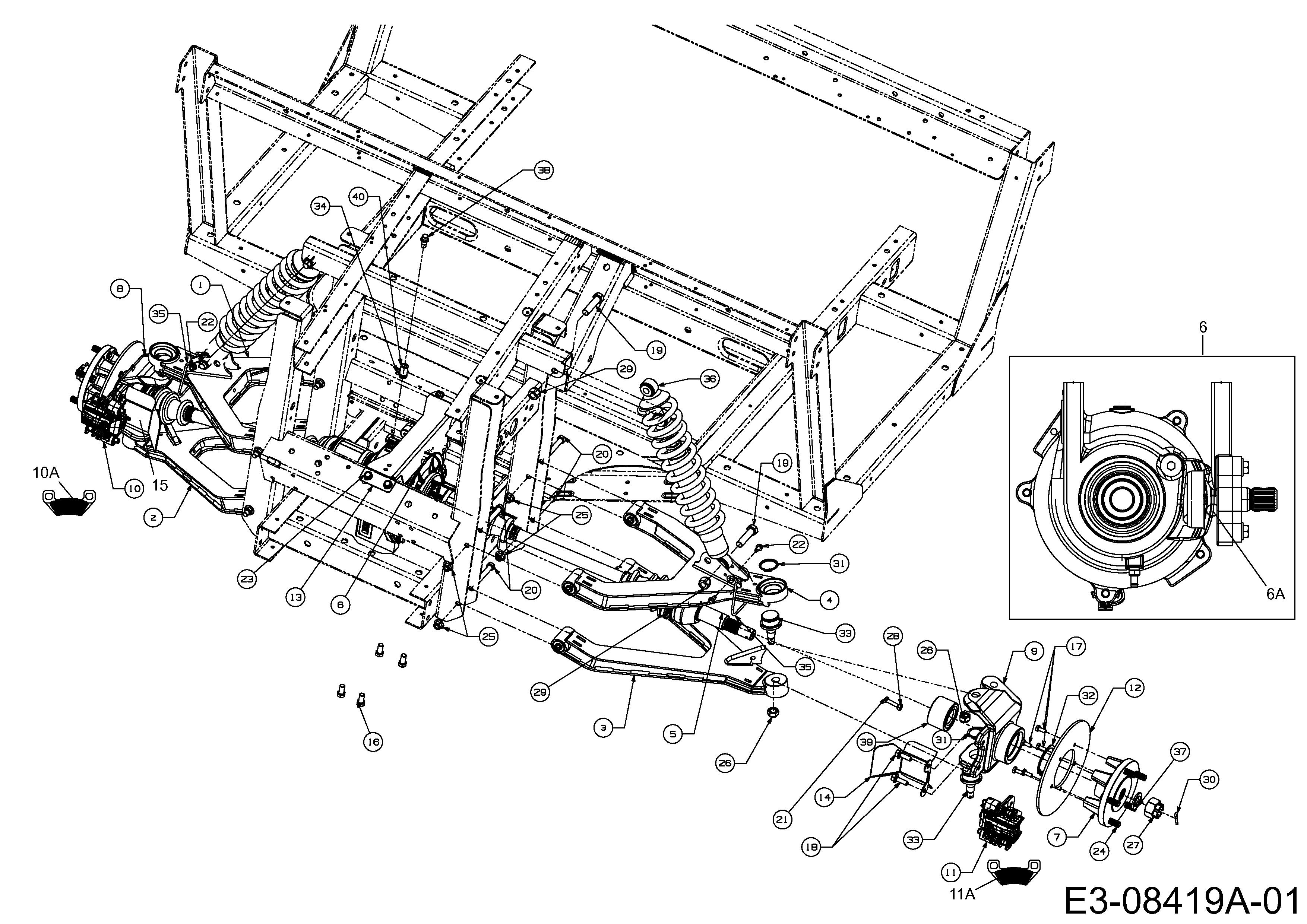

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016004

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 607-04397A CONTROL ASM. UPPER R/FRT £575.75 Add
002 607-04398A CONT ASSEMBLY 607-04145A £351.92 Add
003 607-04399A CONTROL ASM £386.97 Add
004 607-04400A CONTROL ASM UPPER £559.56 Add
005 611-04071A UTV FRONT DRIVESHAFT £407.83 Add
006 618-04316A DIFF ASSEMBLY £757.06 Add
007 618-04489 HUB ASM-WHEEL 4X4 £155.01 Add
008 619-04137B UTV Hub R/H £265.50 Add
009 619-04142B HOUSING KNUCKLE L/FRONT MACHANICAL £338.88 Add
010 661-04043 BRAKE ASM-CALIPER FRONT RH £155.97 Add
011 661-04044 BRAKE ASM-CALIPER FRONT LH £155.97 Add
012 707-04436A BRAKE DISC £72.11 Add
013 707-04604B N/A POA
014 707-04832637 BRACKET £83.37 Add
015 707-04833 BRACKET:SHIELD:STRG £98.36 Add
016 710-0216 HHCS:3/8-16:.75:GR5:STD £3.59 Add
017 710-0433 HEX BOLT £6.66 Add
018 710-04639 SCREW-HEX £24.91 Add
019 710-0489 SCREW-HEX £12.98 Add
020 710-0521 SCREW HHCS:3/8-16:3.00:GR8:STD £5.19 Add
021 710-0597 HEX SEMS SCREW £2.97 Add
022 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
023 710-0607 SELF TAP SCREW £4.71 Add
024 710-0852 BOLT £5.63 Add
025 712-04065 NUT £4.02 Add
026 712-04086 Nut £14.01 Add
027 712-04109 NUT:SLOTTED:22X1.5 £33.41 Add
028 712-3006 NUT £2.77 Add
029 712-3083 NUT £2.79 Add
030 714-0162 COTTER PIN £2.79 Add
031 716-04039 RETAIN RING 34X1.6 £18.06 Add
032 716-04055 Circlip £25.25 Add
033 723-04024 UTV BALL JOINT £51.47 Add
034 726-04041 CLAMP-HOSE £6.63 Add
035 732-04383 WIRE: BRAKE LINE £24.51 Add
036 732-04424B UTV FRONT SHOCK ABSORBER £189.50 Add
037 736-0291 WASHER-FL £15.86 Add
038 737-0296 VALVE,INTAKE £21.95 Add
039 741-04166 UTV HUB BEARING £154.91 Add
040 751-10350 FUEL LINE N/A POA
06A 092.60.003 FRONT DIFF OIL SEAL UTV £35.82 Add
10A 761-04064 PADS BRAKE 2 PADS £75.29 Add
11A 761-04064 PADS BRAKE 2 PADS £75.29 Add
