MTD010126

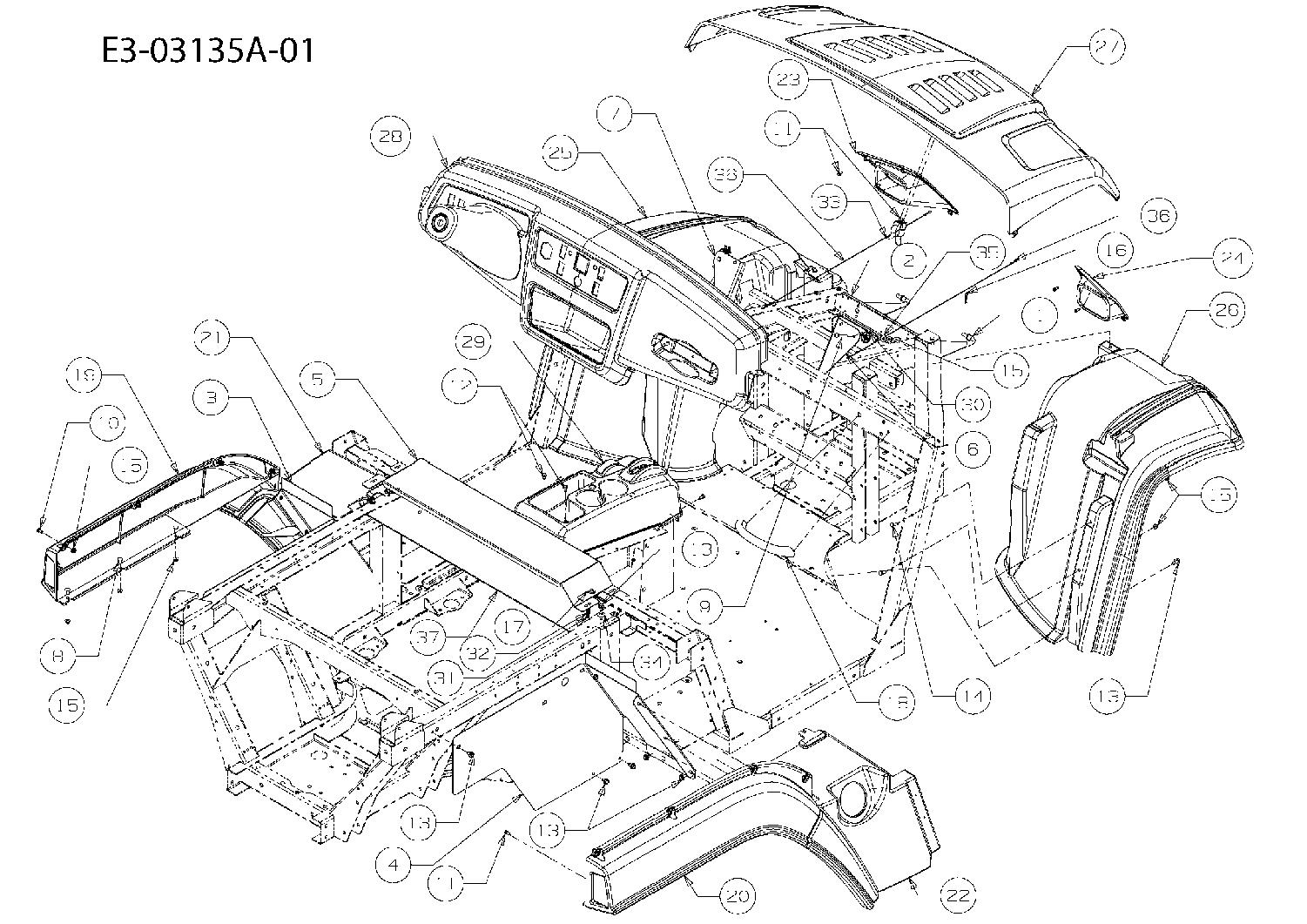

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	607-04224	ROD ASM:HOOD MT	£73.46	Add
002	707-04484		N/A	POA
003	707-04728B-S	REAR INNER WHELL ARCH (UTV) RH 707-04728A	£147.49	Add
004	707-04729B-S	REAR INNER WHEEL ARCHES (UTV) RH 707-04729A	£99.02	Add
005	707-04748		N/A	POA
006	707-04779	BRACKET, HOOD/DASH	£39.93	Add
007	707-04782	BRACKET, HOOD/DASH	£39.93	Add
008	710-0134	BOLT	£3.03	Add
009	710-0136	Bolt, Hex 1/4-20 x 1-3/4" 1509-069	£3.58	Add
010	710-0286	SCREW	£3.31	Add
011	710-04261	SCR:HL:#12-16:.50:HXINDWISH	£5.50	Add
012	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
013	710-0607	SELF TAP SCREW	£4.71	Add
014	710-3015	SCREW HEX CAP	£3.33	Add
015	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
016	714-0101	PIN:COT:INT:.08 X 1.42	£3.58	Add
017	726-3056	LATCH 1/4 TURN	£13.39	Add
018	731-04174	HNDL:BAG:W/SCR 400/500 S	£58.97	Add
019	731-05280A	FENDER LH RR	£301.50	Add
020	731-05281A	FENDER RH RR	£226.34	Add
021	731-05282	FENDER-REAR	£144.30	Add
022	731-05283	FENDER:LOWER RH RR	£136.31	Add
023	731-05284	BZL, HDLT LH	£50.12	Add
024	731-05285	BZL, HDLT RH	£61.77	Add
025	731-05286B	FENDER:LH 4X4	£254.47	Add
026	731-05287B	FENDER:RH 4X4	£212.29	Add
027	731-05289	UTV BONNET CUB CADET YELLOW	£281.17	Add
028	731-05322	Instrument panel	£134.35	Add
029	731-05436	PLATE-BATTERY	£64.86	Add
030	731-3232	ROLLER,HOOD LATCH	£19.48	Add
031	732-0936	CLIP-SPRING	£12.34	Add
032	732-0937	COMPRESSION SPRING	£11.98	Add
033	732-1178	Spring	£34.56	Add
034	736-0242	BELL WASHER	£3.72	Add
035	736-0342	FLAT WASHER	£2.97	Add
036	746-04328	CABLE, HOOD	£22.79	Add
037	751-10435	INSULATOR:COVER	£61.59	Add
