MTD010091

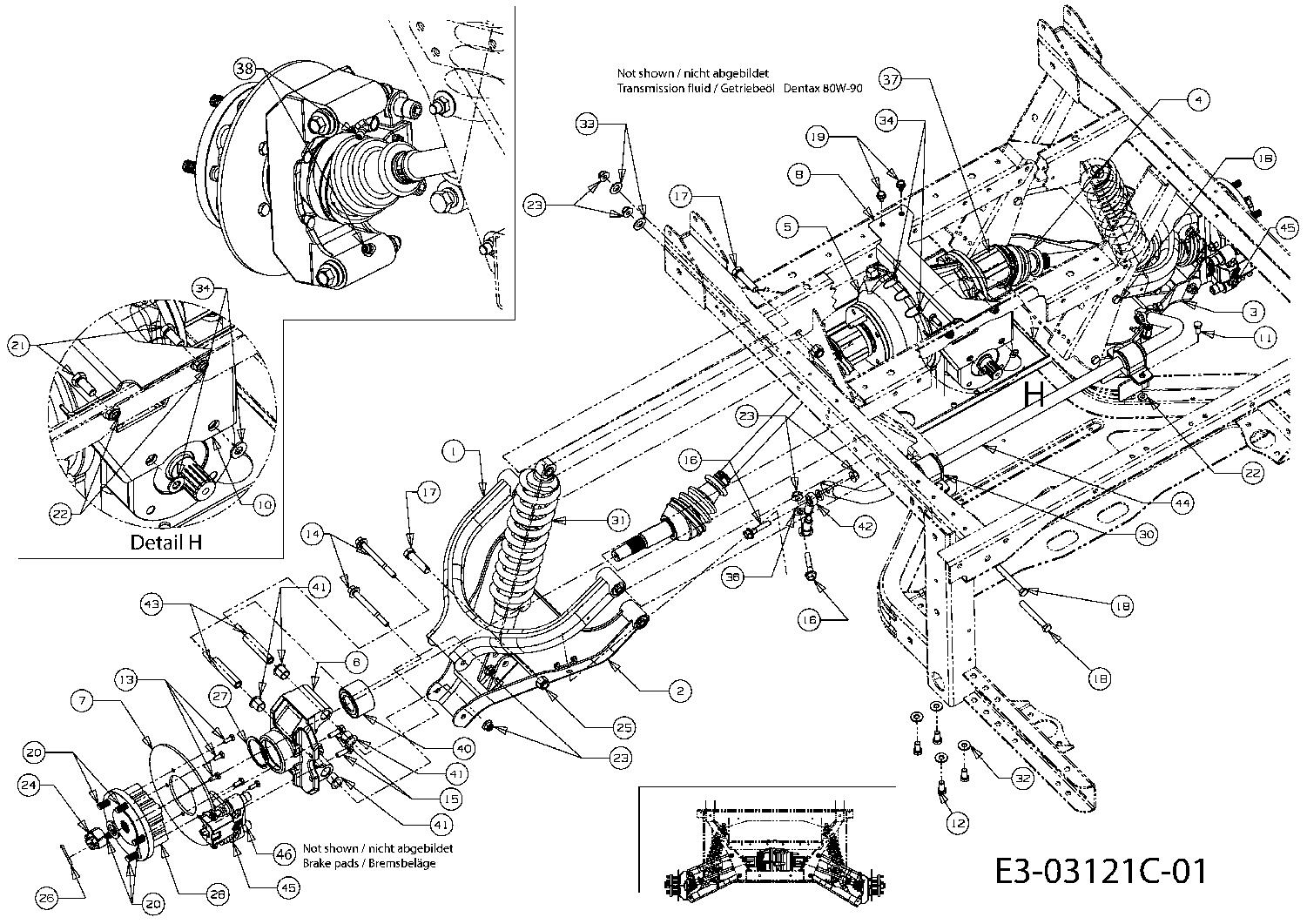

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010091

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 607-04395 CONT ASSEMBLY 607-04162A £336.66 Add
002 607-04394A CONT ASSEMBLY 607-04163A £424.87 Add
003 607-04396A CONTROL ASM LH 607-04169A £450.18 Add
004 611-04063B UTV REAR DRIVE SHAFT £449.35 Add
005 618-04236 DIFF ASSEMBLY, 4X4 UV,COMPLETE N/A POA
006 759-05065 KIT UTV REAR KNUCKLE HSG £301.01 Add
007 707-04436A BRAKE DISC £72.11 Add
008 707-04603A BRACKET UTV 4X4 £53.80 Add
009 707-04655 MOUNT:SWAY BAR £53.09 Add
010 707-05018637 BRACKET DIFF:RR 707-05018 N/A POA
011 710-0157 HHCS:5/16-24:.75:GR5:STD £6.99 Add
012 710-0216 HHCS:3/8-16:.75:GR5:STD £3.59 Add
013 710-0433 HEX BOLT £6.66 Add
014 710-04637 SCREW-HEX £29.34 Add
015 710-04639 SCREW-HEX £24.91 Add
016 710-04640 SCREW-HEX £14.88 Add
017 710-0489 SCREW-HEX £12.98 Add
018 710-0521 SCREW HHCS:3/8-16:3.00:GR8:STD £5.19 Add
019 710-0607 SELF TAP SCREW £4.71 Add
020 710-0852 BOLT £5.63 Add
021 710-3008 HEX BOLT £3.03 Add
022 712-04063 FLANGED NUT £4.20 Add
023 712-04065 NUT £4.02 Add
024 712-04109 NUT:SLOTTED:22X1.5 £33.41 Add
025 712-3083 NUT £2.79 Add
026 714-0162 COTTER PIN £2.79 Add
027 716-04055 Circlip £25.25 Add
028 618-04489 HUB ASM-WHEEL 4X4 £155.01 Add
029 723-3021 BREATHER £28.20 Add
030 731-05352 bush £68.52 Add
031 732-04423 SHABS-5.0 STROKE:RR 4X4 £218.74 Add
032 736-0300 WASHER £2.81 Add
033 736-0272 WASHER:FL:.510 X 1.000 X .060 £3.16 Add
