MTD018061

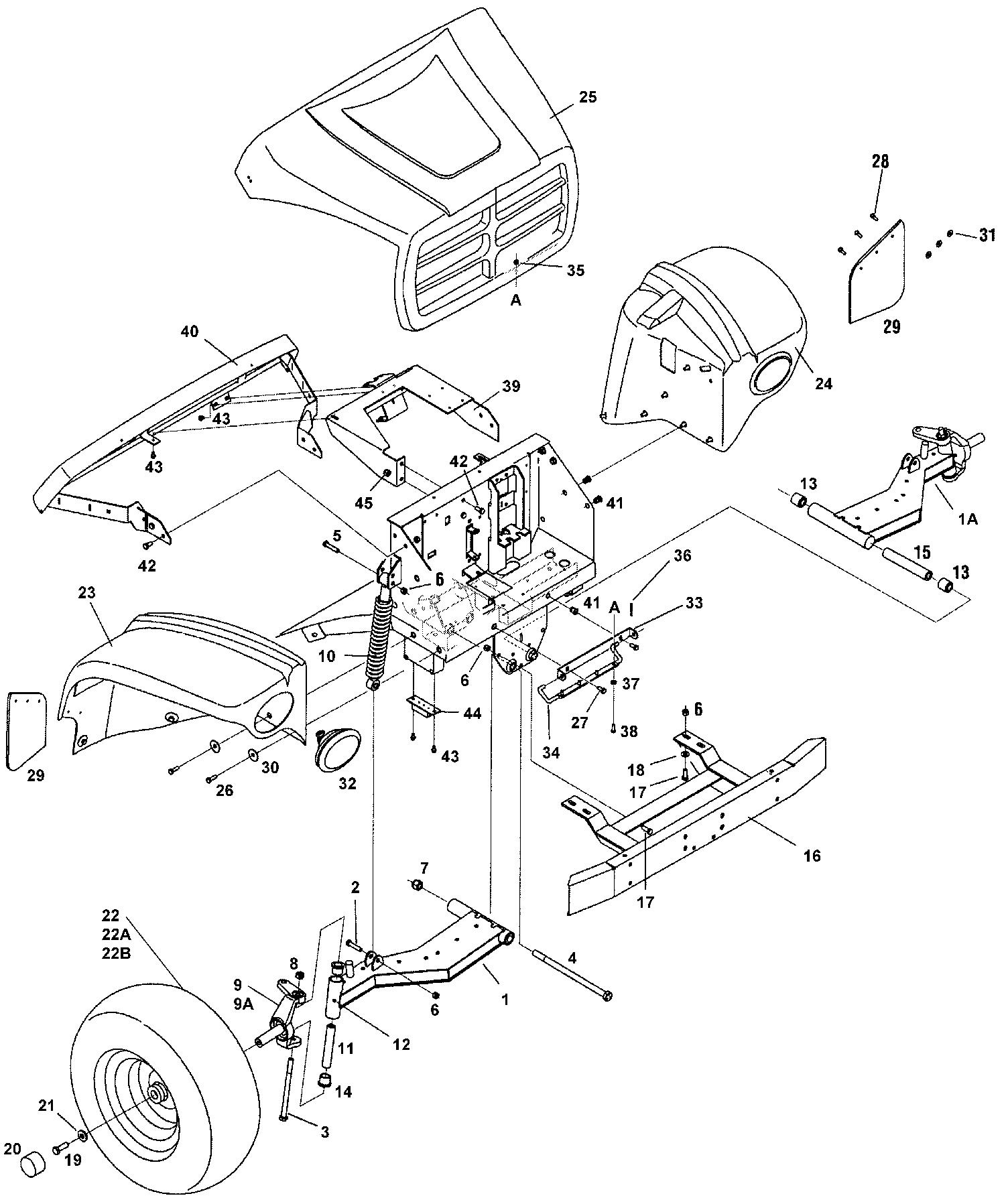

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD018061

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 607-04004 AXLE ASSEMBLY, RH FRONT N/A POA
002 710-0347 HEX SCR £3.72 Add
003 710-04012 SCREW-HEX CAP £58.43 Add
004 710-04120 HEX SCREW 5/8-11X11.13 N/A POA
005 710-3011 BOLT 3/8 X 2-1/4 TYPE 5 £5.52 Add
006 712-04065 NUT £4.02 Add
007 712-3016 NUT:HEXLK:5/8-11:GR5:NYLON £11.98 Add
008 712-3022 NUT:HEXLK:1/2-13:GRB:CTRLK £10.83 Add
009 607-04106 KNUCKLE-STEERING RH N/A POA
010 732-04069 SHOCK ABSORBER N/A POA
011 750-1388 TUBE N/A POA
012 737-04006 FITTING-GREASE TC-792137 £22.95 Add
013 741-0758 BEARING .63X1.19X1.25 N/A POA
014 741-0762 BUSHING-FLANGE N/A POA
015 750-1357 SPACER N/A POA
016 607-0037 607-0037-0637 £314.09 Add
017 710-0514 HEX BOLT £3.81 Add
018 736-0300 WASHER £2.81 Add
019 710-3181 HHCS:1/2-13:1.50:GR5:STD £4.50 Add
01A 607-04005 AXLE ASM-FRONT LH N/A POA
020 731-04029 DESTPROOF CAP £46.23 Add
021 736-04019 WASH:FL:.531X1.25X.181 £20.29 Add
022 634-0352 WHEEL ASSY N/A POA
023 731-04406 PANEL HANDLE 7 STYLE £477.00 Add
024 731-04407 FENDER-FRONT LH YEL £496.23 Add
025 731-04749 HOOD ASSY £525.57 Add
026 710-0376 SCREW HEX CAP 5/16 £9.02 Add
027 710-3008 HEX BOLT £3.03 Add
028 728-04004 RIVET, POP £7.23 Add
029 735-04003 FLAP-MUD FRONT B/C N/A POA
030 736-0356 BELL WASHER £3.95 Add
031 736-0400 FLAT WASHER .194x.620Dx.63TH £3.77 Add
032 625-04017 HEADLIGHT ASM-OVAL £111.87 Add
033 707-04165 N/A POA
034 711-04139 ROD, HOOD MOUNTING N/A POA
035 712-0324 HEX. INS L NUT £3.69 Add
036 714-0101 PIN:COT:INT:.08 X 1.42 £3.58 Add
037 736-3020 WASH:FLAT:.271 X.630 X.065 £2.98 Add
038 710-3015 SCREW HEX CAP £3.33 Add
039 607-04062 N/A POA
040 607-04065 N/A POA
041 712-0703A INSERT-NUT 5/16- £16.41 Add
042 710-0216 HHCS:3/8-16:.75:GR5:STD £3.59 Add
043 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
044 731-04016 BUMPER SUSPENSION £32.45 Add
045 712-0431 NUT £3.20 Add
09A 607-04105 KNUCKLE-STEERING LH N/A POA
22A 634-04029 RIM ASM-TIRE & BEG £362.30 Add
22B 634-04030 WHEEL ASSY. LEFT N/A POA
