MTD010166

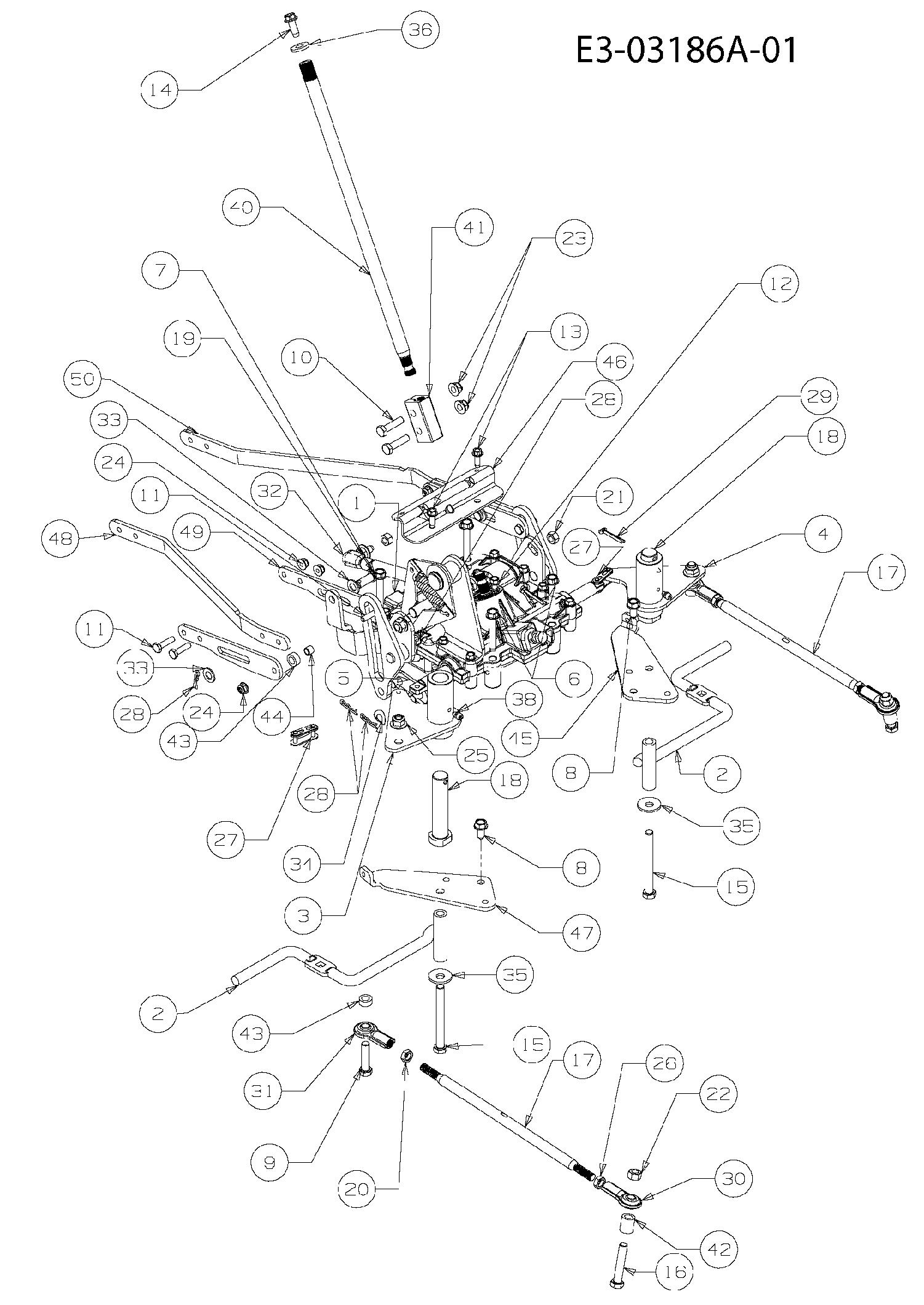

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04634A	STRG ASM:SYNCHRO:HYDRO 618-04430	£1,343.82	Add
002	647-04080A		N/A	POA
003	683-04282A	ARM ASM:STEERING:RH	£75.56	Add
004	759-04221	ARM ASM:STEERING:LH 683-04284A	£155.79	Add
005	683-04332	LINK ASM-STEERING BOX:HYDRO	£57.03	Add
006	710-04006	SCREW:TT:5/16-18:2.00HXINDWSH	£3.39	Add
007	710-04389	SCREW:TT:5/16-18:2.25HXINDWSH	£2.97	Add
008	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
009	710-0520	SCREW HEX CAP 3/8 (RED)	£3.51	Add
010	710-0528	SCREW (DNR)	£3.55	Add
011	710-0597	HEX SEMS SCREW	£2.97	Add
012	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
013	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
014	710-0650	SCREW	£3.58	Add
015	710-3085	HHCS 3/8 16 3.50 GR5 STD	£3.55	Add
016	710-3144	SCREW	£3.28	Add
017	711-04472	ROD-STEER	£42.49	Add
018	711-04562	STEERING BOLT	£43.47	Add
019	711-04722	PIN-CLEVIS: .375 DIA X .969	£35.65	Add
020	712-0312A	NUT:JAM:3/8-24 LH:GR2	N/A	POA
021	712-0365	NUT:HEXLK:M8 x 1.25:GR.9	£4.76	Add
022	712-0375	NUT:HEXLK:3/8-16:GRA:CTRLK	£3.51	Add
023	712-04063	FLANGED NUT	£4.20	Add
024	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
025	712-04065	NUT	£4.02	Add
026	712-3001	NUT:JAM:3/8-24:GR2	£3.26	Add
027	713-04037	LINK-CONNECTOR #41 C	£26.25	Add
028	714-0104	PIN INTERNAL COTTER	£2.78	Add
029	714-04039	PIN:COT:5/32:1.25	£4.70	Add
030	723-04035	END:ROD:B/JNT:.375	£41.28	Add
031	723-04036	END-ROD:B/JNT LH	£34.73	Add
032	727-0626A	CYL:DAMPER	£111.14	Add
033	736-0185	FLAT WASHER (RED)	£3.59	Add
034	736-0286	WASHER - SPECIAL 1552-008	£3.59	Add
035	736-0452	BELL-WASH 39 INCH	£8.68	Add
036	736-3004	FLAT WASHER	£2.77	Add
038	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
040	738-04189	SHF-STEERING:.625 OD x 17.281 (OBSOLETE)	N/A
041	748-04139	BLK:SHFT:STRG	£39.31	Add
042	750-04676	SPACER .385IDX.630 OD X .75 LG	£20.17	Add
043	750-04776	SPACER .380ID X.625 OD X .265	£10.66	Add
044	750-04777	SPACER .260IDX.372 OD X .33	£16.20	Add
045	783-04798		N/A	POA
046	783-04799		N/A	POA
047	783-05140		N/A	POA
048	783-05380		N/A	POA
049	783-05381	BRACKET:ADJUST:HYDRO STEERING	£42.32	Add
050	783-05404	LINK:STEERING:HYDRO:LH	£59.87	Add
