MTD012658

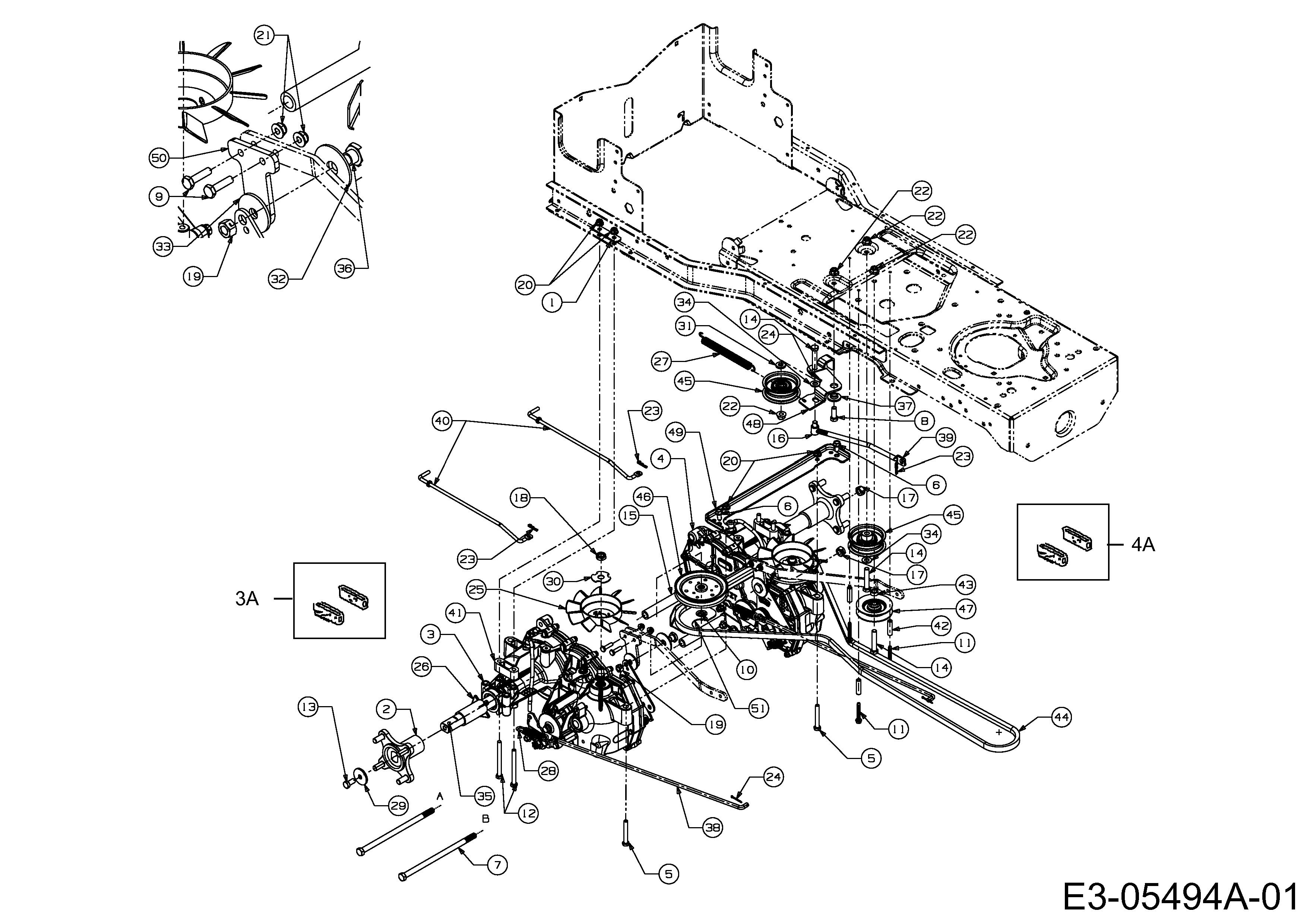

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	17840	TRANSAXLE BRACKET REINFORCE	£14.44	Add
002	618-04317	HUB ASSY-WHEEL	£103.38	Add
003	618-04339A	TRANS ASM:HYDRO:ZTURN:RH	£1,182.37	Add
004	618-04342A	TRANS ASM:HYDRO:LH 4SZ	£1,148.94	Add
005	710-0395	SCRE.HHCS:5/16-18:2.25:GR2:STD	£4.62	Add
006	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
007	710-04648	Screw	N/A	POA
008	710-0514	HEX BOLT	£3.81	Add
009	710-0597	HEX SEMS SCREW	£2.97	Add
010	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
011	710-1026	SCREW	£3.91	Add
012	710-1266	SCREW HHCS:5/16-18:3.5:GR5:STD	£4.70	Add
013	710-3119	BOLT-HEX PATCH 3/8-16 X .75 GR	£17.82	Add
014	710-3144	SCREW	£3.28	Add
015	711-04554	SPACER-PULLEY	N/A	POA
016	711-0832	FERRULE:3/8-24x.375 DIA:HT TRT	£13.94	Add
017	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
018	712-0346	NO LONGER AVAILABLE	N/A	POA
019	712-0375	NUT:HEXLK:3/8-16:GRA:CTRLK	£3.51	Add
020	712-04063	FLANGED NUT	£4.20	Add
021	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
022	712-04065	NUT	£4.02	Add
023	714-0104	PIN INTERNAL COTTER	£2.78	Add
024	714-0111	COTTER PIN	£3.20	Add
025	731-05846	FAN-HYDRO: I SERIES	£46.44	Add
026	731-06274	SLEEVE	N/A	POA
027	732-04579	EXTENSION SPRING (OBSOLETE) (OBSOLETE)	N/A
028	732-0716D	SPRING EXTENSION	£14.42	Add
029	736-0227	WASH:FLAT:.390x1.500x.134	£10.28	Add
030	736-04263	WASHER:LOCK:TRANS HYDRO	£5.62	Add
031	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
032	736-3027	WASH:FL:.531 X 1.75 X .090	£3.82	Add
033	736-3039	WASH:FLAT:.406 x 1.5 x .105	£2.00	Add
034	736-3050	NO LONGER AVAILABLE	N/A	POA
035	737-04254	GRES:ANTI-SEIZE	N/A	POA
036	738-0143	SHOULDER BOLT	£12.24	Add
037	738-0347	SPACER	£4.16	Add
038	747-04584A	ROD-BRAKE	£32.24	Add
039	747-04598A	ROD-ENGAGE DRIVE	N/A	POA
03A	717-0678	PAD	£12.86	Add
040	747-04729	BRKT:BYPASS	£50.68	Add
041	748-04155	SPACER-PULLEY	N/A	POA
042	750-04456	SPACER	£5.75	Add
043	750-04776	SPACER .380ID X.625 OD X .265	£10.66	Add
044	754-04134	V BELT	£45.12	Add
045	756-04224	IDLER PULLEY	£28.15	Add
046	756-04274	Tension idler	£72.06	Add
047	756-04325	PULLEY	£35.65	Add
048	783-04570A	KEEPR:BELT:IDLR	N/A	POA
049	783-05330A		N/A	POA
04A	717-0678	PAD	£12.86	Add
050	783-05446A	BRACKET	N/A	POA
051	783-05473		N/A	POA
