MTD011013

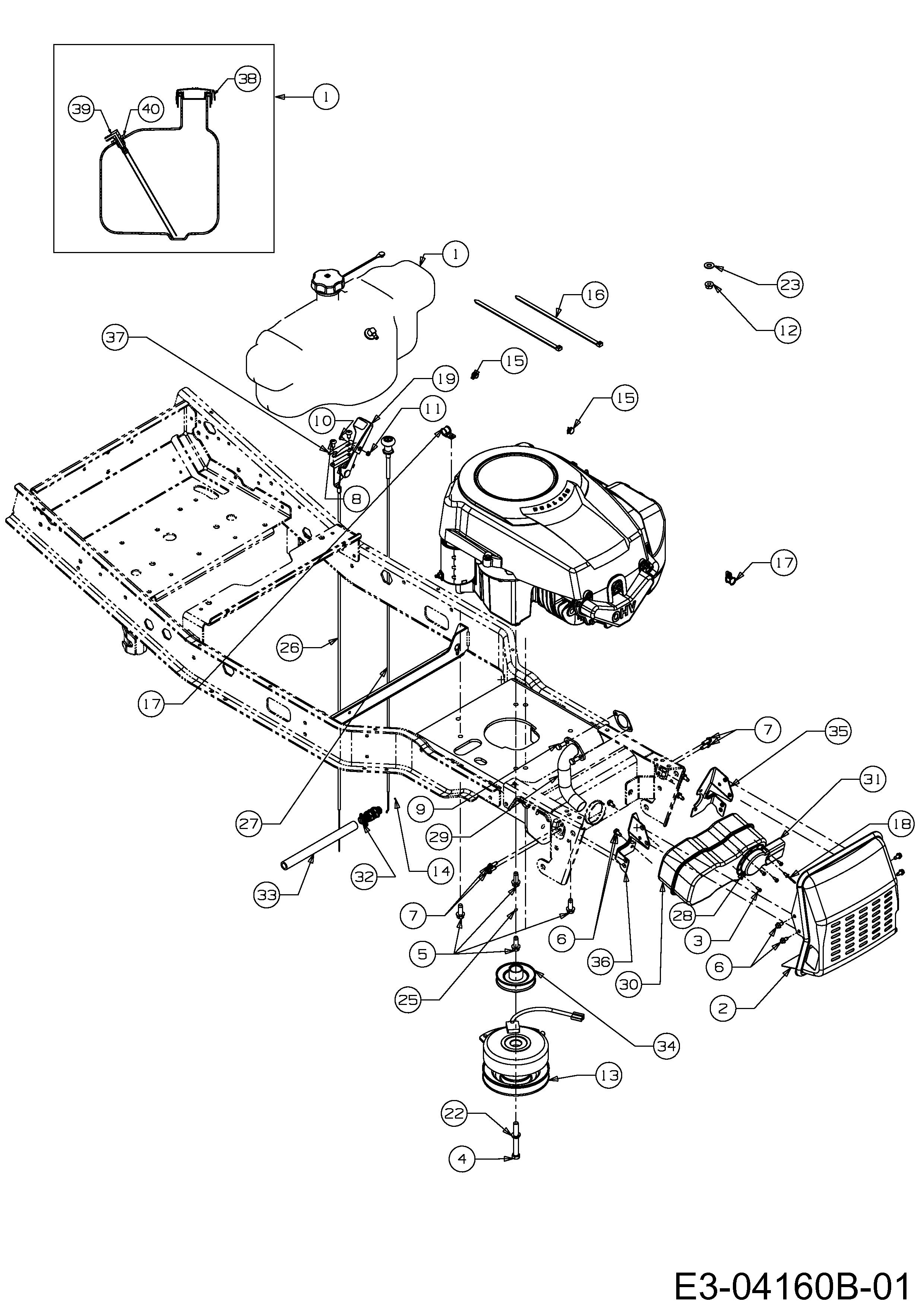

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	651-04209	TANK ASM:FUEL 3,5 GAL:MONO LY	£144.64	Add
002	683-04256	SHLD ASM:MFLR	N/A	POA
003	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
004	710-04379A	SCREW	£13.79	Add
005	710-04683	SCR:TT:3/8-16:1.000:HXINDWSH	£2.28	Add
006	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
007	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
008	710-1017	TAP SCREW	£2.97	Add
009	710-3008	HEX BOLT	£3.03	Add
010	710-3217	SCR:MACH:#8-32:0.375:TRUSPHI	£3.33	Add
011	712-0142	NUT:HEX:#8-32:GRA	£3.24	Add
012	712-3005	NUT:FLGLK:3/8-16:GR5	£3.49	Add
013	717-05000	CLU:ELEC:PTO 46/50	£494.06	Add
015	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
016	726-0230	TIE:CBL:36.0 LONG	£8.93	Add
017	726-0272	Clamp	£2.98	Add
018	728-04000	RIV:POP:.188 DIA x .300 L	£4.64	Add
019	731-04914	KNOB:THROTTLE CONTROL	£34.92	Add
022	736-0171	WASHER	£2.93	Add
023	736-0300	WASHER	£2.81	Add
026	746-04161	CBL:THROT/CHOKE:39,0" LG x.62	£39.49	Add
027	746-1085A	CONT:CHOKE:37.5 LG x 2.0 EXT	£48.37	Add
028	751-0564B	DEFLECTOR:MUFFLER	£15.24	Add
029	751-10017	PIPE EXH KOHLER COURAGE	£80.83	Add
030	751-10162	MFLR:SINGLE INLET	£118.73	Add
031	751-10353	DEFLECTOR EXTENSION	£30.63	Add
032	751-10517A	OIL DRAIN	£38.87	Add
033	751-10831	HOSE:EXTN:OIL DRAIN	N/A	POA
034	756-0978B	PULLEY ENGINE ELECT. PTO	£83.07	Add
035	783-04870637	BRACKET MUFFLER L/H BLACK	£55.50	Add
036	783-04872637	BRACKET MUFFLER R/H BLACK	£60.15	Add
037	783-06387	BRKT:CONT:THROT:KOHL/B&S SNGL	N/A	POA
038	751-12428	FUEL CAP VENTED	£37.96	Add
039	751-10442	INTAKE TUBE	£27.23	Add
040	735-0149	BUSHING	£9.50	Add
