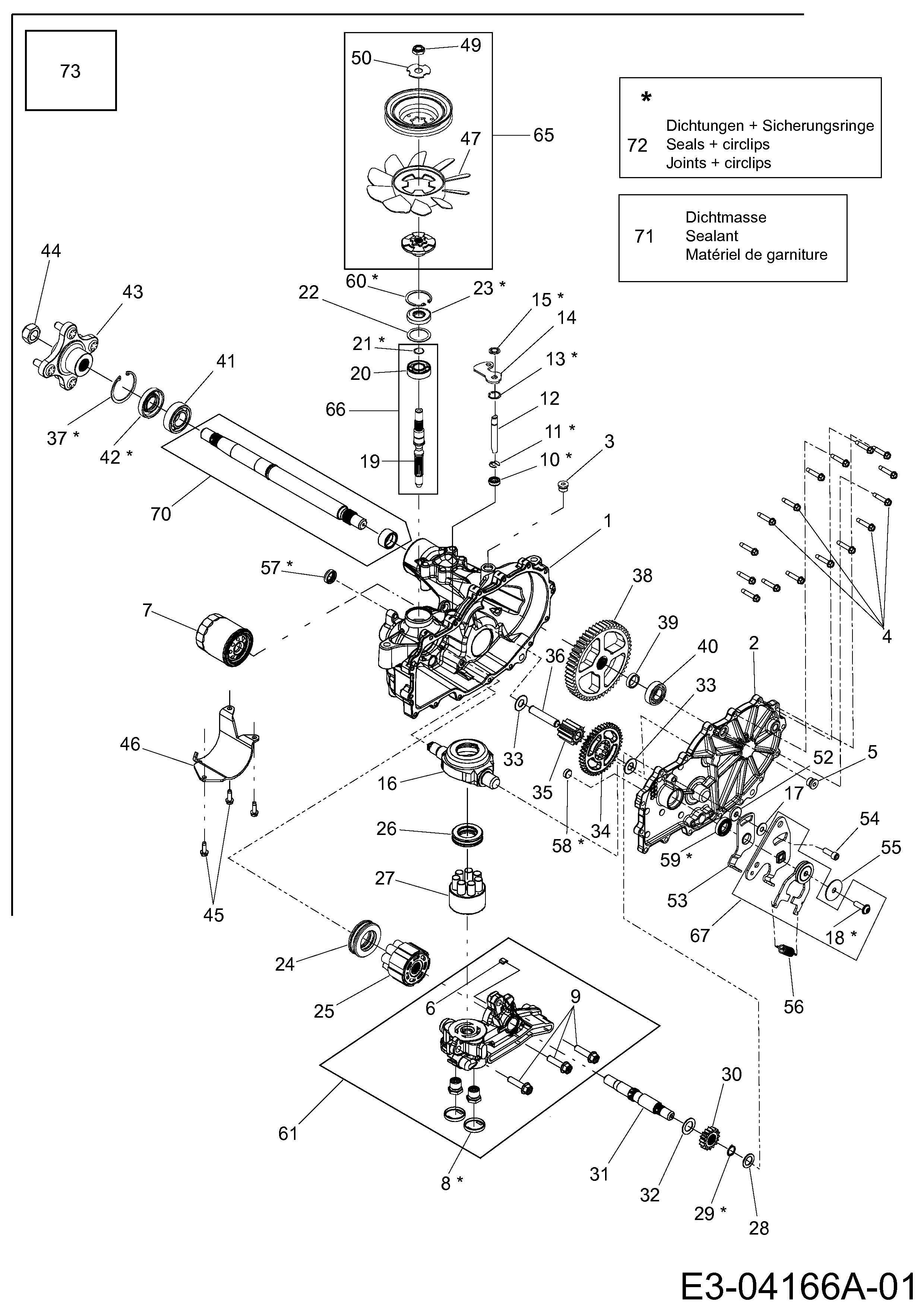

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
HG-71821
|
HOUSING ASSEMBLY, MAIN
|
N/A
|
POA
|
|
002
|
HG-71571
|
SIDE COVER ASSEMBLY
|
N/A
|
POA
|
|
003
|
90051105600
|
PLUG W/RING
|
£28.82
|
Add
|
|
004
|
HG-51190
|
HEXFLANGE SCREW 1/4-20X1.25
|
£8.22
|
Add
|
|
005
|
90051105600
|
PLUG W/RING
|
£28.82
|
Add
|
|
006
|
HG-51448
|
PLATE, BYPASS
|
N/A
|
POA
|
|
007
|
HG-52114
|
OIL FILTER
|
£55.71
|
Add
|
|
008
|
HG-52162
|
SEAL, PLUG
|
N/A
|
POA
|
|
009
|
HG-52137
|
SCREW-SHLD
|
N/A
|
POA
|
|
010
|
HG-51626
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
011
|
HG-51628
|
RING, RETAINING
|
£11.80
|
Add
|
|
012
|
HG-52136
|
ROD, BYPASS
|
N/A
|
POA
|
|
013
|
HG-51627
|
Circlip
|
N/A
|
POA
|
|
014
|
HG-52742
|
ARM, BYPASS
|
N/A
|
POA
|
|
015
|
HG-51630
|
RING, RETAINING
|
£9.40
|
Add
|
|
016
|
HG-51048
|
SWASHPLATE,TRUNNION MACHINED
|
£188.08
|
Add
|
|
017
|
736-0371
|
WASH:THRST:.343 X .880 X .062
|
£3.20
|
Add
|
|
018
|
HG-51812
|
SCREW, PATCH
|
£16.42
|
Add
|
|
019
|
HG-51062
|
SHAFT,INPUT
|
£255.66
|
Add
|
|
020
|
HG-50315
|
BALL BRG 17MMIDX40MMODX12MM
|
£48.43
|
Add
|
|
021
|
HG-2000022
|
RING WIRE RETAINING
|
£9.89
|
Add
|
|
022
|
HG-50951
|
SPACER
|
£9.89
|
Add
|
|
023
|
HG-51161
|
SEAL RING
|
£31.32
|
Add
|
|
024
|
HG-51462
|
BEARING THRUST
|
N/A
|
POA
|
|
025
|
HG-71579
|
MINIBLOCK-C18/20
|
N/A
|
POA
|
|
026
|
HG-50551P
|
DRUCKLAGER
|
£68.32
|
Add
|
|
027
|
HG-70723
|
KIT
|
N/A
|
POA
|
|
028
|
HG-44371
|
WASHER-FLAT
|
£25.73
|
Add
|
|
029
|
HG-44145
|
RETAINING RING
|
£7.55
|
Add
|
|
030
|
HG-52149
|
GEAR
|
N/A
|
POA
|
|
031
|
HG-53136
|
DRIVE SHAFT
|
N/A
|
POA
|
|
032
|
HG-51069
|
WASHER,MOTOR SHAFT
|
£12.04
|
Add
|
|
033
|
HG-50132
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
034
|
HG-52148
|
GEAR
|
N/A
|
POA
|
|
035
|
HG-52583
|
GEAR
|
N/A
|
POA
|
|
036
|
HG-51083
|
PIN
|
N/A
|
POA
|
|
037
|
HG-50859
|
RING-RETAINING
|
N/A
|
POA
|
|
038
|
HG-52108
|
GEAR
|
N/A
|
POA
|
|
039
|
HG-52161
|
DISTANCE RING
|
N/A
|
POA
|
|
040
|
HG-44121P
|
BEARING BALL
|
£81.08
|
Add
|
|
041
|
HG-50771
|
BEARING BALL
|
£87.73
|
Add
|
|
042
|
HG-50772
|
SEALING WASHER
|
N/A
|
POA
|
|
043
|
HG-71404
|
HUB KIT 4 BOLT
|
£134.94
|
Add
|
|
044
|
712-3018
|
NUT
|
£15.39
|
Add
|
|
045
|
HG-50752
|
SCREW, HEX CAP
|
£31.67
|
Add
|
|
046
|
HG-52257
|
GUARD, FILTER
|
N/A
|
POA
|
|
047
|
HG-52365
|
FAN 7" 10 BLADE RZT
|
£108.64
|
Add
|
|
049
|
712-0346
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
050
|
HG-51523
|
WASHER, SLOTTED
|
£11.80
|
Add
|
|
052
|
HG-52527
|
DISTANCE RING
|
N/A
|
POA
|
|
053
|
HG-51946
|
ARM NEUTRAL
|
N/A
|
POA
|
|
054
|
HG-51616
|
SCREW, PATCH
|
N/A
|
POA
|
|
055
|
HG-51950
|
WASHER
|
N/A
|
POA
|
|
056
|
HG-51605
|
SPRING, EXTENSION
|
£51.28
|
Add
|
|
057
|
HG-53138
|
SEAL, LIP
|
N/A
|
POA
|
|
058
|
HG-53139
|
SEAL, PLUG
|
N/A
|
POA
|
|
061
|
HG-71567
|
KIT, CENTER SECTION
|
N/A
|
POA
|
|
065
|
HG-71351
|
KIT, FAN/PULLEY
|
N/A
|
POA
|
|
066
|
HG-71443
|
KIT, INPUT SHAFT
|
N/A
|
POA
|
|
067
|
HG-71592
|
KIT, RETURN BIDIRECTIONAL
|
£129.09
|
Add
|
|
070
|
HG-71570
|
KIT, AXLE SHAFT
|
£239.73
|
Add
|
|
071
|
HG-50928
|
SEALANT
|
£181.29
|
Add
|
|
072
|
HG-71410
|
SEAL KIT
|
£131.68
|
Add
|
|
073
|
618-04651
|
TRANS ASM: ZT2800:FMC:LEFT
|
N/A
|
POA
|
