MTD011718

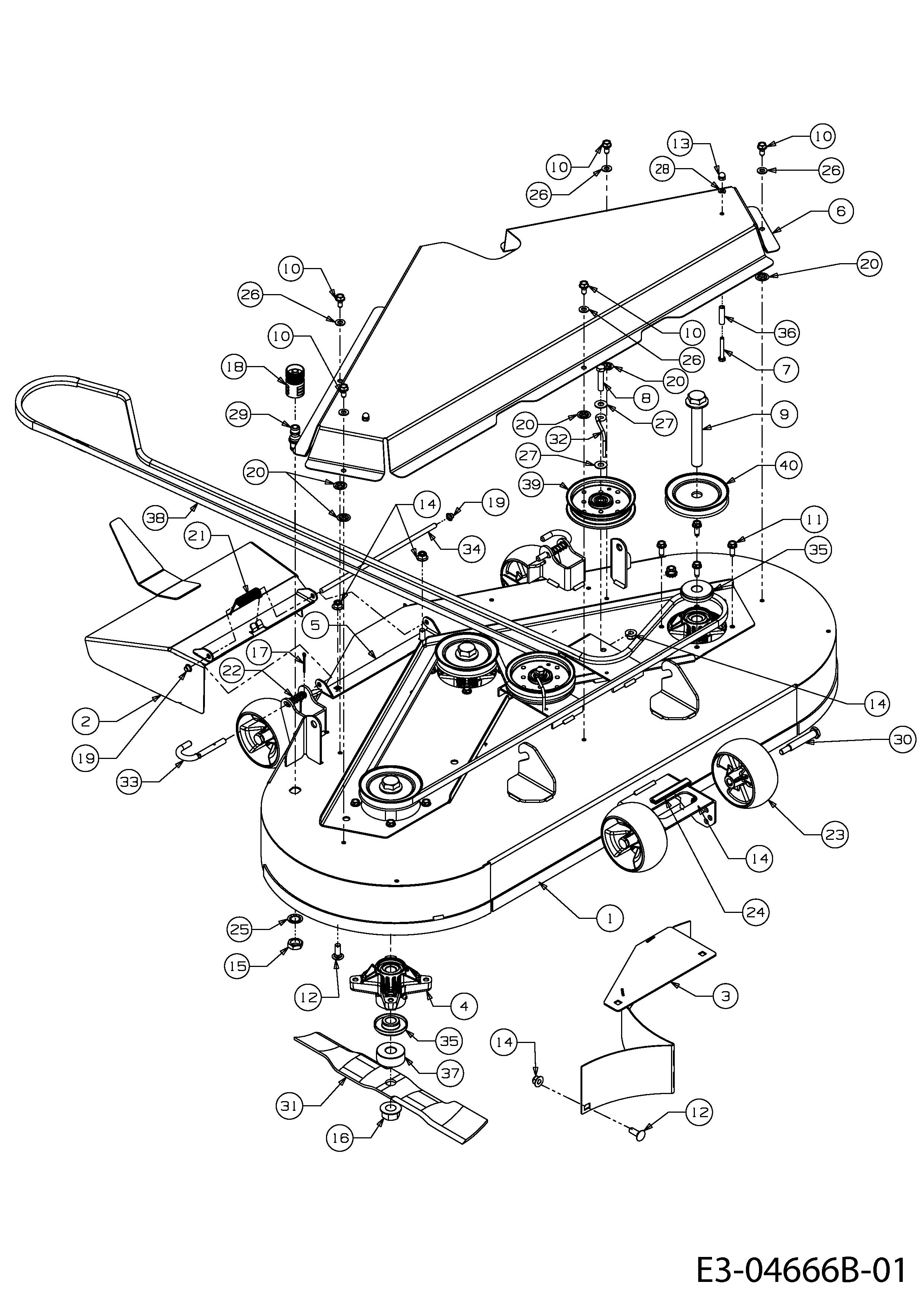

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011718

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04664B DECK ASM:48 IN:FAB N/A POA
002 603-04688 CHUT ASM:48" RD FAB N/A POA
003 603-04703637 PLUG ASM:MULCH 48" RD 603-04703 £163.87 Add
004 618-04426 SPINDLE ASSY £136.79 Add
005 703-06974 BRKT:CHUTE 48":FMZ N/A POA
006 703-07156 CVR:DECK:48" FMZ N/A POA
007 710-0136 Bolt, Hex 1/4-20 x 1-3/4" 1509-069 £3.58 Add
008 710-0347 HEX SCR £3.72 Add
009 710-04894 BOLT:SPDL:3/4-16:5.37 £42.54 Add
010 710-05045 SCR:TT:5/16-18:.750:HXINDWSH N/A POA
011 710-0650 SCREW £3.58 Add
012 710-3168 CARRIAGE BOLT 3/8 INCH X 1 INCH £7.01 Add
013 712-0264 NUT:ACORN:1/20-20:w/o LOCK £4.58 Add
014 712-04065 NUT £4.02 Add
015 712-0641 NUT £6.47 Add
016 712-3078 NUT HEX FLANGE 3/4-16 £11.32 Add
017 714-0470 COTTER PIN £5.07 Add
018 721-04041 ADAPER:WATER NOZZLE £16.76 Add
019 726-0135 Cap £3.59 Add
020 726-04040 NUT:PUSH:5/16 £5.31 Add
021 732-04372 SPR_TORSION:.44 ID x 2.0 £16.05 Add
022 732-04652 SPR:COMP:.535 OD x 1.751 LG £8.11 Add
023 734-04155 WHEEL:DECK:5.0 DIA BALL £16.47 Add
024 735-04130 TRIM:EDGE:RZ £12.81 Add
025 736-0225 WASHER (RED) £5.32 Add
026 736-0275 WASH:FLAT:.344 x .688 x.065 £3.07 Add
027 736-0300 WASHER £2.81 Add
028 736-0329 L. WASHER £3.26 Add
029 737-04003D NOZ:DECK:WATER £19.14 Add
030 738-3056 SHOULDER BOLT £12.94 Add
031 742-04278A 17 INCH BLADE £46.49 Add
032 747-04530 ROD KEEPER £19.05 Add
033 747-1116 QUICK RELEASE PINS RH LONG £14.71 Add
034 747-3384 ROD:DFL:CHUT £14.85 Add
035 748-3065A SPCR:SPDL:DECK £14.96 Add
036 750-04456 SPACER £5.75 Add
037 750-05184 SPCR:.760 x 2.000 x .790 £34.35 Add
038 754-04237 BELT:V-TYP:A SEC x 203 HI PERF £119.79 Add
039 753-08171 KIT IDLER PULLEY £37.57 Add
040 756-3089 V-PULLEY 4.0 DIA £31.38 Add
