MTD011235

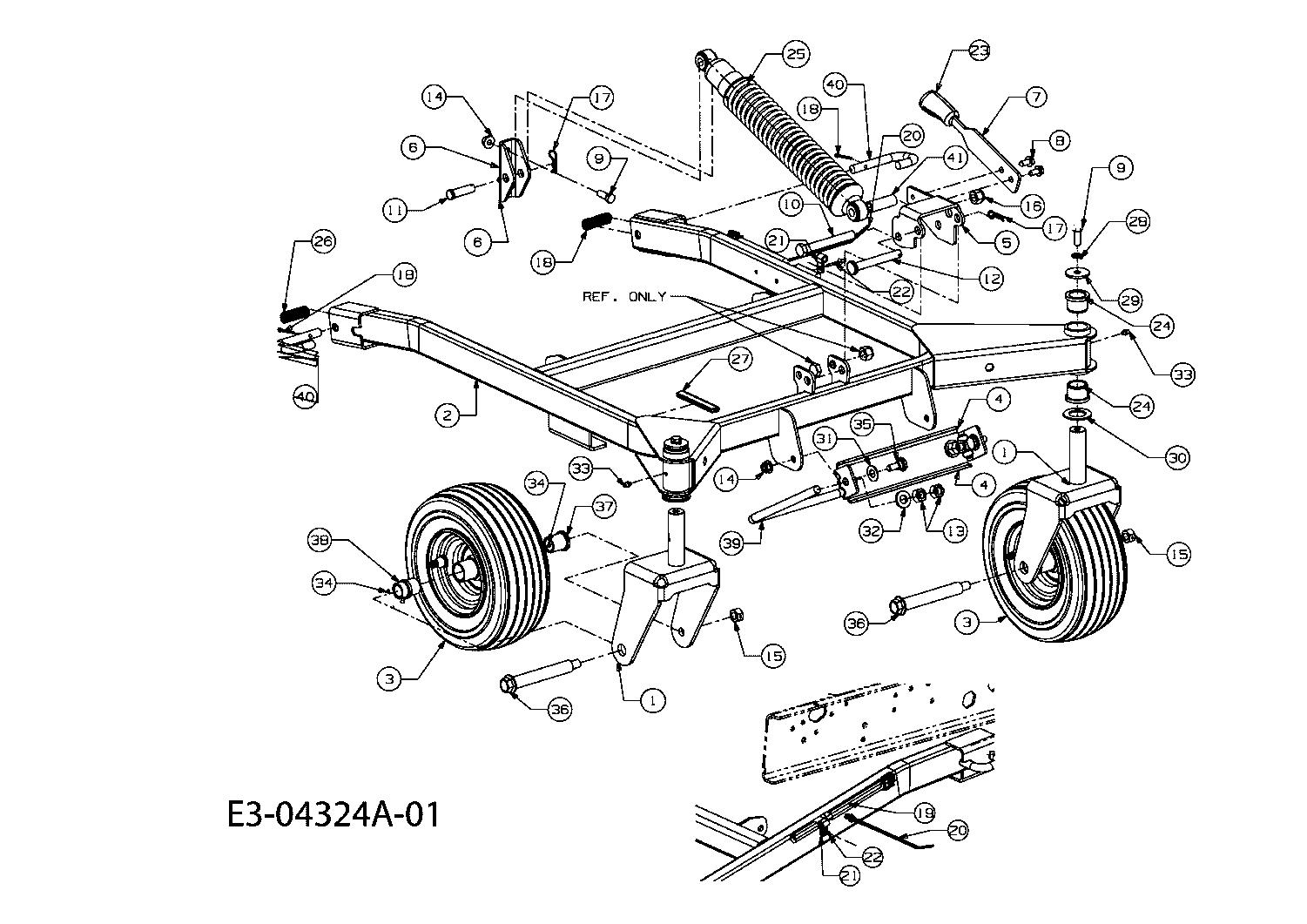

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011235

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04308 YOKE ASSY. CASTER / FIRE RED N/A POA
002 603-04499A BASE ASSY. £2,007.99 Add
003 634-04212B WHEEL CPL. 11.0X4.0X5.0 BEIGE 634-04212A £129.54 Add
004 703-05414A BRKT:FRT DECK HNGR N/A POA
005 703-06568 BRACKET:SHABS MNT £45.02 Add
006 703-06596 MT:SHABS:FRNT CUT £35.47 Add
007 703-06673 HNDL:BRAKE/SHABS £30.22 Add
008 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
009 710-0514 HEX BOLT £3.81 Add
010 710-0786 HHCS:1/2-13:4.00:GR5:STD £7.63 Add
011 711-04997 PIN:CLEVIS:.50 DIA X 1.59 £24.91 Add
012 711-1206 PIN:CLV: .500 DIA X 3.75 LG £27.05 Add
013 712-0206 NUT £3.42 Add
014 712-04065 NUT £4.02 Add
015 712-3022 NUT:HEXLK:1/2-13:GRB:CTRLK £10.83 Add
016 712-3083 NUT £2.79 Add
017 714-04023 COTTER PIN £7.22 Add
018 714-0470 COTTER PIN £5.07 Add
019 725-04715 HARN:INTERLOCK:FMZ £39.30 Add
020 726-0154 TIE:CABLE:PUSH MOUNT 7.5 LG £4.80 Add
021 726-04056 CLAMP:HOSE:-3 £42.84 Add
022 728-04000 RIV:POP:.188 DIA x .300 L £4.64 Add
023 731-04735 Handle £24.91 Add
024 731-05500 BRG-FLANGE:1,00 ID x 1.246 OD £14.25 Add
025 732-04512 ABSORBER-SHOCK:FRONT CUT £141.58 Add
026 732-3127 COMPR. SPRING:0.66 OD x 1.9 LG £7.05 Add
027 735-04130 TRIM:EDGE:RZ £12.81 Add
028 736-0169 L. WASHER £2.89 Add
029 736-0227 WASH:FLAT:.390x1.500x.134 £10.28 Add
030 736-0250 WASH:FLAT:1.00x1.75x.107 £10.32 Add
031 736-0272 WASHER:FL:.510 X 1.000 X .060 £3.16 Add
032 736-3019 WASHER FLAT £5.39 Add
033 737-3000 FITTING LUBE 3/16 DRIVE TYPE £3.87 Add
034 737-3007 GREASE:ALAVANIA EP2 N/A POA
035 738-0380 SCR:SHLDR:.500x.270:3/8-16 £10.48 Add
036 738-04182A BOLT:SHLDR:.750x4.75:1/2-13 £12.84 Add
037 741-0516B FLANGE BEARING .760x1.00x1.20 £12.25 Add
038 741-0990B PLASTIC BEARING £7.54 Add
039 747-04858 ROD:FRT HNGR:DECK LIFT £34.95 Add
040 747-3188 ROD:HNDL:DECK RELEASE .5 DIA £24.91 Add
041 750-05095 SPCR:.51 ID x.69 OD x 1.97 £14.20 Add
