MTD010996

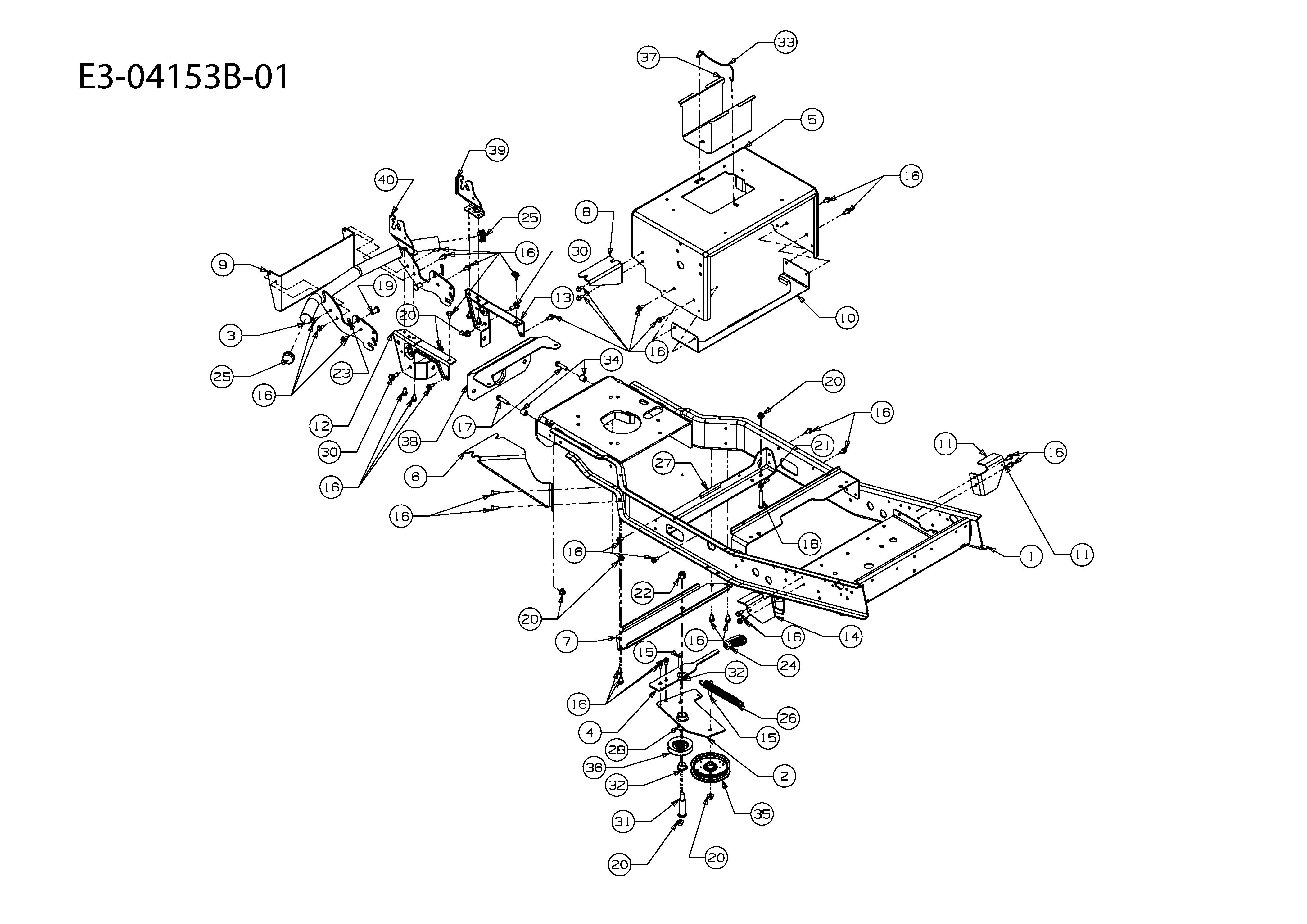

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010996

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04531637 FRAME ASSEMBLY N/A POA
002 603-04573 IDLR ASM:FRONT CUT N/A POA
003 683-04219B BUMPER TUBE £106.26 Add
004 703-05396A LEVER, PARK BRAKE ENGAGEMENT £58.33 Add
005 703-06446 CARRIER N/A POA
006 703-06472 BRACKET,FUEL TANK N/A POA
007 703-06540 BRKT:IDLER:FRONT CUT N/A POA
008 703-06567 BRKT:TANK SUPT N/A POA
009 703-06572 ADAPTER-GRASSCATCHER N/A POA
010 703-06597A BRKT:SUPT:BELT KEEPER N/A POA
011 703-06641A BRACKET LEFT N/A POA
012 703-06670 BRKT:PIVOT:SUPT RH N/A POA
013 703-06671 BRKT:PIVOT:SUPT LH N/A POA
014 703-06743A BRACKET RIGHT N/A POA
015 710-0347 HEX SCR £3.72 Add
016 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
017 710-0520 SCREW HEX CAP 3/8 (RED) £3.51 Add
018 710-3011 BOLT 3/8 X 2-1/4 TYPE 5 £5.52 Add
019 711-0332 CLEVIS PIN (RED) £13.13 Add
020 712-04065 NUT £4.02 Add
021 712-3008 NUT:JAM:3/8-16:GR5 £3.26 Add
022 712-3083 NUT £2.79 Add
023 714-04023 COTTER PIN £7.22 Add
024 731-04735 Handle £24.91 Add
025 731-05368 CAP £10.11 Add
026 732-0594A EXTENSION SPRING £25.17 Add
027 735-04130 TRIM:EDGE:RZ £12.81 Add
028 737-3000 FITTING LUBE 3/16 DRIVE TYPE £3.87 Add
030 738-0380 SCR:SHLDR:.500x.270:3/8-16 £10.48 Add
031 738-3110 BSHLD:SCR:.750 DIA X 2.23 LG £26.93 Add
032 741-0338 FLANGE BEARING (OBSOLETE) £7.81 Add
033 747-04121A ROD:BATT:HOLD RT-99 £10.03 Add
034 750-0807 SPCR: .385 X.625 X.700 £3.07 Add
035 753-08171 KIT IDLER PULLEY £37.57 Add
036 756-04325 PULLEY £35.65 Add
037 783-0349637 BATTERY TRAY £34.84 Add
038 783-04806 BRKT:PIVOT:BAR 4SZ N/A POA
039 783-04840 BRKT:PIVOT:HOOD RH N/A POA
040 783-04841 BRKT:PIVOT:HOOD LH N/A POA
