MTD011200

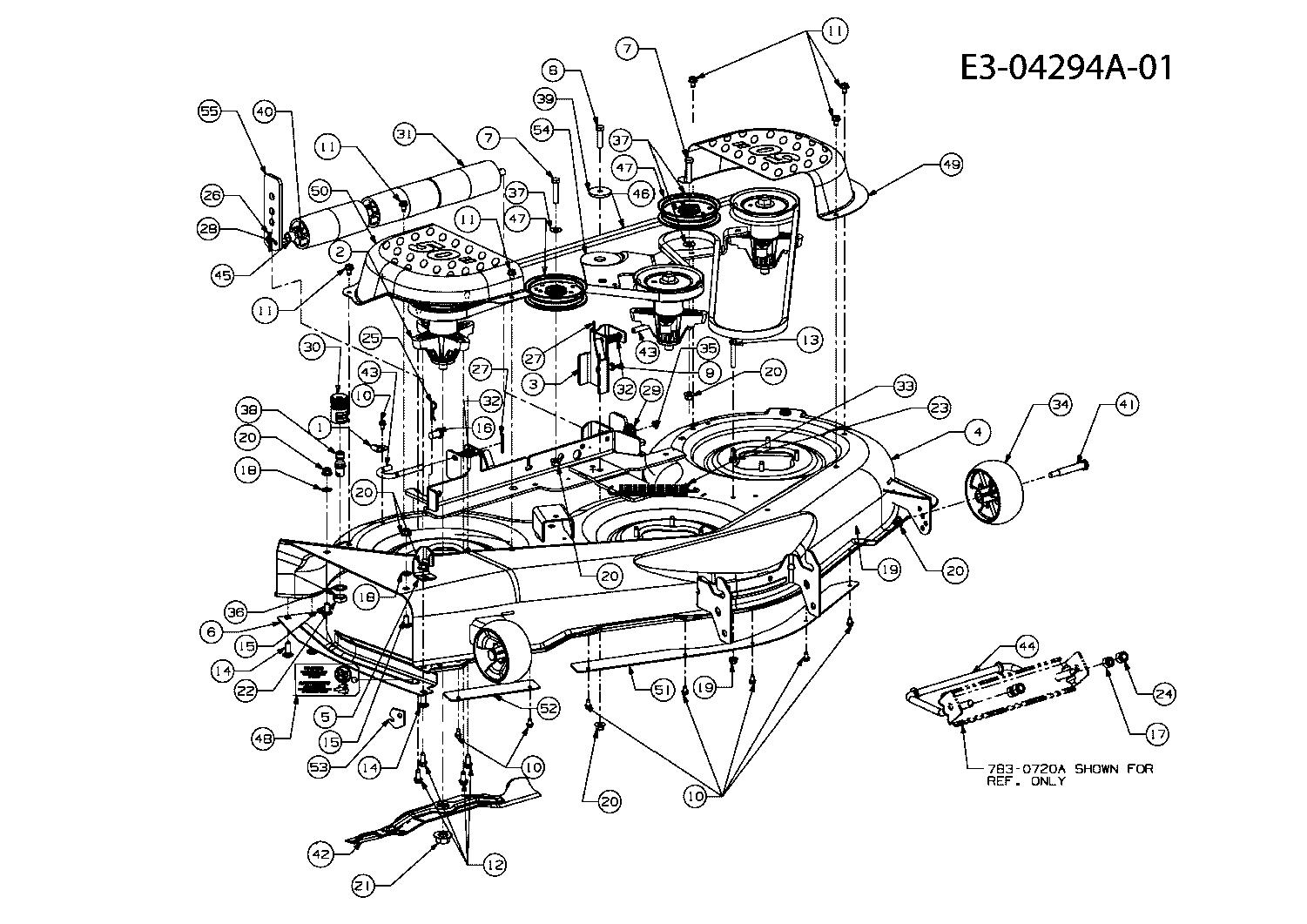

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
002	918-04125B	SPINDL ASM PUL 5.39 DIA x.5625	£152.37	Add
003	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
004	683-04336ACY	DECK ASM-50" SSZ	£773.55	Add
005	703-3279	STOP:CHUT:DFL	£27.80	Add
006	703-3511B637	GUARD BLACK	£30.09	Add
007	710-0347	HEX SCR	£3.72	Add
008	710-0520	SCREW HEX CAP 3/8 (RED)	£3.51	Add
009	710-0528	SCREW (DNR)	£3.55	Add
010	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
011	710-0607	SELF TAP SCREW	£4.71	Add
012	710-1260A	SCREW	£4.00	Add
013	710-3103	SCRE.HHCS:5/16-18:2.00:GR5:STD	£3.16	Add
014	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
015	710-3178	BOLT SHORT NECK CARR	£11.46	Add
016	711-0332	CLEVIS PIN (RED)	£13.13	Add
017	712-0206	NUT	£3.42	Add
018	712-0229	NUT PUSH	£5.20	Add
019	712-04063	FLANGED NUT	£4.20	Add
020	712-04065	NUT	£4.02	Add
021	712-05134	BLADE NUT	£3.81	Add
022	712-0641	NUT	£6.47	Add
023	712-3010	NUT 5/16 x 18	£2.77	Add
024	712-3083	NUT	£2.79	Add
025	714-0145	R CLIP	£2.78	Add
026	714-0162	COTTER PIN	£2.79	Add
027	714-0470	COTTER PIN	£5.07	Add
028	715-0108	PIN-SPRING SPIR	£14.81	Add
029	717-04174A	CLUTCH	£390.97	Add
030	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
031	731-05679B	ROLLER-FRONT 2.5X6	£28.94	Add
032	732-0306A	SPACER	£5.28	Add
033	732-0459C	EXTENSION SPRING	£18.91	Add
034	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
035	736-0119	LOCK WASHER 5/16	£3.33	Add
036	736-0225	WASHER (RED)	£5.32	Add
037	736-0300	WASHER	£2.81	Add
038	737-04003D	NOZ:DECK:WATER	£19.14	Add
039	738-04162C	SPACER	£4.64	Add
040	738-04235	SHAFT .5X20.8	£87.48	Add
041	738-3056	SHOULDER BOLT	£12.94	Add
042	742-04053C	BLADE	£39.58	Add
043	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
044	747-1324	ROD-DECK FRONT ADJUSTER .5"DIA 54"GT	£38.09	Add
045	750-1206	BUSHING	£23.45	Add
046	754-04077A	BELT	£113.45	Add
047	753-08171	KIT IDLER PULLEY	£37.57	Add
049	783-04399	COVER-BELT LH	N/A	POA
050	783-04400	COVER-BELT RH	N/A	POA
051	783-04414A	SKIRT-CENTER 50" DECK	N/A	POA
052	783-04415	SKIRT:RH:50"	N/A	POA
053	783-05219	BRKT:STOP:CHUTE 50"/54"	£14.15	Add
054	783-05303	BRKT:IDLR:50 w/o SPACER	N/A	POA
055	783-05411A-S	Bracket 783-05411A	£70.22	Add
056	783-0720C637	BRKT:ADJ:FRT DECK ROD 783-0720C	£50.24	Add
