MTD011201

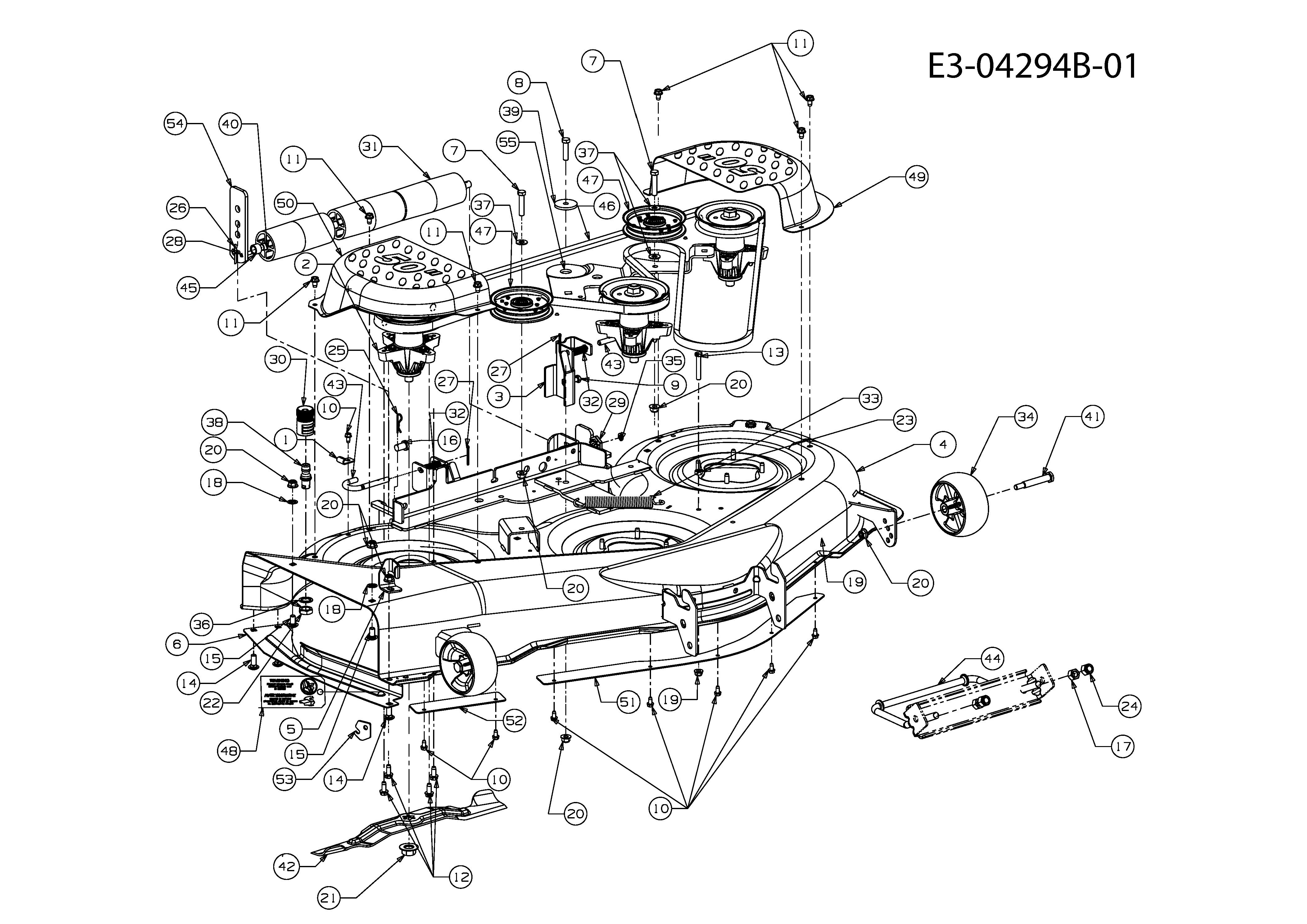

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
002	918-04125B	SPINDL ASM PUL 5.39 DIA x.5625	£152.37	Add
003	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
004	683-04336ACY	DECK ASM-50" SSZ	£773.55	Add
005	703-3279	STOP:CHUT:DFL	£27.80	Add
006	703-3511B637	GUARD BLACK	£30.09	Add
007	710-0347	HEX SCR	£3.72	Add
008	710-0528	SCREW (DNR)	£3.55	Add
009	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
010	710-0607	SELF TAP SCREW	£4.71	Add
011	710-1260A	SCREW	£4.00	Add
012	710-3005	BOLT	£3.24	Add
013	710-3103	SCRE.HHCS:5/16-18:2.00:GR5:STD	£3.16	Add
014	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
015	710-3178	BOLT SHORT NECK CARR	£11.46	Add
016	711-0332	CLEVIS PIN (RED)	£13.13	Add
017	712-0206	NUT	£3.42	Add
018	712-0229	NUT PUSH	£5.20	Add
019	712-04063	FLANGED NUT	£4.20	Add
020	712-04065	NUT	£4.02	Add
021	712-05134	BLADE NUT	£3.81	Add
022	712-0431	NUT	£3.20	Add
023	712-0641	NUT	£6.47	Add
024	712-3010	NUT 5/16 x 18	£2.77	Add
025	712-3083	NUT	£2.79	Add
026	714-0145	R CLIP	£2.78	Add
027	714-0162	COTTER PIN	£2.79	Add
028	714-0470	COTTER PIN	£5.07	Add
029	715-0108	PIN-SPRING SPIR	£14.81	Add
030	717-04174A	CLUTCH	£390.97	Add
031	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
032	731-05679B	ROLLER-FRONT 2.5X6	£28.94	Add
033	732-0306A	SPACER	£5.28	Add
034	732-0459C	EXTENSION SPRING	£18.91	Add
035	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
036	736-0119	LOCK WASHER 5/16	£3.33	Add
037	736-0225	WASHER (RED)	£5.32	Add
038	736-0300	WASHER	£2.81	Add
039	737-04003D	NOZ:DECK:WATER	£19.14	Add
040	738-04162C	SPACER	£4.64	Add
041	738-04235	SHAFT .5X20.8	£87.48	Add
042	738-3056	SHOULDER BOLT	£12.94	Add
043	742-04053C	BLADE	£39.58	Add
044	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
045	747-1324	ROD-DECK FRONT ADJUSTER .5"DIA 54"GT	£38.09	Add
046	750-1206	BUSHING	£23.45	Add
047	754-04077A	BELT	£113.45	Add
048	753-08171	KIT IDLER PULLEY	£37.57	Add
049	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
050	783-04399	COVER-BELT LH	N/A	POA
051	783-04400	COVER-BELT RH	N/A	POA
052	783-04415	SKIRT:RH:50"	N/A	POA
053	783-05219	BRKT:STOP:CHUTE 50"/54"	£14.15	Add
054	783-05411A-S	Bracket 783-05411A	£70.22	Add
055	783-05474	BRKT:IDLR:50LT W/O SPACER	N/A	POA
056	783-05513	SKIRT:CNTR:50" EXPORT	£109.17	Add
057	783-0720C637	BRKT:ADJ:FRT DECK ROD 783-0720C	£50.24	Add
