MTD011172

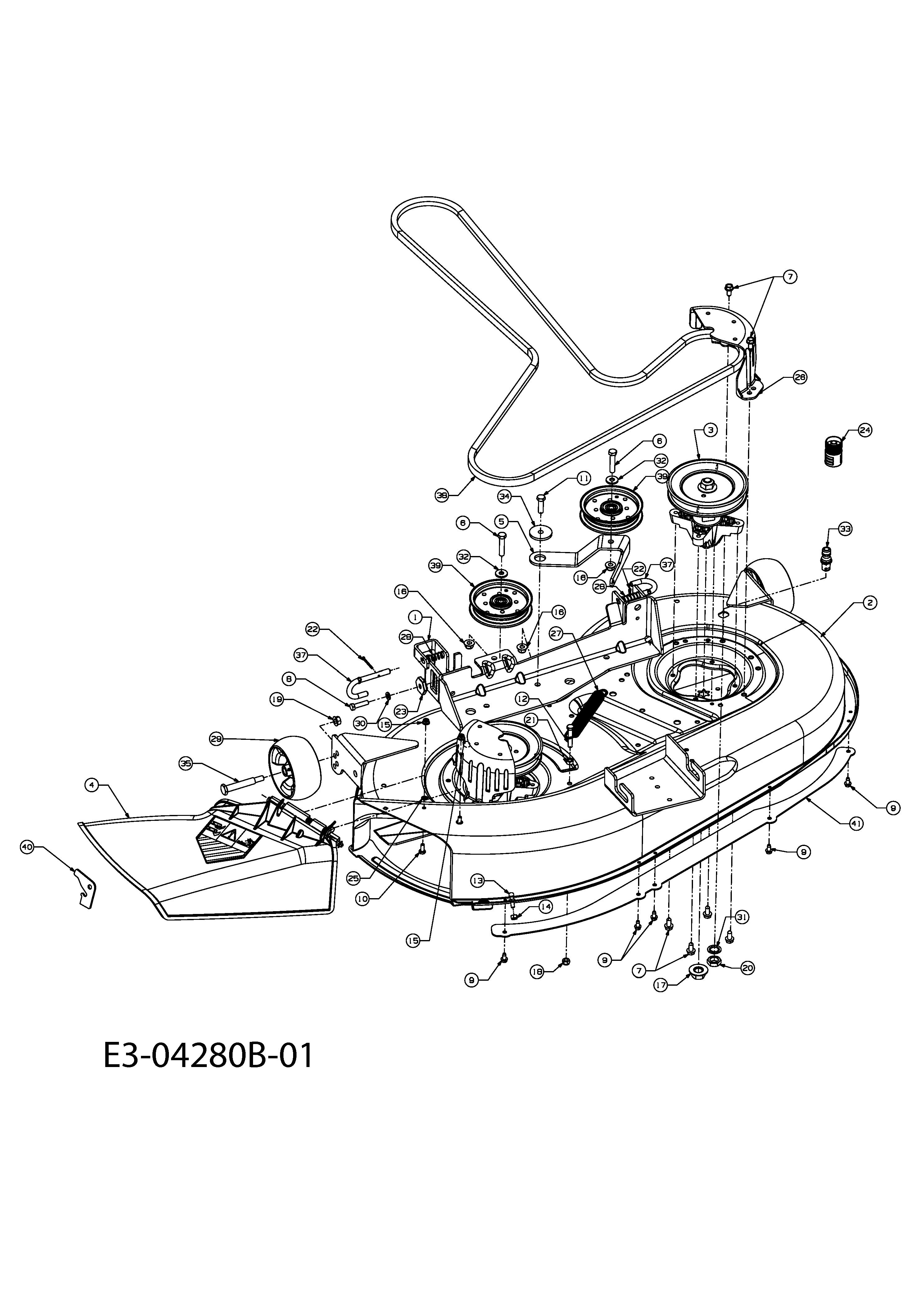

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011172

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04156 BRACKET DECK LIFT N/A POA
002 603-04335C COVER N/A POA
003 618-0624B SPINDLE ASSY 6.3" DIA PULLEY £177.99 Add
004 631-0220B CHUTE ASSY £35.56 Add
005 703-05824C N/A POA
006 710-0347 HEX SCR £3.72 Add
007 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
008 710-0528 SCREW (DNR) £3.55 Add
009 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
010 710-0751 BOLT 069 £3.39 Add
011 710-3005 BOLT £3.24 Add
012 710-3180 SCREW HEX CAP £5.00 Add
013 711-04069 PIN:GRASSCATCHER:1/4-20 £16.01 Add
014 712-0324 HEX. INS L NUT £3.69 Add
015 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
016 712-04065 NUT £4.02 Add
017 712-05134 BLADE NUT £3.81 Add
018 712-0429 NUT HEX.INS L NUT £4.92 Add
019 712-0431 NUT £3.20 Add
020 712-0641 NUT £6.47 Add
021 712-3010 NUT 5/16 x 18 £2.77 Add
022 714-0470 COTTER PIN £5.07 Add
023 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
024 721-04041 ADAPER:WATER NOZZLE £16.76 Add
025 726-0233 NUT:PUSH:.25 ID X .50 OD £3.58 Add
026 731-2231B BELT GUARD £60.13 Add
027 732-04609 Spring £21.61 Add
028 732-04652 SPR:COMP:.535 OD x 1.751 LG £8.11 Add
029 734-04155 WHEEL:DECK:5.0 DIA BALL £16.47 Add
030 736-0119 LOCK WASHER 5/16 £3.33 Add
031 736-0225 WASHER (RED) £5.32 Add
032 736-3072 WASH:FLAT:.38 x.93 x.110:HT £8.27 Add
033 737-04003D NOZ:DECK:WATER £19.14 Add
034 738-04162C SPACER £4.64 Add
035 738-3056 SHOULDER BOLT £12.94 Add
036 742-0674-637 BLADE 21.20"LG STAR LOW BLACK £55.23 Add
037 747-1116 QUICK RELEASE PINS RH LONG £14.71 Add
038 754-04137A BELT:VTYPE:A SECx114,24 ARAMID £75.31 Add
039 753-08171 KIT IDLER PULLEY £37.57 Add
040 783-1025 STOP:CHUTE £7.30 Add
041 753-0884 KIT DECK SKIRT £118.63 Add
