MTD017653

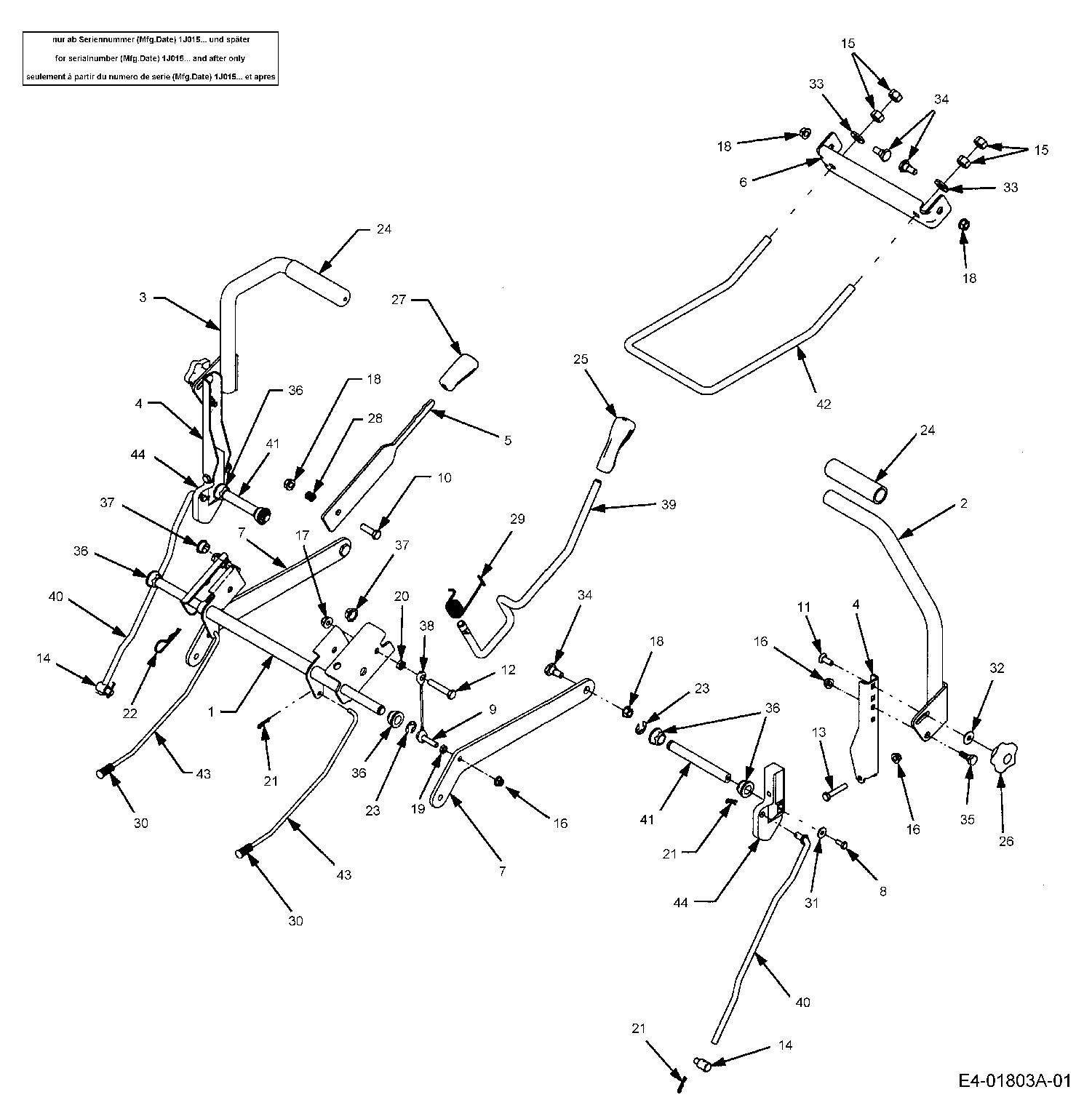

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017653

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04160A SHAFT ASM-DECK LIFT £83.30 Add
002 603-04322 HANDLE-RH LAPBAR £100.37 Add
003 603-04324 HANDLE-LH LAPBAR £106.58 Add
004 703-05387A BRKT-STEERING PIVOT RZT £32.45 Add
005 703-05396 LEVER, PARK BRAKE ENGAGEMENT £58.33 Add
006 703-05414AFR BRACKET DECK HANGER £81.10 Add
007 703-05793 ARM - DECK LIFT N/A POA
008 710-0433 HEX BOLT £6.66 Add
009 710-0805 SCRE.HHCS:5/16-18:1.50:GR5:STD £4.71 Add
010 710-3005 BOLT £3.24 Add
011 710-3105 BOLT:CRG:5/16-18:.875:GR1 £8.93 Add
012 710-3144 SCREW £3.28 Add
013 710-3180 SCREW HEX CAP £5.00 Add
014 711-0832 FERRULE:3/8-24x.375 DIA:HT TRT £13.94 Add
015 712-0206 NUT £3.42 Add
016 712-04063 FLANGED NUT £4.20 Add
017 712-04065 NUT £4.02 Add
018 712-0431 NUT £3.20 Add
019 712-3007 HEX JAM NUT £3.07 Add
020 712-3008 NUT:JAM:3/8-16:GR5 £3.26 Add
021 714-0104 PIN INTERNAL COTTER £2.78 Add
022 714-3020 PIN-COTTER £7.71 Add
023 716-0106A RING E TYPE .625 DIA SHAFT £3.33 Add
024 720-0274 GRIP:1.0 ID x 5.0 LG £7.62 Add
025 720-0311 KNOB £20.43 Add
026 720-04072A HAND RELEASE £4.27 Add
027 731-04735 Handle £24.91 Add
028 732-0334 COMPRESSION SPRING £3.39 Add
029 732-0874 SPRING-TORSION £11.98 Add
030 732-04350 N/A POA
031 736-0270 BELL WASHER £3.91 Add
032 736-0425 BELLWASHER £3.31 Add
033 736-3019 WASHER FLAT £5.39 Add
034 738-0143 SHOULDER BOLT £12.24 Add
035 738-3024 NO LONGER AVAILABLE N/A POA
036 741-0225 HEX FLANGE BEARING £4.92 Add
037 741-3074 BRG:FLG:.626x.938x.344 £8.34 Add
038 746-0970 BRAKE CABLE £15.32 Add
039 747-04224 LIFT LEVER N/A POA
040 747-04225A ROD-LIFT INDEX £68.91 Add
041 747-04226 ROD N/A POA
042 747-04401 ROD, DECK FRONT HANGAR £55.31 Add
043 747-04491 ROD BRAKE ASSY. £84.46 Add
044 748-04052 FITTING,CONNECTOR £77.08 Add
