Parts list

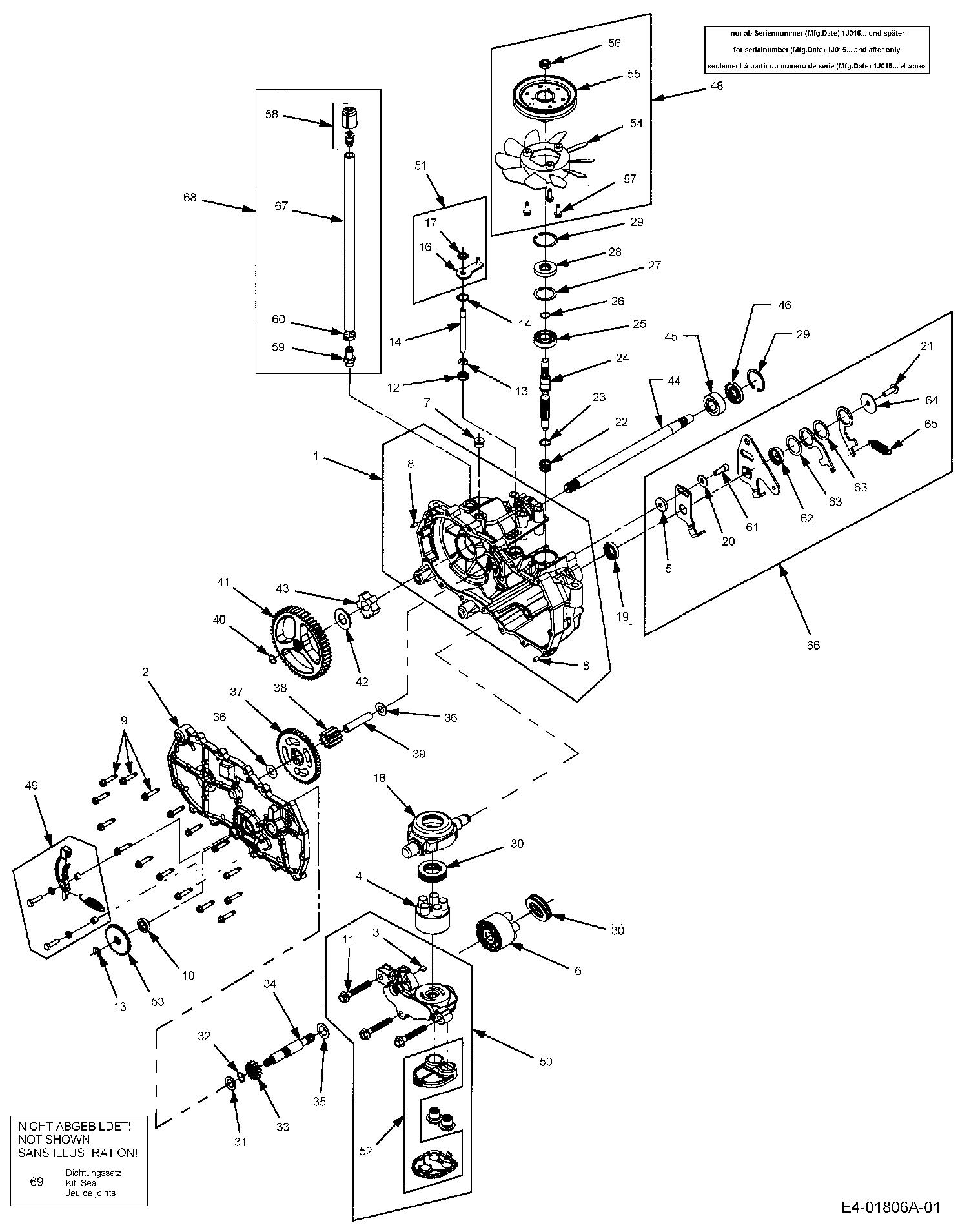

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
HG-70862L
|
HOUSING ASM-LH MAIN RZT
|
N/A
|
POA
|
|
002
|
HG-70863L
|
SIDE ASM, LH RZT
|
£284.69
|
Add
|
|
003
|
HG-51448
|
PLATE, BYPASS
|
N/A
|
POA
|
|
004
|
HG-70723
|
KIT
|
N/A
|
POA
|
|
005
|
HG-51949
|
|
N/A
|
POA
|
|
006
|
HG-70331
|
BLOCKASSY-CYLINDER
|
£322.57
|
Add
|
|
007
|
HG-9005110-5600
|
PLUG (RED)
|
£22.05
|
Add
|
|
008
|
HG-9004800-2506
|
|
N/A
|
POA
|
|
009
|
HG-51190
|
HEXFLANGE SCREW 1/4-20X1.25
|
£8.22
|
Add
|
|
010
|
HG-9008000-0125
|
|
N/A
|
POA
|
|
011
|
HG-50016
|
BOLT 3/8-24 X 2.5
|
£16.08
|
Add
|
|
012
|
HG-51626
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
013
|
HG-51628
|
RING, RETAINING
|
£11.80
|
Add
|
|
014
|
HG-51625
|
|
N/A
|
POA
|
|
015
|
HG-51627
|
Circlip
|
N/A
|
POA
|
|
016
|
HG-51910
|
|
N/A
|
POA
|
|
017
|
HG-51630
|
RING, RETAINING
|
£9.40
|
Add
|
|
018
|
HG-51048
|
SWASHPLATE,TRUNNION MACHINED
|
£188.08
|
Add
|
|
019
|
HG-51140
|
SEAL
|
£25.56
|
Add
|
|
020
|
736-0371
|
WASH:THRST:.343 X .880 X .062
|
£3.20
|
Add
|
|
021
|
HG-51812
|
SCREW, PATCH
|
£16.42
|
Add
|
|
022
|
HG-2003014
|
SPRING BLOCK
|
£6.44
|
Add
|
|
023
|
HG-2003017
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
024
|
HG-51062
|
SHAFT,INPUT
|
£255.66
|
Add
|
|
025
|
HG-50315
|
BALL BRG 17MMIDX40MMODX12MM
|
£48.43
|
Add
|
|
026
|
HG-2000022
|
RING WIRE RETAINING
|
£9.89
|
Add
|
|
027
|
HG-50951
|
SPACER
|
£9.89
|
Add
|
|
028
|
HG-51161
|
SEAL RING
|
£31.32
|
Add
|
|
029
|
28.3592.40
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
030
|
HG-50551P
|
DRUCKLAGER
|
£68.32
|
Add
|
|
031
|
HG-44371
|
WASHER-FLAT
|
£25.73
|
Add
|
|
032
|
HG-44145
|
RETAINING RING
|
£7.55
|
Add
|
|
033
|
HG-51130
|
GEAR-PINNION,13T
|
£18.00
|
Add
|
|
034
|
HG-51845
|
|
N/A
|
POA
|
|
035
|
HG-51069
|
WASHER,MOTOR SHAFT
|
£12.04
|
Add
|
|
036
|
HG-50132
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
037
|
HG-51129
|
10T/48T GAER
|
£114.58
|
Add
|
|
038
|
HG-51043
|
Gear
|
N/A
|
POA
|
|
039
|
HG-51083
|
PIN
|
N/A
|
POA
|
|
040
|
HG-44871
|
RETAINING RING
|
£17.89
|
Add
|
|
041
|
HG-51633
|
|
N/A
|
POA
|
|
042
|
HG-44875
|
WASHER 3/4 X 1.5 X .13
|
£8.58
|
Add
|
|
043
|
HG-51088
|
BEARING SLEEVE
|
£36.93
|
Add
|
|
044
|
HG-51954
|
SHAFT-AXLE RZT
|
£391.00
|
Add
|
|
045
|
HG-51089
|
BEARING
|
£66.64
|
Add
|
|
046
|
HG-51066
|
SEAL LIP
|
£24.55
|
Add
|
|
047
|
HG-70868I
|
|
N/A
|
POA
|
|
048
|
HG-71333
|
|
N/A
|
POA
|
|
049
|
HG-71356
|
KIT BRAKE ARM LH+RH RZT
|
£70.49
|
Add
|
|
050
|
HG-71142
|
CENTER SECTION KIT
|
N/A
|
POA
|
|
051
|
HG-71006
|
|
N/A
|
POA
|
|
052
|
HG-70911
|
|
N/A
|
POA
|
|
053
|
HG-51635
|
COG BRAKE
|
£53.91
|
Add
|
|
054
|
HG-52315
|
FAN
|
£69.32
|
Add
|
|
055
|
HG-50302
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
056
|
HG-51244
|
NUT:JAM:1/2-20:INS LOCK
|
£4.50
|
Add
|
|
057
|
HG-50752
|
SCREW, HEX CAP
|
£31.67
|
Add
|
|
058
|
HG-70921
|
|
N/A
|
POA
|
|
059
|
HG-50591
|
|
N/A
|
POA
|
|
060
|
HG-50590
|
|
N/A
|
POA
|
|
061
|
HG-51616
|
SCREW, PATCH
|
N/A
|
POA
|
|
062
|
HG-51947
|
|
N/A
|
POA
|
|
063
|
HG-51948
|
|
N/A
|
POA
|
|
064
|
HG-51950
|
WASHER
|
N/A
|
POA
|
|
065
|
HG-51399
|
SPRING, EXTENSION
|
£17.58
|
Add
|
|
066
|
HG-71095
|
|
N/A
|
POA
|
|
067
|
HG-51731
|
|
N/A
|
POA
|
|
068
|
HG-71308
|
HOSE ASM-BREATHER
|
£114.53
|
Add
|
|
069
|
HG-70853
|
SEAL KIT
|
£90.32
|
Add
|
