MTD017679

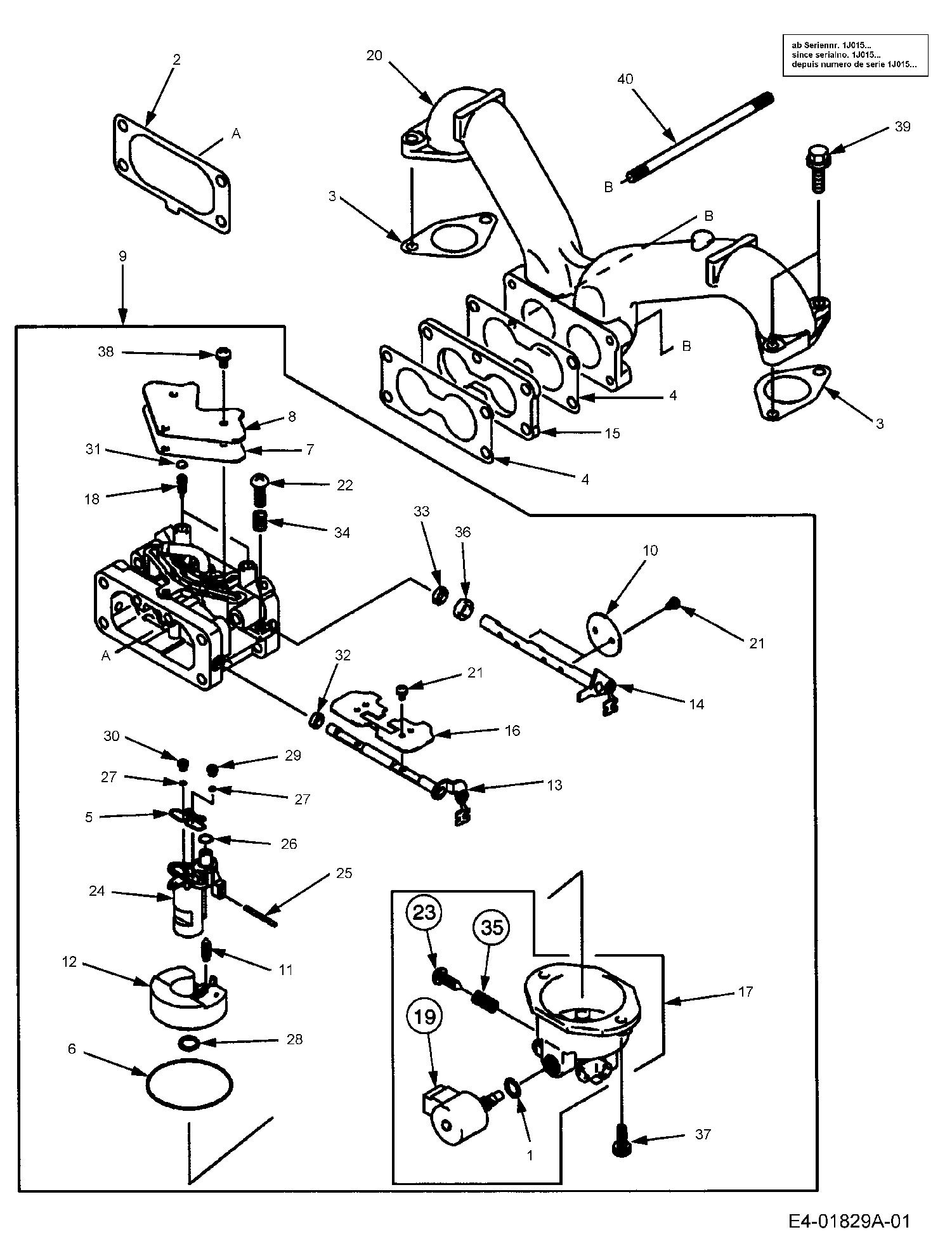

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	KM110092056	Gasket	£2.01	Add
002	KM110617043	Gasket KM110607009	N/A	POA
003	KM110607011	GASKET	£6.16	Add
004	KM110607024	GASKET-CARBURETOR	£4.59	Add
005	KM110617037	Gasket	£7.12	Add
006	KM110617038	Gasket	£3.37	Add
007	KM110617039	GASKET COVER PLATE	£4.95	Add
008	KM140917031	Cover	£12.69	Add
009	KM-15003-7096		N/A	POA
010	KM160257003	Throttle	£20.72	Add
011	KM160307004	VALVE,FLOAT	£23.24	Add
012	KM160317003	Float	£37.80	Add
013	KM160417021	AXLE-EDGER	£42.41	Add
014	KM160417023	Throttle shaft	£38.29	Add
015	KM160737005	MOUNT-SHOCK	£7.80	Add
016	KM161267015	224534	£13.67	Add
017	KM161847017	CHAMBER-FLOAT	£285.09	Add
018	KM161877002	JET NEEDLE	£12.58	Add
019	KM211887003	SOLENOID-CARBURETOR	£88.86	Add
020	KM590767011	NOZ:CSV:YLW KM590767002	N/A	POA
021	KM920097003	Screw	£2.42	Add
022	KM920097004	Screw	£2.57	Add
023	KM920097006	Screw	£2.57	Add
024	KM-92026-7010		N/A	POA
025	KM920437014	Roll pin	£3.37	Add
026	KM920557024	RING-O KM920557012	N/A	POA
027	KM920557013	RING-O	£2.46	Add
028	KM-92055-7014		N/A	POA
029	KM920637051	JET-MAIN #104	£25.83	Add
030	KM920637056	JET-MAIN #102	£25.83	Add
031	KM920667009	PLUG	£8.27	Add
032	KM920937001	SEAL,D=5.9	£4.80	Add
033	KM920937002	Gasket ring	£3.28	Add
034	KM921457010	Return spring	£3.44	Add
035	KM921457011	Return spring	£3.44	Add
036	KM921527005	BUSHING	£10.32	Add
037	KM921727005	Screw	£2.57	Add
038	KM921727006	Screw	£2.57	Add
039	KM130B0620	BOLT THRU	£1.89	Add
040	KM920042093	PIN KM172G06105	N/A	POA
