MTD011067

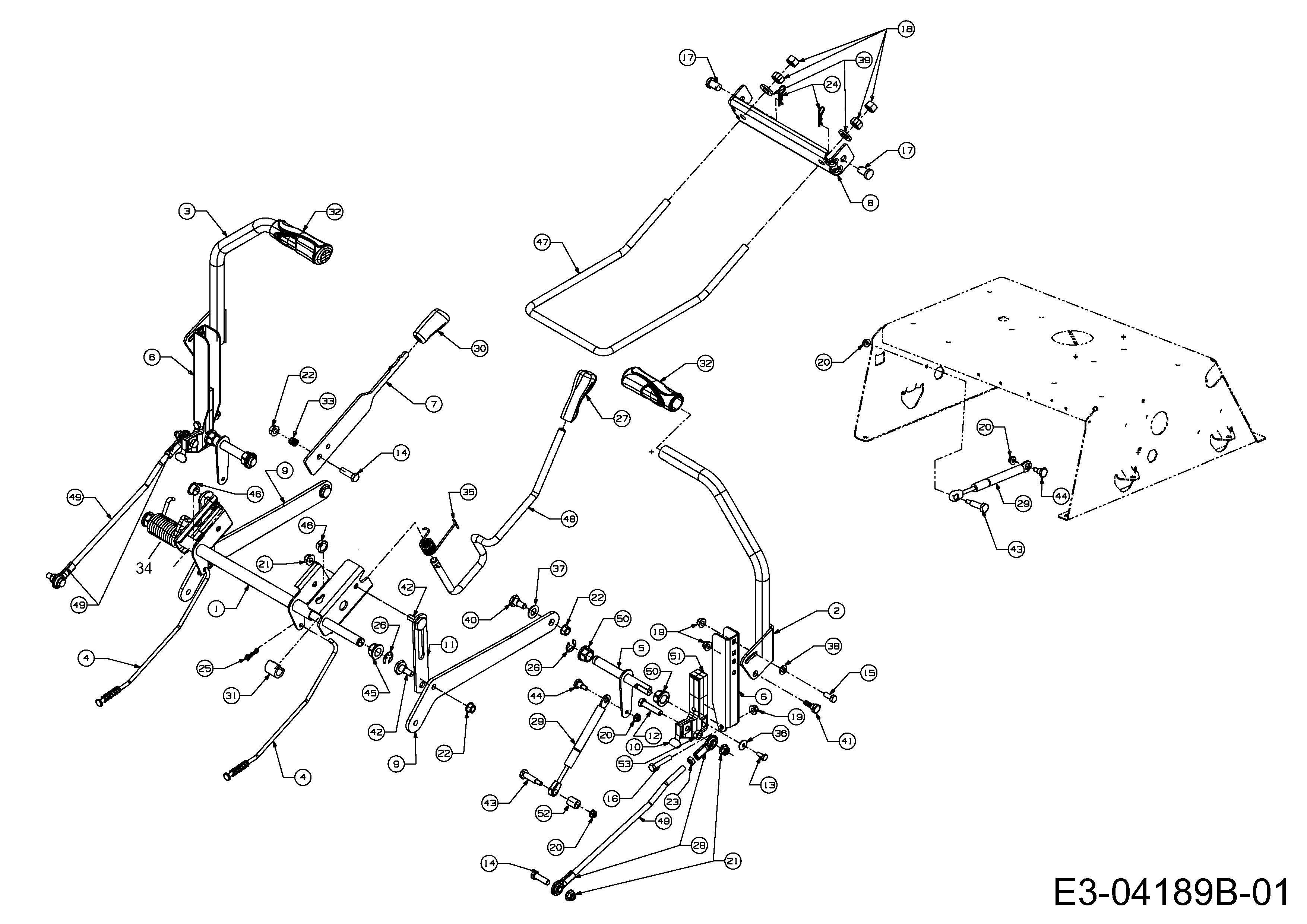

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04160B	SHAFT ASM-DECK LIFT	£83.30	Add
002	603-04322	HANDLE-RH LAPBAR	£100.37	Add
003	603-04324	HANDLE-LH LAPBAR	£106.58	Add
004	647-04065	ROD BRAKE ASSY.	£84.46	Add
005	647-04099A	SHAFT ASM-DAMPER CONTROL	£76.25	Add
006	703-05387B	BRKT-STEERING PIVOT RZT	£32.45	Add
007	703-05396A	LEVER, PARK BRAKE ENGAGEMENT	£58.33	Add
008	703-05414A	BRKT:FRT DECK HNGR	N/A	POA
009	703-05793A	LIFT HANDLE	N/A	POA
010	703-06096A	BRACKET SWITCH	£23.84	Add
011	703-06169	PLATE,PUSH ROD GUIDE	£23.43	Add
012	710-0347	HEX SCR	£3.72	Add
013	710-0433	HEX BOLT	£6.66	Add
014	710-3005	BOLT	£3.24	Add
015	710-3008	HEX BOLT	£3.03	Add
016	710-3180	SCREW HEX CAP	£5.00	Add
017	711-0332	CLEVIS PIN (RED)	£13.13	Add
018	712-0206	NUT	£3.42	Add
019	712-04063	FLANGED NUT	£4.20	Add
020	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
021	712-04065	NUT	£4.02	Add
022	712-0431	NUT	£3.20	Add
023	712-3001	NUT:JAM:3/8-24:GR2	£3.26	Add
024	714-04023	COTTER PIN	£7.22	Add
025	714-04040	PIN-COTTER	£4.38	Add
026	716-0106A	RING E TYPE .625 DIA SHAFT	£3.33	Add
027	720-0311	KNOB	£20.43	Add
028	723-04035	END:ROD:B/JNT:.375	£41.28	Add
029	727-04141	CYL:DAMPER .59 OD x 7.84 LG	£45.40	Add
030	731-04735	Handle	£24.91	Add
031	731-05732	SPACER-PULLEY	N/A	POA
032	731-05882	Handle	£57.58	Add
033	732-0334	COMPRESSION SPRING	£3.39	Add
034	732-04420	SPRING TORSION LH	£33.90	Add
035	732-0874	SPRING-TORSION	£11.98	Add
036	736-0270	BELL WASHER	£3.91	Add
037	736-0272	WASHER:FL:.510 X 1.000 X .060	£3.16	Add
038	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
039	736-3019	WASHER FLAT	£5.39	Add
040	738-0143	SHOULDER BOLT	£12.24	Add
041	738-3024	NO LONGER AVAILABLE	N/A	POA
042	738-0507B	SHOULDER BOLT	£6.89	Add
043	738-0572	SHOULDER BOLT	£8.74	Add
044	736-0974		N/A	POA
045	741-0225	HEX FLANGE BEARING	£4.92	Add
046	741-3074	BRG:FLG:.626x.938x.344	£8.34	Add
047	747-04401A	HANGER-DECK LIFT	£55.31	Add
048	747-04637	HANDLE-DECK LIFT	£53.25	Add
049	747-05057	BAR-TIE	£34.42	Add
050	748-0227A	HEX FLANGED BEARING 748-0229	£8.06	Add
051	748-04169A	HUB:ARM:SHIFT	£38.34	Add
052	750-04676	SPACER .385IDX.630 OD X .75 LG	£20.17	Add
053	750-04776	SPACER .380ID X.625 OD X .265	£10.66	Add
