MTD011071

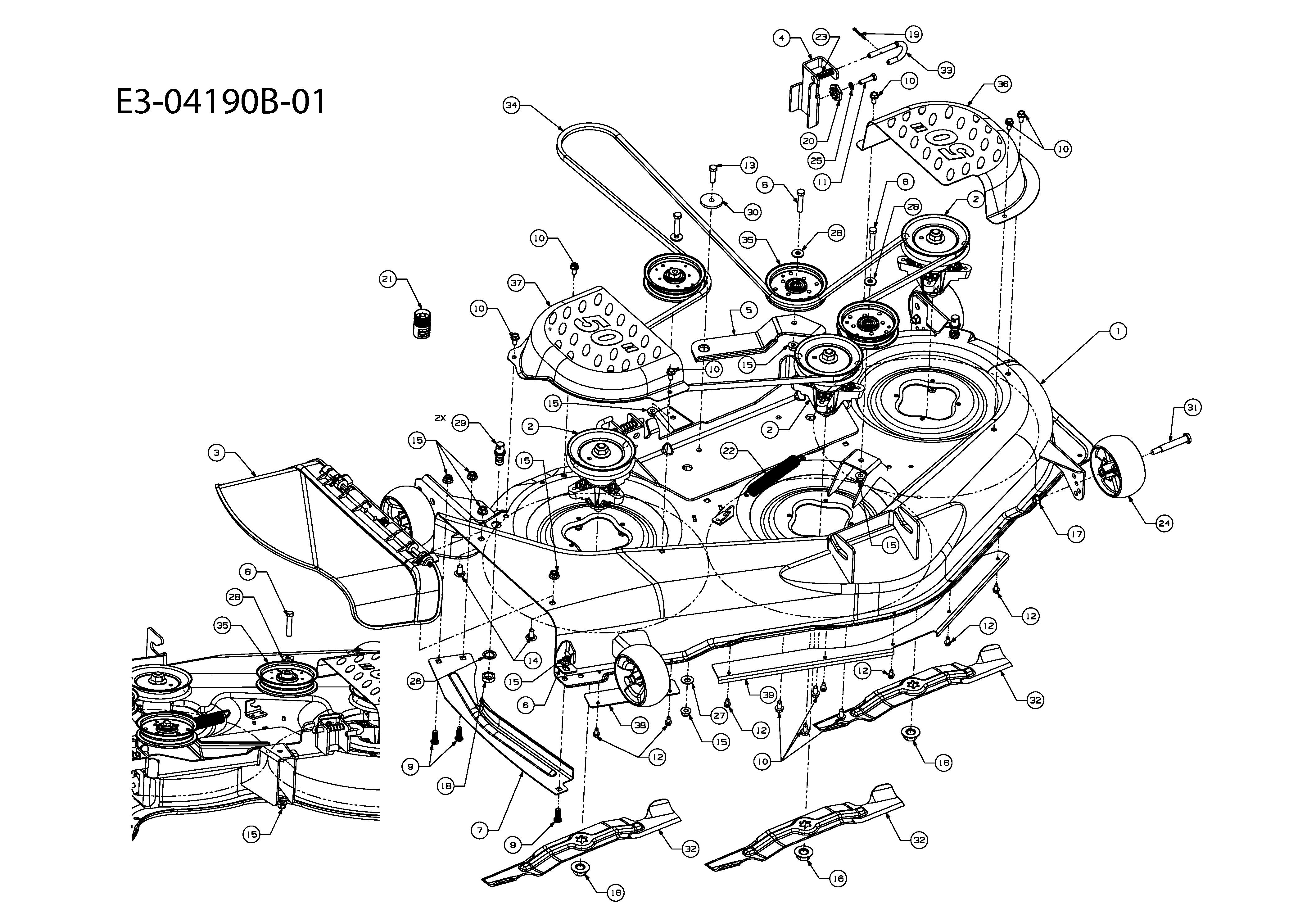

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011071

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04328C-S DECK ASSY 50" £967.62 Add
002 918-04125B SPINDL ASM PUL 5.39 DIA x.5625 £152.37 Add
003 631-04092C CHUT ASM:48/50/54" DECK EXPORT £57.60 Add
004 683-0254B637 BRKT:ASM:DECK:HNGR LH LT BLACK £30.23 Add
005 703-05825B Tension lever N/A POA
006 703-3279 STOP:CHUT:DFL £27.80 Add
007 703-3511B637 GUARD BLACK £30.09 Add
008 710-0347 HEX SCR £3.72 Add
009 710-04095 SCREW HEX CAP £8.34 Add
010 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
011 710-0528 SCREW (DNR) £3.55 Add
012 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
013 710-3005 BOLT £3.24 Add
014 710-3178 BOLT SHORT NECK CARR £11.46 Add
015 712-04065 NUT £4.02 Add
016 712-05134 BLADE NUT £3.81 Add
017 712-0431 NUT £3.20 Add
018 712-0641 NUT £6.47 Add
019 714-0470 COTTER PIN £5.07 Add
020 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
021 721-04041 ADAPER:WATER NOZZLE £16.76 Add
022 732-04609 Spring £21.61 Add
023 732-04652 SPR:COMP:.535 OD x 1.751 LG £8.11 Add
024 734-04155 WHEEL:DECK:5.0 DIA BALL £16.47 Add
025 736-0119 LOCK WASHER 5/16 £3.33 Add
026 736-0225 WASHER (RED) £5.32 Add
027 736-0407 WASHER £11.84 Add
028 736-3072 WASH:FLAT:.38 x.93 x.110:HT £8.27 Add
029 737-04003D NOZ:DECK:WATER £19.14 Add
030 738-04162C SPACER £4.64 Add
031 738-3056 SHOULDER BOLT £12.94 Add
032 742-04053C BLADE £39.58 Add
033 747-1116 QUICK RELEASE PINS RH LONG £14.71 Add
034 754-04044A BELT £69.34 Add
035 753-08171 KIT IDLER PULLEY £37.57 Add
036 783-04399 COVER-BELT LH N/A POA
037 783-04400 COVER-BELT RH N/A POA
038 783-04414A-S SKIRT-CENTER 50" DECK £38.54 Add
039 783-04415 SKIRT:RH:50" N/A POA
