MTD011052

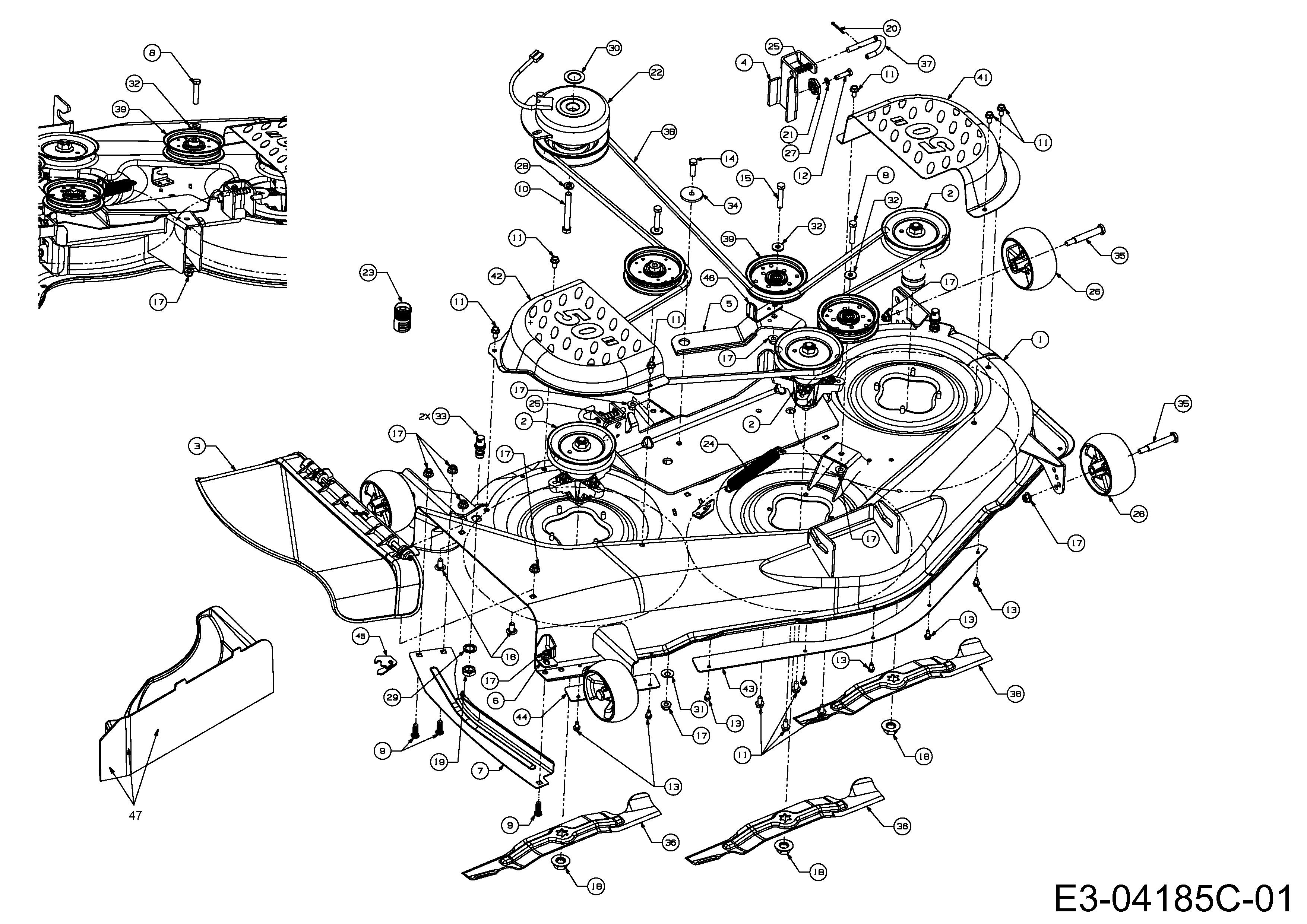

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011052

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04328B DECK ASSY. 50" £567.72 Add
002 918-04125B SPINDL ASM PUL 5.39 DIA x.5625 £152.37 Add
003 631-04070C CHUTE ASM £45.69 Add
004 683-0254B637 BRKT:ASM:DECK:HNGR LH LT BLACK £30.23 Add
005 703-05825C BRACKET IDLER ARM £84.56 Add
006 703-3279 STOP:CHUT:DFL £27.80 Add
007 703-3511B637 GUARD BLACK £30.09 Add
008 710-0347 HEX SCR £3.72 Add
009 710-04095 SCREW HEX CAP £8.34 Add
010 710-04379A SCREW £13.79 Add
011 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add
012 710-0528 SCREW (DNR) £3.55 Add
013 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
014 710-3005 BOLT £3.24 Add
015 710-3144 SCREW £3.28 Add
016 710-3178 BOLT SHORT NECK CARR £11.46 Add
017 712-04065 NUT £4.02 Add
018 712-05134 BLADE NUT £3.81 Add
019 712-0641 NUT £6.47 Add
020 714-0470 COTTER PIN £5.07 Add
021 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
022 717-05000 CLU:ELEC:PTO 46/50 £494.06 Add
023 721-04041 ADAPER:WATER NOZZLE £16.76 Add
024 732-04609 Spring £21.61 Add
025 732-04652 SPR:COMP:.535 OD x 1.751 LG £8.11 Add
026 734-04155 WHEEL:DECK:5.0 DIA BALL £16.47 Add
027 736-0119 LOCK WASHER 5/16 £3.33 Add
028 736-0171 WASHER £2.93 Add
029 736-0225 WASHER (RED) £5.32 Add
030 736-0277 WASH:FLAT:1.031 x 1.620 x.095 £9.72 Add
031 736-0407 WASHER £11.84 Add
032 736-3072 WASH:FLAT:.38 x.93 x.110:HT £8.27 Add
033 737-04003D NOZ:DECK:WATER £19.14 Add
034 738-04162C SPACER £4.64 Add
035 738-3056 SHOULDER BOLT £12.94 Add
036 742-04053C BLADE £39.58 Add
037 747-1116 QUICK RELEASE PINS RH LONG £14.71 Add
038 754-04044A BELT £69.34 Add
039 753-08171 KIT IDLER PULLEY £37.57 Add
041 783-04399 COVER-BELT LH N/A POA
042 783-04400 COVER-BELT RH N/A POA
043 783-06125 SKIRT:CNTR:50" EXPORT N/A POA
044 783-04415 SKIRT:RH:50" N/A POA
045 783-06241 BRACKET STOP N/A POA
046 783-06368A N/A POA
047 731-04651 MULCH PLUG GT1223 £59.75 Add
