MTD011077

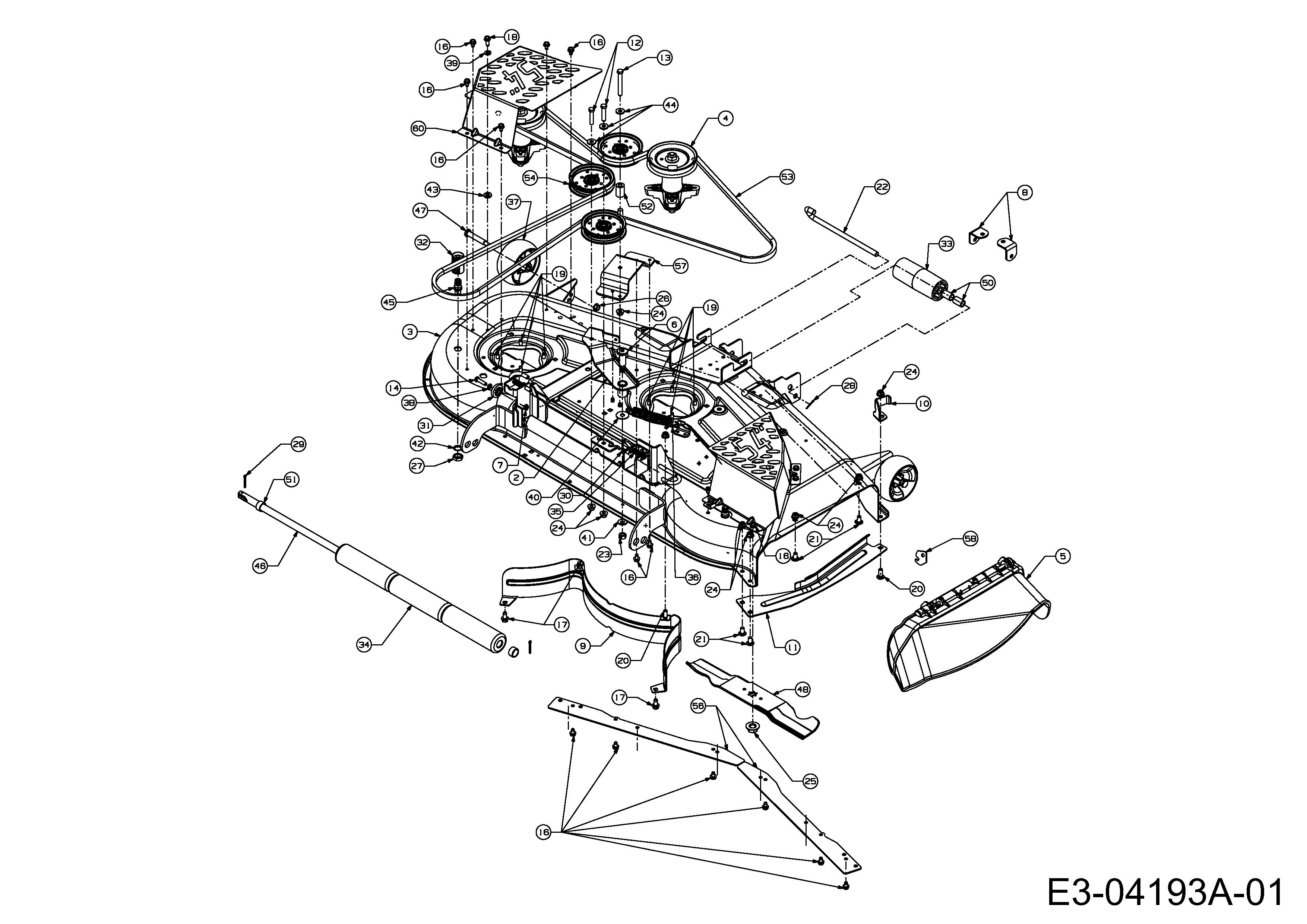

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
002	603-04386A	IDLER ASSY.	£115.40	Add
003	603-04603	DECK ASSY.	£529.76	Add
004	618-04608	SPDL ASM:PUL:5.39	£200.97	Add
005	631-04070C	CHUTE ASM	£45.69	Add
006	638-04012A	BOLT	£17.98	Add
007	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
008	703-05978		N/A	POA
009	703-2093C637	BAFFLE REAR INNER 703-2093	£73.04	Add
010	703-3279	STOP:CHUT:DFL	£27.80	Add
011	703-3511	GUARD-FLYWHEEL	N/A	POA
012	710-0347	HEX SCR	£3.72	Add
013	710-0521	SCREW HHCS:3/8-16:3.00:GR8:STD	£5.19	Add
014	710-0528	SCREW (DNR)	£3.55	Add
015	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
016	710-0607	SELF TAP SCREW	£4.71	Add
017	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
018	710-0650	SCREW	£3.58	Add
019	710-1260A	SCREW	£4.00	Add
020	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
021	710-3178	BOLT SHORT NECK CARR	£11.46	Add
022	711-1737	PIN FOR ROLLER	£21.06	Add
023	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
024	712-04065	NUT	£4.02	Add
025	712-05134	BLADE NUT	£3.81	Add
026	712-0431	NUT	£3.20	Add
027	712-0641	NUT	£6.47	Add
028	714-0111	COTTER PIN	£3.20	Add
029	714-0162	COTTER PIN	£2.79	Add
030	714-0470	COTTER PIN	£5.07	Add
031	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
032	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
033	731-05679B	ROLLER-FRONT 2.5X6	£28.94	Add
034	731-05825	ROLLER DECK	£44.71	Add
035	732-0306A	SPACER	£5.28	Add
036	732-0850	SPR:EXTN:1.0 OD X 6.140 LG	£38.31	Add
037	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
038	736-0119	LOCK WASHER 5/16	£3.33	Add
039	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
040	736-0406	WASH:F:.442 IDX 1.38 ODX.060HT	£3.39	Add
041	736-0407	WASHER	£11.84	Add
042	736-0760	WASHER	£4.01	Add
043	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
044	736-3072	WASH:FLAT:.38 x.93 x.110:HT	£8.27	Add
045	737-04003D	NOZ:DECK:WATER	£19.14	Add
046	738-04260	SHF:.75 DIA x 26.893 LG	£70.33	Add
047	738-3056	SHOULDER BOLT	£12.94	Add
048	742-0677B	BLADE 18,50" LG	£26.12	Add
049	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
050	750-0151	SPCR:.550IDx.750ODx1.125	£12.04	Add
051	750-0212	SPCR:.82 ID x 1.00 OD x.53	£12.80	Add
052	750-04597	SPACER .380X.900X1.313	£14.75	Add
053	754-04138A	BELT:V TYPE:B SEC X 134	£64.10	Add
054	753-08171	KIT IDLER PULLEY	£37.57	Add
056	783-04690B	SKIRT DECK 54"	£87.34	Add
057	783-04726	BRACKET IDLER PULLEY	£81.91	Add
058	783-05219	BRKT:STOP:CHUTE 50"/54"	£14.15	Add
059	783-1470A	COVER SPINDLE RIGHT	£103.61	Add
060	783-1471	COVER SPINDLE LEFT	£103.20	Add
