MTD011079

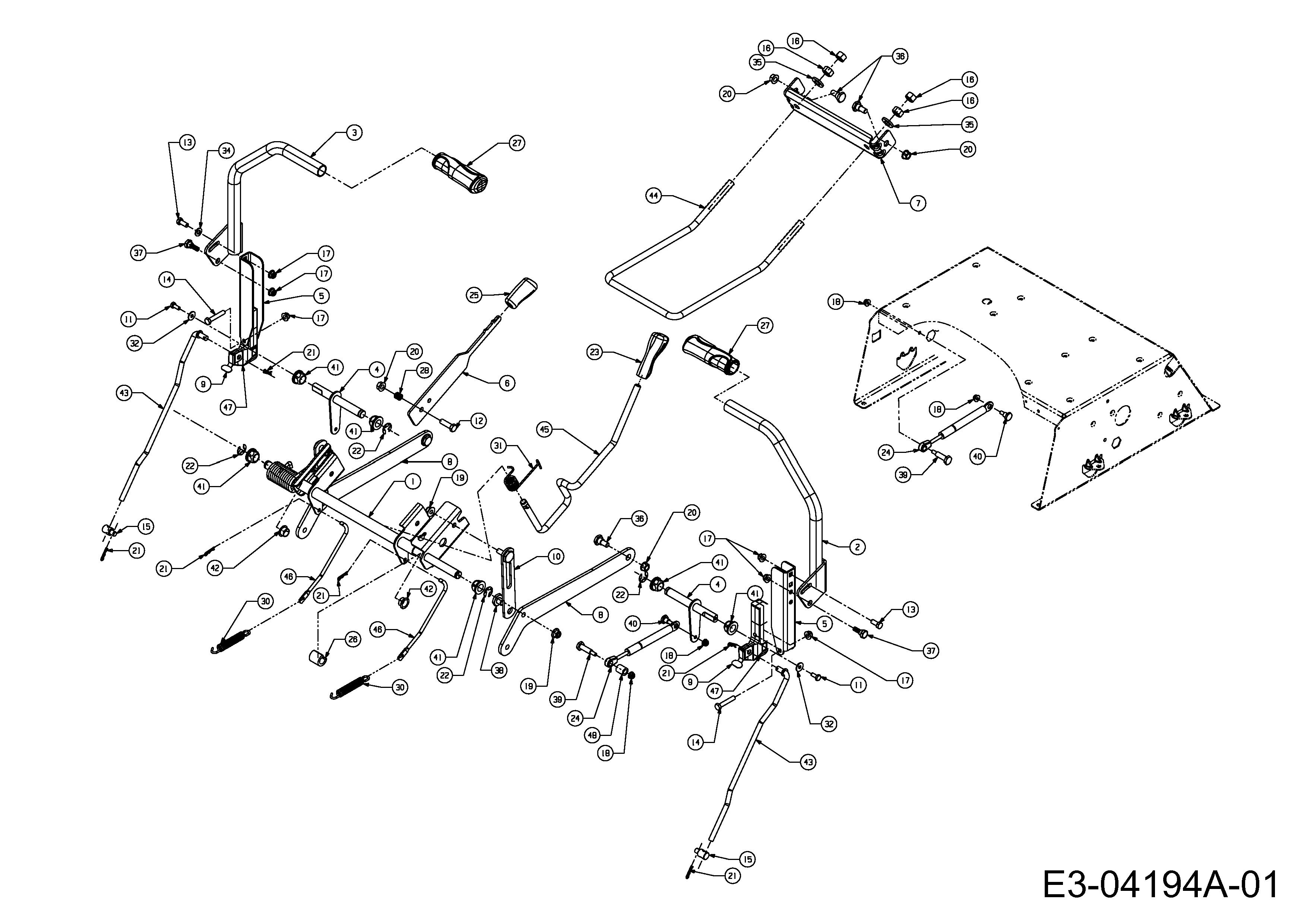

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011079

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04160B SHAFT ASM-DECK LIFT £83.30 Add
002 603-04322 HANDLE-RH LAPBAR £100.37 Add
003 603-04324 HANDLE-LH LAPBAR £106.58 Add
004 647-04099 SHAFT ASM-DAMPER CONTROL £76.25 Add
005 703-05387B BRKT-STEERING PIVOT RZT £32.45 Add
006 703-05396A LEVER, PARK BRAKE ENGAGEMENT £58.33 Add
007 703-05414A BRKT:FRT DECK HNGR N/A POA
008 703-05793A LIFT HANDLE N/A POA
009 703-06096 BRACKET SWITCH £23.84 Add
010 703-06169 PLATE,PUSH ROD GUIDE £23.43 Add
011 710-0433 HEX BOLT £6.66 Add
012 710-3005 BOLT £3.24 Add
013 710-3008 HEX BOLT £3.03 Add
014 710-3180 SCREW HEX CAP £5.00 Add
015 711-0832 FERRULE:3/8-24x.375 DIA:HT TRT £13.94 Add
016 712-0206 NUT £3.42 Add
017 712-04063 FLANGED NUT £4.20 Add
018 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
019 712-04065 NUT £4.02 Add
020 712-0431 NUT £3.20 Add
021 714-0104 PIN INTERNAL COTTER £2.78 Add
022 716-0106A RING E TYPE .625 DIA SHAFT £3.33 Add
023 720-0311 KNOB £20.43 Add
024 727-04141 CYL:DAMPER .59 OD x 7.84 LG £45.40 Add
025 731-04735 Handle £24.91 Add
026 731-05732 SPACER-PULLEY N/A POA
027 731-05882 Handle £57.58 Add
028 732-0334 COMPRESSION SPRING £3.39 Add
029 732-04420 SPRING TORSION LH £33.90 Add
030 732-04432 SPING BRAKE ROD £27.72 Add
031 732-0874 SPRING-TORSION £11.98 Add
032 736-0270 BELL WASHER £3.91 Add
033 736-0272 WASHER:FL:.510 X 1.000 X .060 £3.16 Add
034 736-0275 WASH:FLAT:.344 x .688 x.065 £3.07 Add
035 736-3019 WASHER FLAT £5.39 Add
036 738-0143 SHOULDER BOLT £12.24 Add
037 738-3024 NO LONGER AVAILABLE N/A POA
038 738-0507B SHOULDER BOLT £6.89 Add
039 738-0572 SHOULDER BOLT £8.74 Add
040 738-0974 SCR:SHLDR:.375x.380:1/4-20 £9.24 Add
041 741-0225 HEX FLANGE BEARING £4.92 Add
042 741-3074 BRG:FLG:.626x.938x.344 £8.34 Add
043 747-04225A ROD-LIFT INDEX £68.91 Add
044 747-04401A HANGER-DECK LIFT £55.31 Add
045 747-04637 HANDLE-DECK LIFT £53.25 Add
046 747-04651 ROD, PARK BRAKE £35.88 Add
047 748-04169 HUB:ARM:SHIFT £38.34 Add
048 750-04676 SPACER .385IDX.630 OD X .75 LG £20.17 Add
