MTD011089

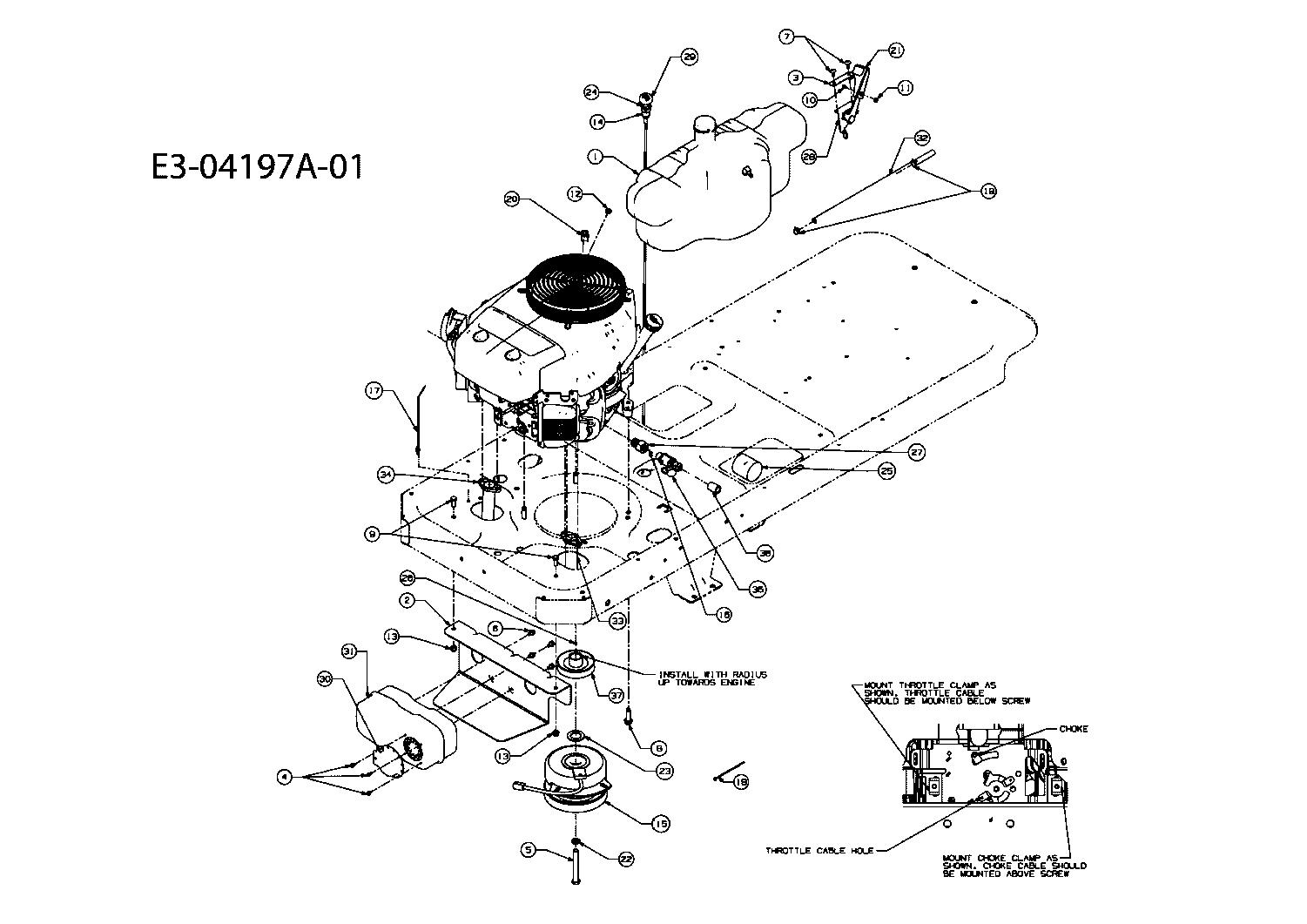

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011089

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 651-04209 TANK ASM:FUEL 3,5 GAL:MONO LY £144.64 Add
002 703-05441A EXHAUST BRACKET £75.56 Add
003 703-06607 PLATE THROTTLE CONTROL N/A POA
004 710-0227 SCR:AB:#8-18:0.500:HXINDWH £3.07 Add
005 710-04379A SCREW £13.79 Add
006 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
007 710-1017 TAP SCREW £2.97 Add
008 710-1315 SCR TT 3/8-16 1.250 HXINDWSH S £5.70 Add
009 710-3008 HEX BOLT £3.03 Add
010 710-3217 SCR:MACH:#8-32:0.375:TRUSPHI £3.33 Add
011 712-0142 NUT:HEX:#8-32:GRA £3.24 Add
012 712-0271 NUT:SEMS:1/4-20 £3.03 Add
013 712-0429 NUT HEX.INS L NUT £4.92 Add
014 712-3005 NUT:FLGLK:3/8-16:GR5 £3.49 Add
015 717-1774C CLUTCH ELEC PTO £613.99 Add
016 721-0331 SLNT:PIPE:PST 592 LOCTITE N/A POA
017 726-0154 TIE:CABLE:PUSH MOUNT 7.5 LG £4.80 Add
018 726-0197 TIE:CBL:PANDUIT SST-1M £4.11 Add
019 726-0205 HOSE CLAMP 1/2 INCH DIA. £3.44 Add
020 726-0272 Clamp £2.98 Add
021 731-04914 KNOB:THROTTLE CONTROL £34.92 Add
022 736-0171 WASHER £2.93 Add
023 736-0277 WASH:FLAT:1.031 x 1.620 x.095 £9.72 Add
024 736-0300 WASHER £2.81 Add
025 737-0169 MOTOR OIL SAE 30, SD,SE & N/A POA
026 737-0288 NO LONGER AVAILABLE N/A POA
027 737-04138 FTG:1.0 HEX x M20 METRIC THD £27.42 Add
028 746-04066 THROTTLE CABLE £61.98 Add
029 746-04214 CABLE-CHOKE 61.0 LG £48.63 Add
030 751-0564B DEFLECTOR:MUFFLER £15.24 Add
031 751-0616B MFLR:DUAL INLET £139.86 Add
032 751-10349 HOSE:FUEL:LOW PERMEATION £72.63 Add
033 751-10355 PIPE-EXHAUST RH £93.35 Add
034 751-10356 EXHAUST TUBE L.H. £89.42 Add
035 751-10517A OIL DRAIN £38.87 Add
036 751-3141 OBSOLETE N/A
037 756-0978B PULLEY ENGINE ELECT. PTO £83.07 Add
038 751-12428 FUEL CAP VENTED £37.96 Add
039 751-10442 INTAKE TUBE £27.23 Add
040 735-0149 BUSHING £9.50 Add
